Edelbrock Edelbrock 182052 Fuel Pump; Electric; Quiet-Flo; Carbureted; 120Gph; 3/8In. In; 3/8In. Out; 120 G

Name: Edelbrock Edelbrock 182052 Fuel Pump; Electric; Quiet-Flo; Carbureted; 120Gph; 3/8In. In; 3/8In. Out; 120 G
Brand: Edelbrock
SKU: EK-51-455103-1

Item EK-51-455103-1

Eckler's no longer carries the Edelbrock Edelbrock 182052 Fuel Pump; Electric; Quiet-Flo; Carbureted; 120Gph; 3/8In. In; 3/8In. Out; 120 G. Please check out 1966-1977 Ford Bronco Engine for an updated selection.

1 Reviews of Edelbrock

Shop Owners Save More! Sign up for our dealer program

Join For FREE

Product Information

Features, Description, Q&A

Features

Part Type Electric Fuel Pump
Application Universal
CFM Rating 120 Gph
Gasket Or Seal Not Included
Mounting Bracket Included
Pump Design In-Line Electric Fuel Pump
Pump Type Electric
Wiring Harness Not Included
Fuel Sending Unit Not Included
Negative Ground Yes
Strainer Not Included
Seal And Lock Ring Not Included
Terminal Type Lead Wire
Outlet Thread Diameter 0.375 Inch
Wire Quantity 2
Voltage 12 Vdc
Fuel Pump Inlet Type NPT
Warranty 12 Months
Inlet Fitting Thread Size 0.375 Inch
Inlet Thread Diameter 0.375 Inch
Inlet Type NPT
Internal Or External External
Outlet Fitting Thread Size 0.375 Inch
Outlet Quantity 1
Outlet Type NPT
Regulator Not Included
Universal Or Specific Fit Universal

Description

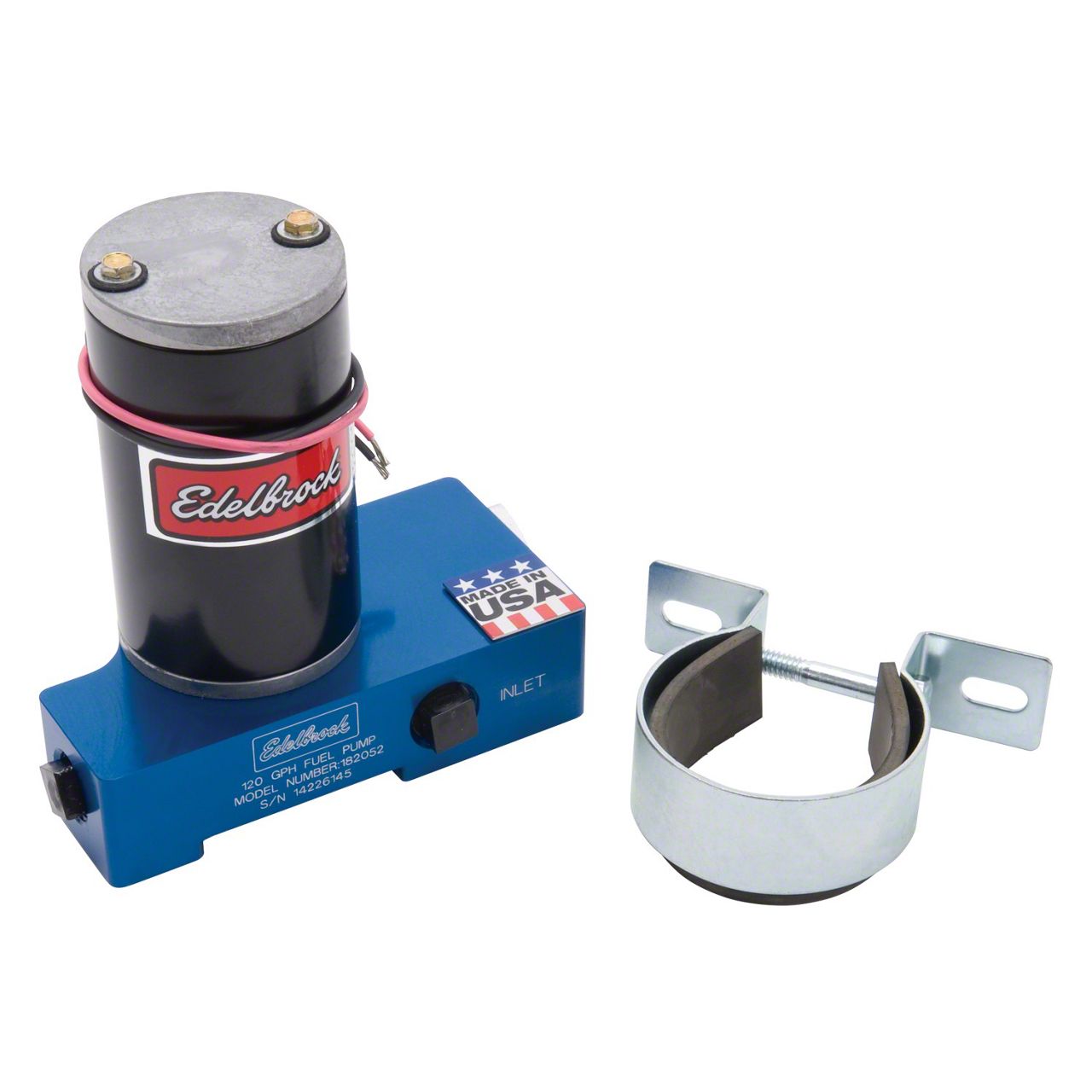

Electric Fuel Pump. The Edelbrock 182052 Fuel Pump is an electric, quiet-flow pump rated at 120 gallons per hour, designed for carbureted fuel systems. It efficiently supplies fuel suitable for vehicles with up to 480+ horsepower, ensuring consistent engine power and reliability in a compact, easy-to-install package.

Construction and Appearance. This pump features a blue anodized aluminum housing that offers durability and strength with an appealing finish. The internal carbon vanes and composite rotor enhance durability and promote quiet operation, reducing noise levels by 4 to 14 decibels compared to competitors operating at the same pressure.

Installation. Installation is straightforward with the included mounting bracket. The pump comes preset to 6.5 psi, eliminating the need for an additional regulator. While a wiring harness is not included, the pump uses two lead wires and NPT threaded inlet and outlet fittings to allow a simple, direct connection without drilling.

Warranty. This product is backed by a 12-month warranty for added peace of mind.
