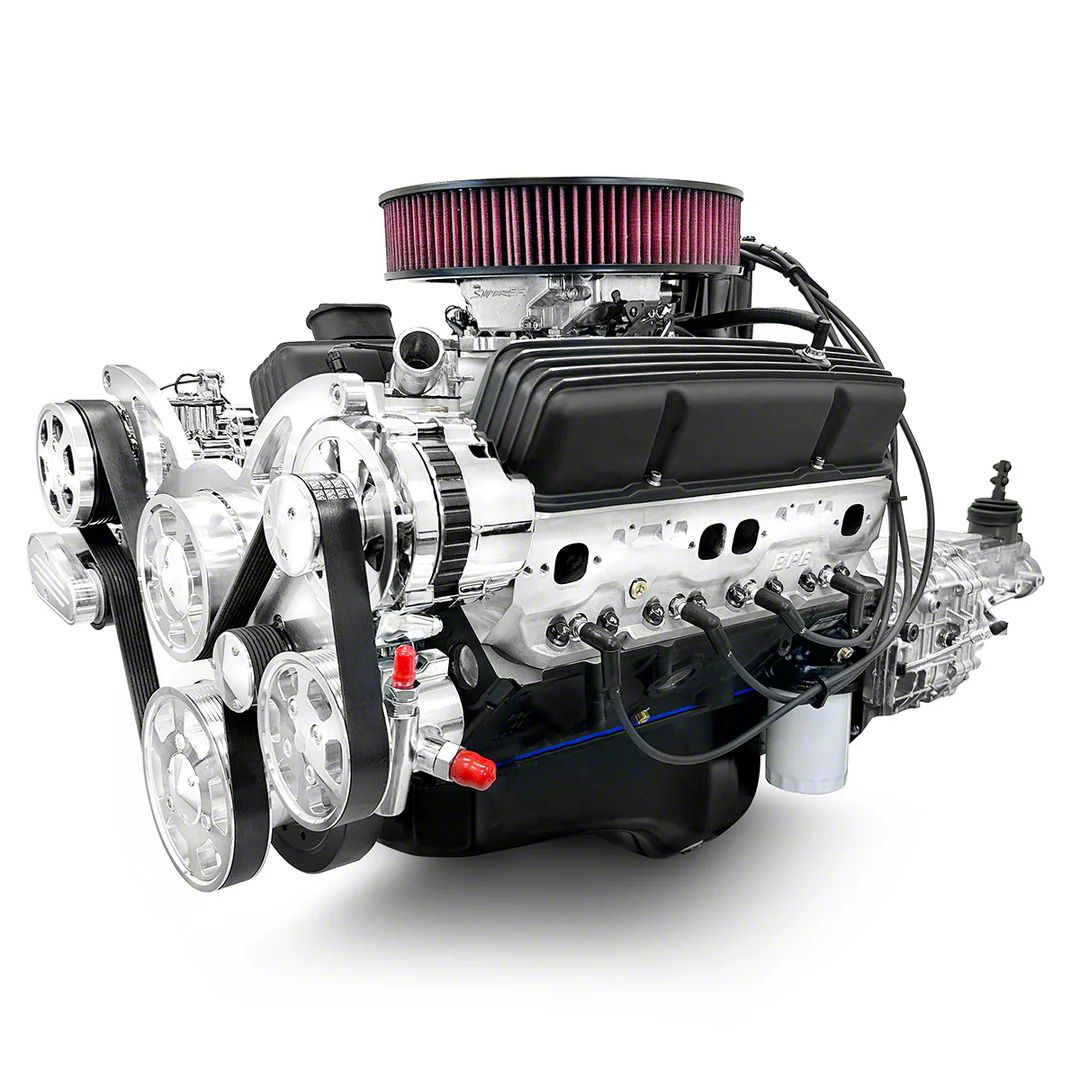

BluePrint Engines Standard Edition Builder Series Small Block Chevy 400 C.I. 500 HP Carbureted Crate Engine and TKX Manual Transmission with Polished Pulley Kit

Item U60833-EK
Product Image
New
Our Price

$17,899.00

Military, Medical & First Responders $894.95 Available in Eckler's Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A

      Features

      • Air Cleaner Included: Yes
      • Block Description: BluePrint Engines Cast Iron Block - 4 Bolt Main - 4.125" Bore
      • Cam: Hydraulic Roller - .553 Intake / .576 Exhaust Lift - 236 Intake / 242 Exhaust Duration [email protected] LSA
      • Carb/Fuel Injection Included: Yes
      • Compression Ratio: 10.3:1
      • Crankshaft Vendor: BluePrint Engines
      • Cylinder Head Vendor: BluePrint Engines
      • Cylinder Heads Included: Yes
      • Cylinder Heads: Aluminum Cylinder Heads
      • Distributor Included: Yes
      • Distributor Vendor: BluePrint Pro Billet
      • Engine Balance: Externally Balanced
      • Firing Order: 1,8,4,3,6,5,7,2
      • Flexplate/Flywheel Included: Yes
      • Fuel Delivery Type: 850cfm Double Pumper Carburetor w/ Manual Choke - Carbureted
      • Fuel Delivery Vendor: Holley
      • Fuel Pump Included: Yes
      • Harmonic Balancer Included: Yes
      • Horsepower: 500
      • Intake Manifold Included: Yes
      • Intake Manifold Type: Dual Plane, Satin Aluminum
      • Intake Manifold Vendor: BluePrint Engines
      • Oil Pan Included: Yes-Rear Sump
      • Pistons: Forged
      • Prop 65 Y/N Flag: Yes
      • Pulley Kit Included: Yes - Polished - Reverse Rotation Short Water Pump, Type II Power Steering Pump, Remote Power Steering Pump Reservoir, 140amp 1-wire Alternator, 7B10 Peanut Style Air Conditioning Compressor.
      • Quantity: EA
      • Rear Main Seal Style: 1 Piece
      • Recommended Flexplate/Flywheel: BPP460265
      • Recommended Harmonic Balancer: BPP350
      • Recommended Octane Fuel: 91+ Octane
      • Recommended Spark Plug Gap: .035 in.
      • Recommended Spark Plug: BPP7938 NGK 7938 BKR5E
      • Recommended Stall Converter: 2400+ RPM
      • Rotating Assembly: Forged Crank - 3.750 in. Stroke and 5.700 in. Rods
      • Spark Plug Wires Included: Yes
      • Spark Plugs Included: Yes
      • Timing Cover Included: Yes
      • Timing Requirements: Initial Timing 10-16 - Total Timing 32-34
      • Title: BluePrint Engines GM Small Block Compatible 400 C.I. Standard Edition - TKX Manual Transmission - Carbureted - - Polished Pulley Kit
      • Torque: 500
      • Transmission Model: TKX
      • Transmission Type: Manual
      • Valve Covers Included: Yes
      • Water Pump Included: Yes

      Description

      BluePrint Engines 400 c.i. GM Compatible Builder Series - Standard Edition - Carbureted - TKX Manual Transmission - Polished Pulley Kit. Includes 30-month / 50,000 Mile Warranty & Dyno Tested

      BluePrint Engines B400KTKX

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Questions & Answers

      No questions about this product yet. Ask the First Question
