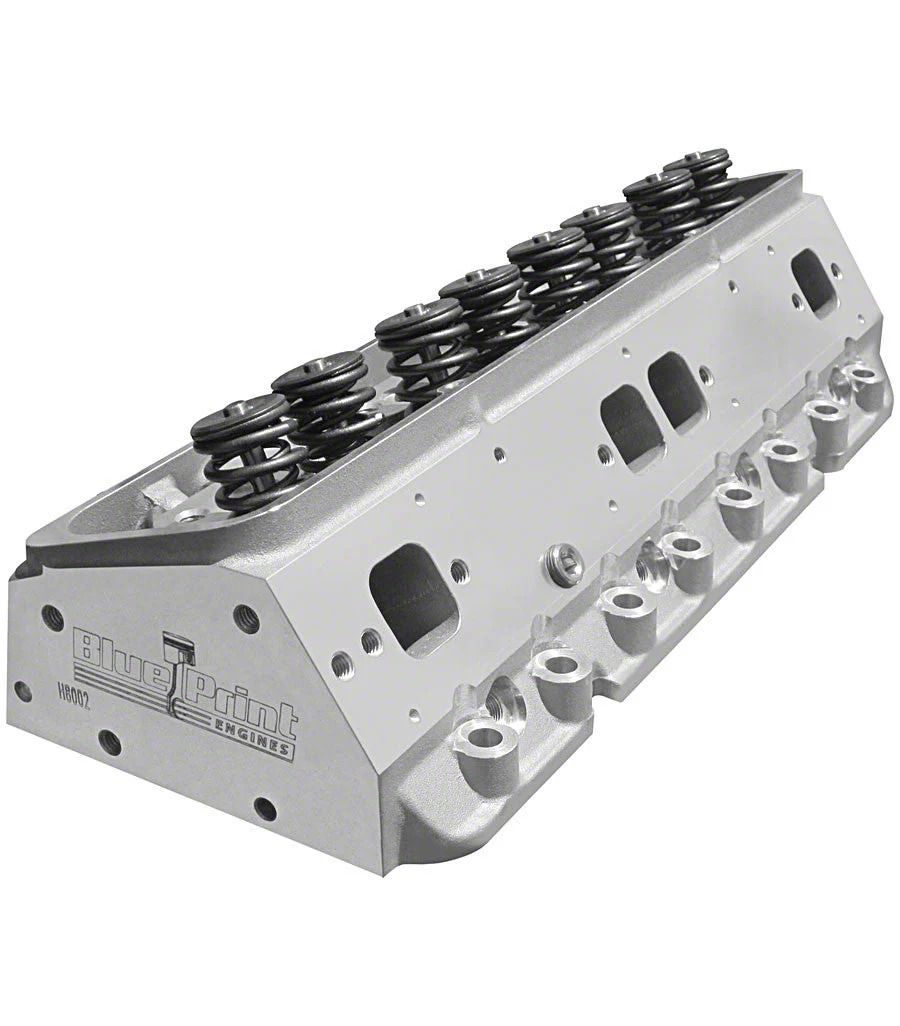

BluePrint Engines Small Block Chevy Aluminum Assembled Cylinder Heads; 195 CC

Item U60976-EK
Product Image
Our Price

$1,599.00

Military, Medical & First Responders $79.95 Available in Eckler's Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A

      Features

      • Accessory Bolt Holes Drilled:: Yes, 3/8 -16 in.
      • Camshaft Style:: Hydraulic Roller
      • CNC-Machined Combustion Chamber:: No
      • CNC-Machined Intake Runner:: No
      • Combustion Chamber Volume (cc):: 64cc
      • Cylinder Head Color:: Natural
      • Cylinder Head Material:: Aluminum
      • Cylinder Head Style:: Assembled
      • Damper Spring Included:: Yes
      • Exhaust Port Location:: Raised .500
      • Exhaust Port Shape:: Square
      • Exhaust Runner Volume (cc):: 75cc
      • Exhaust Valve Angle:: 23
      • Exhaust Valve Diameter (in.):: 1.600 in.
      • Exhaust Valves Included:: Yes
      • Guide plate Pushrod Size:: 5/16 in.
      • Guide plates Included:: Yes
      • Heat Crossover:: No
      • Intake Port Location:: Standard
      • Intake Port Shape:: Rectangular
      • Intake Runner Volume (cc):: 195cc
      • Intake Valve Angle:: 23
      • Intake Valve Diameter (in.):: 2.020 in.
      • Intake Valves Included:: Yes
      • Lock Style:: 7 degree
      • Locks Included:: Yes
      • Machined for O-Ring:: No
      • Manufacturer's Part Number:: H8002K
      • Maximum Valve Lift (in.):: 0.575 in.
      • Notes:: Uses 3/4 in. reach gasket seat spark plug. Heads are drilled to accept both early style (12 bolt) and late style (8 bolt/Vortec) intake manifolds.
      • Number of Springs Per Valve:: Dual
      • Oiling Style:: Through pushrod
      • Outside Diameter of Outer Spring (in.):: 1.437 in.
      • Prop 65 Y/N Flag: Yes
      • Quantity: Sold as a pair.
      • Retainer Material:: Chromoly steel
      • Retainers Included:: Yes
      • Rocker Arm Nut Thread Size:: 7/16 in. x 20
      • Rocker Arm Nuts Included:: No
      • Rocker Arm Studs Included:: Yes
      • Rocker Arms Included:: No
      • Spark Plug Style:: Straight
      • Steam Holes Drilled:: No
      • Title: SB Chevy Aluminum Cylinder Head - 195cc - Assembled (Sold as a Pair)
      • Valve Cover Mounting Style:: Perimeter bolt
      • Valve Guide Material:: Manganese bronze
      • Valve Guides Included:: Yes
      • Valve Seat Machine Style:: 3-angle
      • Valve Seat Material:: Chrome nickel
      • Valve Seats Machined:: Yes
      • Valve Springs Included:: Yes
      • Valve Stem Seal Style:: Viton┬« Fluoroelastomer
      • Valve Stem Seals Included:: Yes

      Description

      SB Chevy Aluminum Cylinder Head 195cc Assembled Sold as a Pair

      BluePrint Engines H8002K
