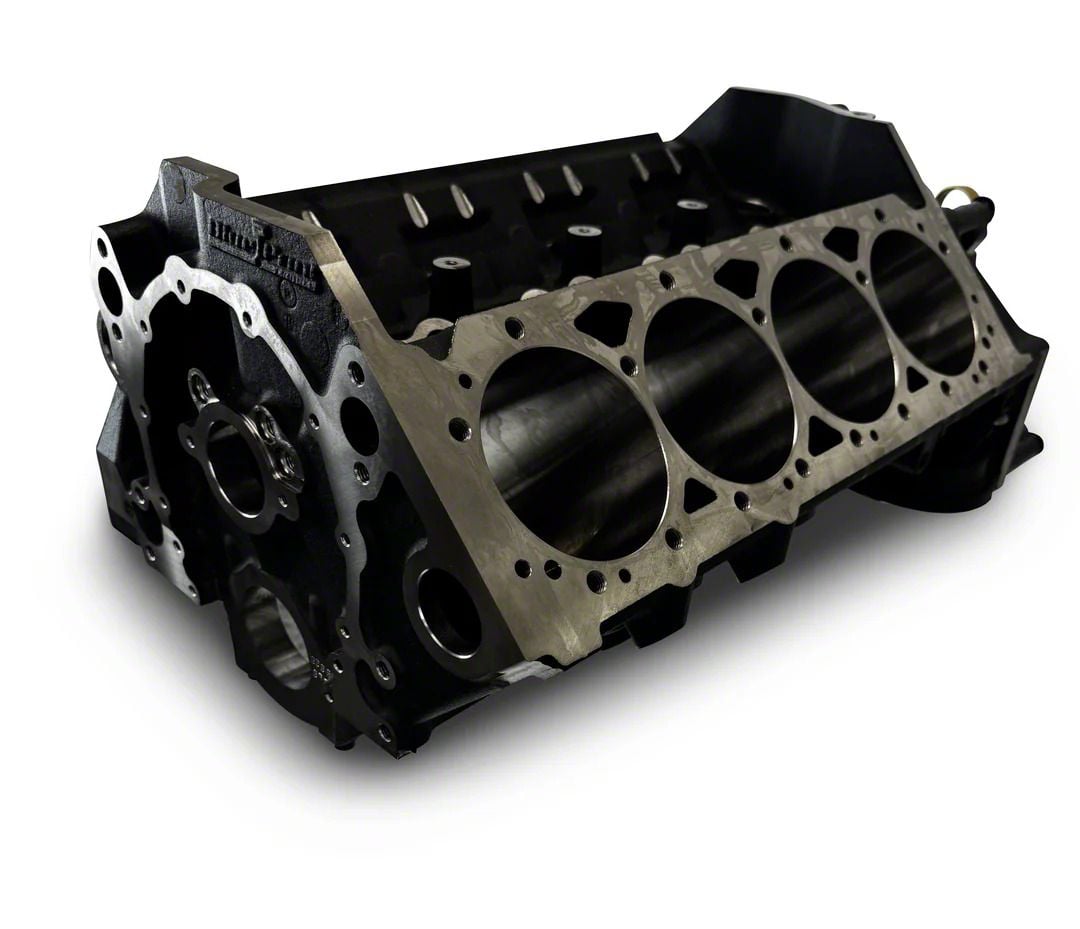

BluePrint Engines Small Block Chevy 454 C.I. Bare Engine Block; 9.025-Inch Deck Height x 4.125-Inch Cylinder Bore; 400 Main; Cast Main Bearing Caps

Item U60757-EK
Product Image
New
Our Price

$2,299.99

Military, Medical & First Responders $115.00 Available in Eckler's Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A

      Features

      • Arp Main Stud Kit P/N:: TBD
      • Cam Bearing Bore Id: 2.000"+/- .001"
      • Cam Bearings: Durabond GMP-8
      • Cam Drive / Timing Set: OEM equivalent
      • Cam Retaining Plate: OEM
      • Camshaft Position: OEM
      • Cubic Inch (Max): 454
      • Cylinder Bore (Max): 4.250"
      • Cylinder Bore (Rough): 4.114" to 4.116"
      • Cylinder Skirt Length: 5.800" Nominal
      • Cylinder Wall Thickness: .230" Nominal @ Max Bore
      • Deck Height: 9.025" +.005" / -.000"
      • Deck Thickness:: .600" Nominal
      • Freeze / Core Plugs: 1-5/8" x 10
      • Fuel Pump: OEM
      • Head Bolt Threads: 7/16-14 UNC
      • Lifter Bores: .8437" +/- .0003"
      • Lifter Retainer (If Not Using Tie Bar Lifters): OEM W/Roller Provisions
      • Main Bearing Bore (Line Honed): 400 Main - 2.8400" - 2.8405"
      • Main Bearing Caps: Cast Iron 4-Bolt splayed
      • Main Cap Bolts: 7/16-14 Inner / 3/8-16 splayed
      • Main Fastener Tensile Strength: 180,000 to 210,000 PSI
      • Material (Block): EN-GJL-250 Iron
      • Oil Filter: OEM
      • Oil Pan: OEM
      • Oil Pump: OEM
      • Oil System: Priority Main
      • P1 Main Stud Kit P/N:: TBD
      • Prop 65 Y/N Flag: Yes
      • Quatity: Sold Individually
      • Rear Main Seal: 2 piece
      • Starter: OEM
      • Stroke (Max): Cast in clearance 3.875"
      • Timing Cover: OEM
      • Title: BluePrint Engines Bare Block - 454 c.i. - SBC, 2PC, SIAM, 9.025 x 4.125, 400MAIN, CAST MC
      • Water Jacket Style: Siamese
      • Weight With Main Caps: 170-190lbs

      Description

      BluePrint Engines Bare Block - 454 c.i. - SBC, 2PC, SIAM, 9.025 x 4.125, 400MAIN, CAST MC

      BluePrint Engines BPP12110345
