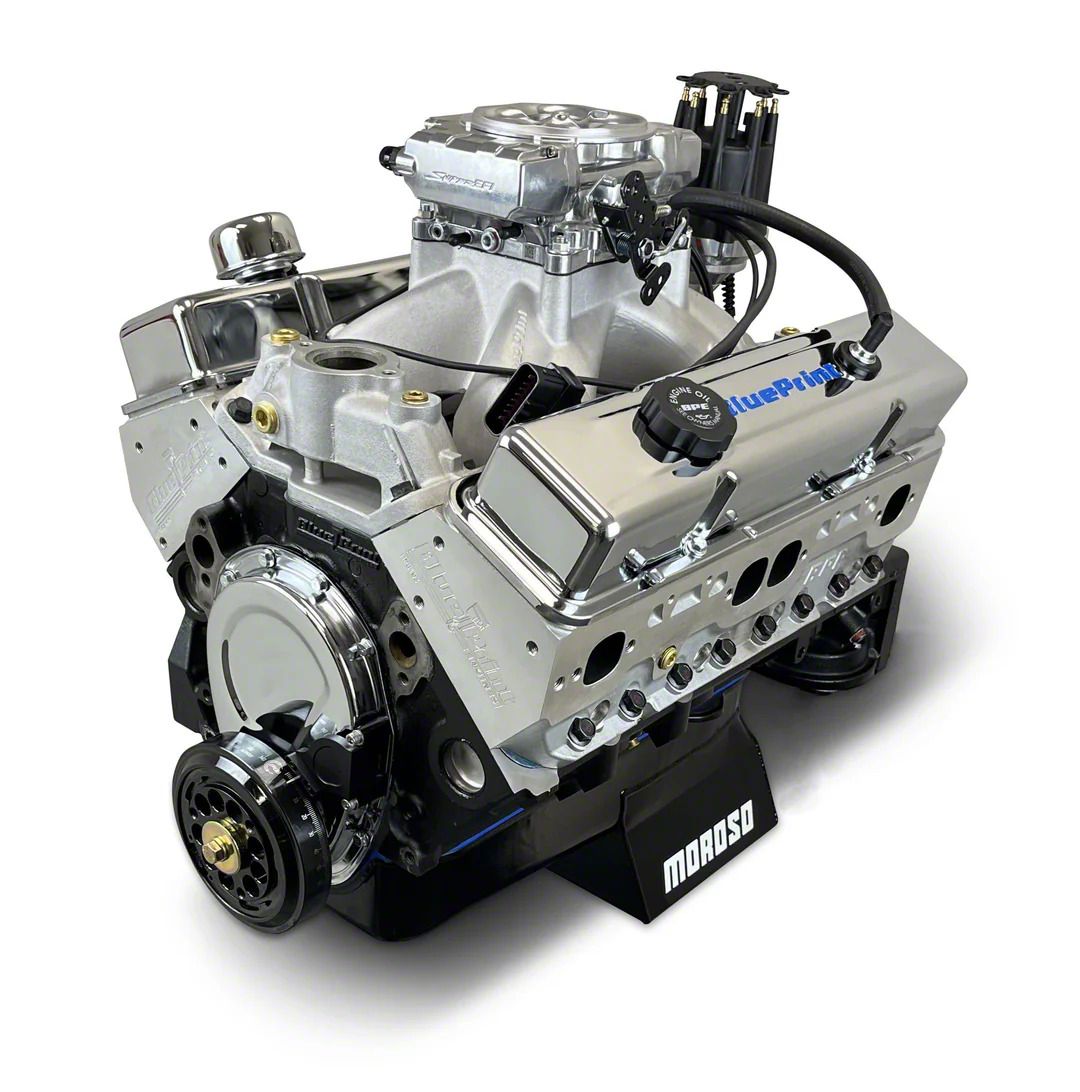

BluePrint Engines Motorsports Small Block Chevy 396 C.I. 530 HP Base Dressed Fuel Injected Crate Engine

Item U60710-EK
Product Image
New
Our Price

$9,399.00

Military, Medical & First Responders $469.95 Available in Eckler's Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A

      Features

      • Air Cleaner Included: No
      • Block Description: BluePrint Engines Cast Iron Block - 4 Bolt Main - 4.000" Bore
      • Cam: Hydraulic Roller - .638 Intake / .622 Exhaust Lift - 251 Intake / 259 Exhaust Duration -@ .050-114 LSA
      • Carb/Fuel Injection Included: Yes
      • Compression Ratio: 10.4:1
      • Crankshaft Vendor: BluePrint Engines
      • Cylinder Head Vendor: BluePrint Engines
      • Cylinder Heads Included: Yes
      • Cylinder Heads: Aluminum Cylinder Heads
      • Distributor Included: Yes
      • Distributor Vendor: BluePrint Engines
      • Engine Balance: Internally Balanced Front - Externally Balanced Rear
      • Firing Order: 1,8,4,3,6,5,7,2
      • Flexplate/Flywheel Included: No
      • Fuel Delivery Type: Holley Sniper 2 EFI - Self-Tuning Kit - Chrome
      • Fuel Delivery Vendor: Holley
      • Harmonic Balancer Included: No
      • Horsepower: 530
      • Intake Manifold Included: Yes
      • Intake Manifold Type: Single Plane, Satin Aluminum
      • Intake Manifold Vendor: BluePrint Engines
      • Notes: BluePrint Motorsports engines are built for maximum performance and are intended for extreme duty applications. Because of the high-stress nature of their use, these engines are sold without any warranty, expressed, or implied. This engine features a true 4-inch bore, which mathematically yields 389 CID with a 3.875-inch stroke.
      • Oil Pan Included: Yes-Rear Sump
      • Pistons: Forged 4032 High RPM Indurance
      • Prop 65 Y/N Flag: Yes
      • Pulley Kit Included: No
      • Quantity: EA
      • Rear Main Seal Style: 1 Piece
      • Recommended Flexplate/Flywheel: BPP871006 - BPP399173 - BPP300116
      • Recommended Harmonic Balancer: BPP350
      • Recommended Octane Fuel: 100+ Octane
      • Recommended Spark Plug Gap: .035 in.
      • Recommended Spark Plug: BPP7938 - NGK 7938 BKR5E
      • Recommended Stall Converter: 2000-2400 RPM
      • Rotating Assembly: Forged Crank - 3.875 in. Stroke and 6 in. Rods
      • Spark Plug Wires Included: No
      • Spark Plugs Included: No
      • Timing Cover Included: Yes
      • Timing Requirements: Initial Timing 10-16 - Total Timing 32-34
      • Title: BluePrint Motorsports GM Small Block Compatible 396 c.i. Engine - 530 Horsepower - Base Dressed - Fuel Injected
      • Torque: 480
      • Valve Covers Included: Yes
      • Water Pump Included: No

      Description

      BluePrint Motorsports GM Small Block Compatible 396 c.i. Engine - 530 Horsepower - Base Dressed - Fuel Injected

      BluePrint Engines BPMS396CTF
