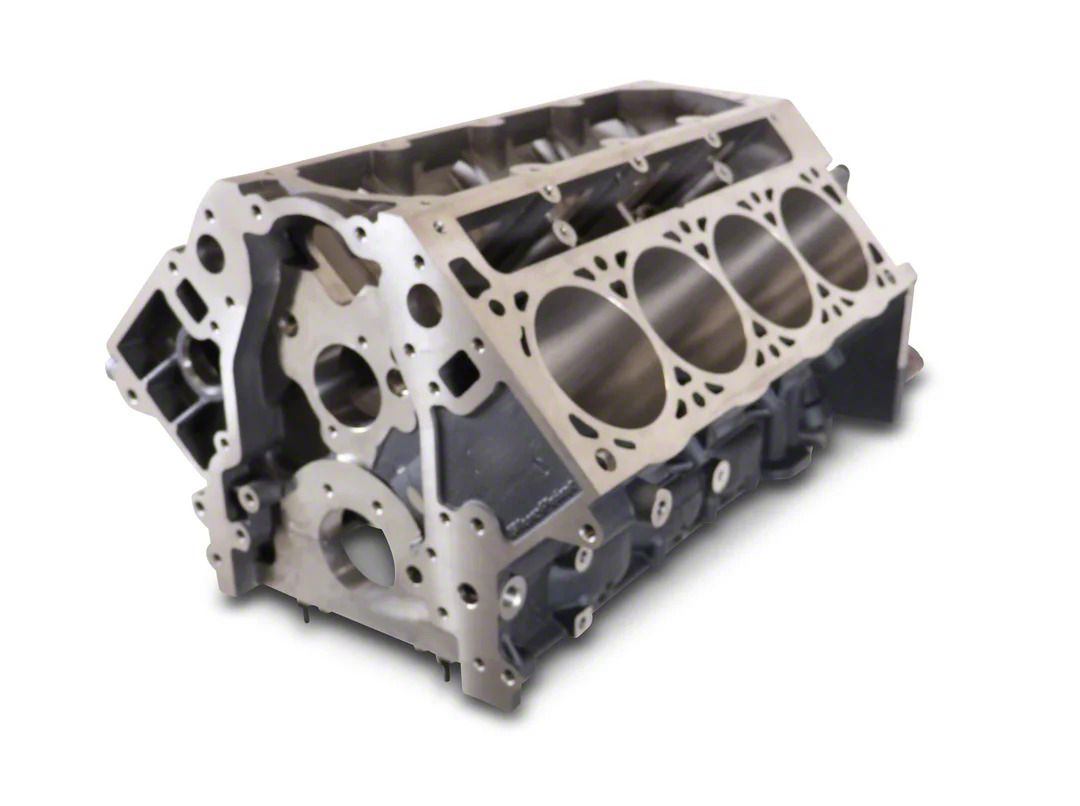

BluePrint Engines GM LS 468 C.I. Bare Engine Block; 9.240-Inch Deck Height x 4.000-Inch Cylinder Bore; Cast Main Bearing Caps

Item U60699-EK
Product Image
New
Our Price

$3,999.99

Military, Medical & First Responders $200.00 Available in Eckler's Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A

      Features

      • Afm/Dod Compatiable: No
      • Arp Main Stud Kit P/N: TBD
      • Cam Bearing Bore Id: #1 & 5: 2.3482┬▒.0005", #2 & 4: 2.3285┬▒.0005", # 3: 2.3088┬▒.0005" w/ stock avaialble to bore up to 2.362" (60mm)
      • Cam Bearings: Dura-Bond CH-25
      • Cam Drive / Timing Set: Accepts OEM style
      • Cam Retaining Plate: BluePrint Engines P/N:18111370
      • Camshaft Position: Stock OEM position - 4.885" to crank
      • Cubic Inch (Max): 468 in3
      • Cylinder Bore (Max): 4.185"
      • Cylinder Bore (Rough): 3.989" to 3.991"
      • Cylinder Skirt Length: 5.750"
      • Cylinder Wall Thickness: .210" @ 4.185" bore
      • Deck Height: 9.240" +.005/-.000"
      • Deck Thickness:: 0.600"
      • Freeze / Core Plugs: 1 5/8" dia, BluePrint Engines p/n: 10110016 (Qty 8)
      • Head Bolt/Stud Threads: M11 x 2.0 2.36" deep (+M8 uppers)
      • Head Bolt/Studs: 4 per cylinder
      • Lifter Bores: .8437 ┬▒.0005"
      • Lifter Retainer (If Not Using Tie Bar Lifters): BPE and LSX
      • Main Bearing Bore (Line Honed): 2.7509 / 2.7514"
      • Main Bearing Caps: Cast Iron, OEM style, 6 bolts per cap
      • Main Cap Bolts: Inner: M10 x 102mm, Outer: M10 x 84mm (stud), Skirt: M8 x 24mm
      • Main Fastener Tensile Strength: 180,000 to 210,000 PSI
      • Material (Block): EN-GJL-250 Iron
      • Oil Filter: OEM (in oil pan)
      • Oil Gallery Plug / Barbell / Dogbone (Rear): OEM
      • Oil Pan: OEM
      • Oil Pump: OEM
      • Oil System: Priority main oiling system w/ center crossover
      • P1 Main Stude Kit P/N: TBD
      • Piston Oilers / Squirters: No
      • Prop 65 Y/N Flag: Yes
      • Quatity: Sold Individually
      • Rear Main Seal: Accepts OEM style rear cover
      • Starter: OEM, Passenger Side Only
      • Stroke (Max): 4.250"
      • Timing Cover: OEM
      • Title: BluePrint Engines Bare Block - 468 c.i. - LS, SIAM, 9.240 x 4.000, CAST MC, 4 HD BLT
      • Valley Cover: OEM
      • Weight With Main Caps: 220-240lbs

      Description

      BluePrint Engines Bare Block - 468 c.i. - LS, SIAM, 9.240 x 4.000, CAST MC, 4 HD BLT

      BluePrint Engines BPP12110356
