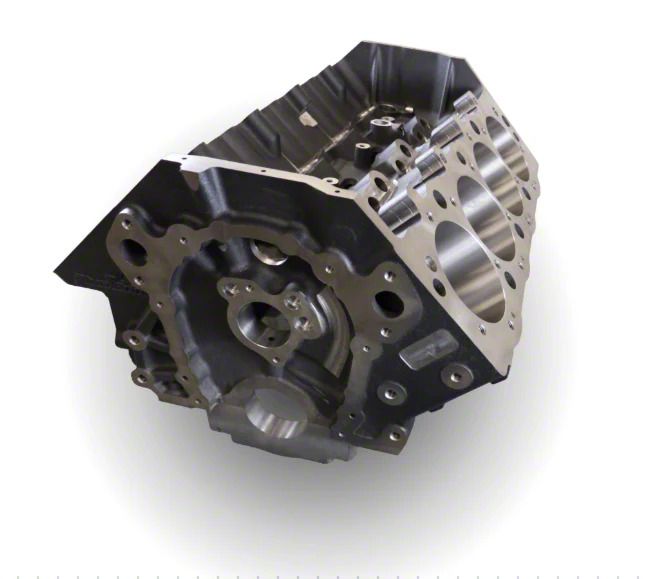

BluePrint Engines Big Block Chevy 632 C.I. Bare Engine Block; 10.200-Inch Deck Height x 4.600-Inch Cylinder Bore; Billet Main Bearing Caps

Item U60694-EK
Product Image
New
Our Price

$4,799.99

Military, Medical & First Responders $240.00 Available in Eckler's Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A

      Features

      • Arp Main Stud Kit P/N: TBD
      • Cam Bearing Bore Id: 2.120"+/- .001"
      • Cam Bearings: Durabond GM-12
      • Cam Drive / Timing Set: OEM /Double Roller
      • Cam Retaining Plate: OEM
      • Camshaft Position: OEM
      • Cubic Inch (Max): 632
      • Cylinder Bore (Max): 4.630"
      • Cylinder Bore (Rough): 4.589" to 4.591"
      • Cylinder Skirt Length: 6.700" Nominal
      • Cylinder Wall Thickness: .310" Nominal @ Max Bore
      • Deck Height: 10.200" +.005" / -.000"
      • Deck Thickness:: .710" Nominal
      • Freeze / Core Plugs: 1-5/8" x 8
      • Head Bolt/Stud Threads: 7/16-14 UNC
      • Lifter Bores: .8437" +/- .0003"
      • Lifter Retainer (If Not Using Tie Bar Lifters): OEM W/Roller Provisions
      • Main Bearing Bore (Line Honed): 2.937" - 2.938"
      • Main Bearing Caps: Billet Steel
      • Main Cap Bolts: 1/2"-13
      • Main Fastener Tensile Strength: 180,000 to 210,000 PSI
      • Material (Block): EN-GJL-250 Iron
      • Oil Filter: OEM
      • Oil Pan: OEM (GEN IV)
      • Oil Pump: OEM
      • Oil System: Priority Main
      • P1 Main Stude Kit P/N: TBD
      • Prop 65 Y/N Flag: Yes
      • Quantity: Sold Individually
      • Rear Main Seal: 2 piece Seal (OEM GEN IV)
      • Starter: OEM
      • Stroke (Max): 4.750"
      • Timing Cover: OEM GEN IV
      • Title: BluePrint Engines Bare Block - 632 c.i. - BBC, 2PC, SIAM, 10.200 x 4.600, BILLET MC
      • Weight With Main Caps: 250-270lbs

      Description

      BluePrint Engines Bare Block - 632 c.i. - BBC, 2PC, SIAM, 10.200 x 4.600, BILLET MC

      BluePrint Engines BPP12110331
