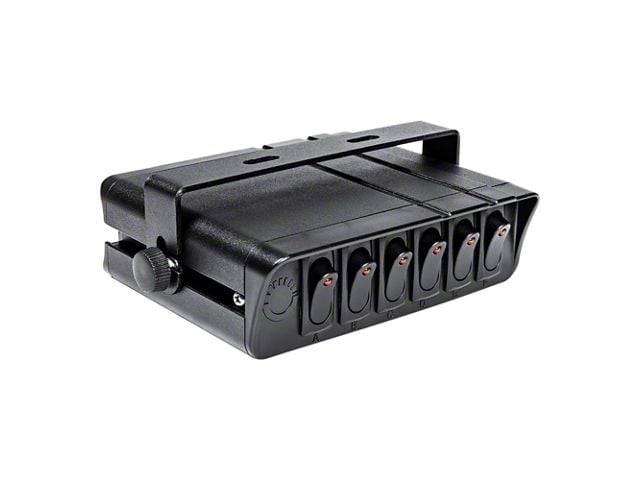

True Mods 6-Way SPST Switch Box; 40 Amp (Universal; Some Adaptation May Be Required)

Item EK-75-921252
Product Image
Eckler's no longer carries the True Mods 6-Way SPST Switch Box; 40 Amp (Universal; Some Adaptation May Be Required). Please check out 1967-1969 Pontiac Firebird Electricalfor an updated selection.
Shop Owners Save More! Sign up for our dealer program
Join For FREE

    Product Information

    Features, Description, Q&A

    Features

    • Max 15A Per Switch
    • Total Box Max 40A (2 x 20A Circuit)
    • Thick Gauge Color-Coded Wires
    • Durable Aluminum Housing
    • Low Profile Mounting Bracket
    • One Ground Wire
    • One Power Wire Per Circuit
    • Backlit Switches
    • Red Light Color
    • Connector Type Pigtail
    • Bracket-Mount With Fasteners
    • Operating Temperature -20°C To +85°C
    • IP50 Protection Rating
    • Terminal Material Tinned Copper
    • Six Prongs
    • Single Throw Type
    • Wire Lead Terminal Type
    • Rocker Actuator Made Of Nylon
    • Has Indicator Light
    • Max Switching DC Voltage 12V
    • Dielectric Strength AC 1500V For 1 Minute
    • Contact Resistance Less Than 50 Milliohm
    • Insulation Resistance Greater Than 100 Mohm At 500V DC
    • Includes Wire Labels, Pack Of Bolts, Pack Of Screws, And Mounting Bracket
    • One Year Warranty
    • Fits Universal; Some Adaptation May Be Required

    Description

    • Max 15A Per Switch
    • Total Box Max 40A (2 x 20A/Circuit)
    • Thick Gauge Color-Coded Wires
    • Durable Aluminum Housing
    • Low Profile Mounting Bracket
