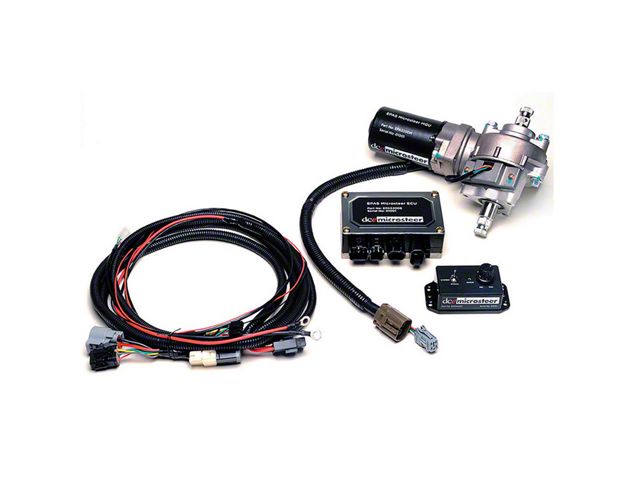

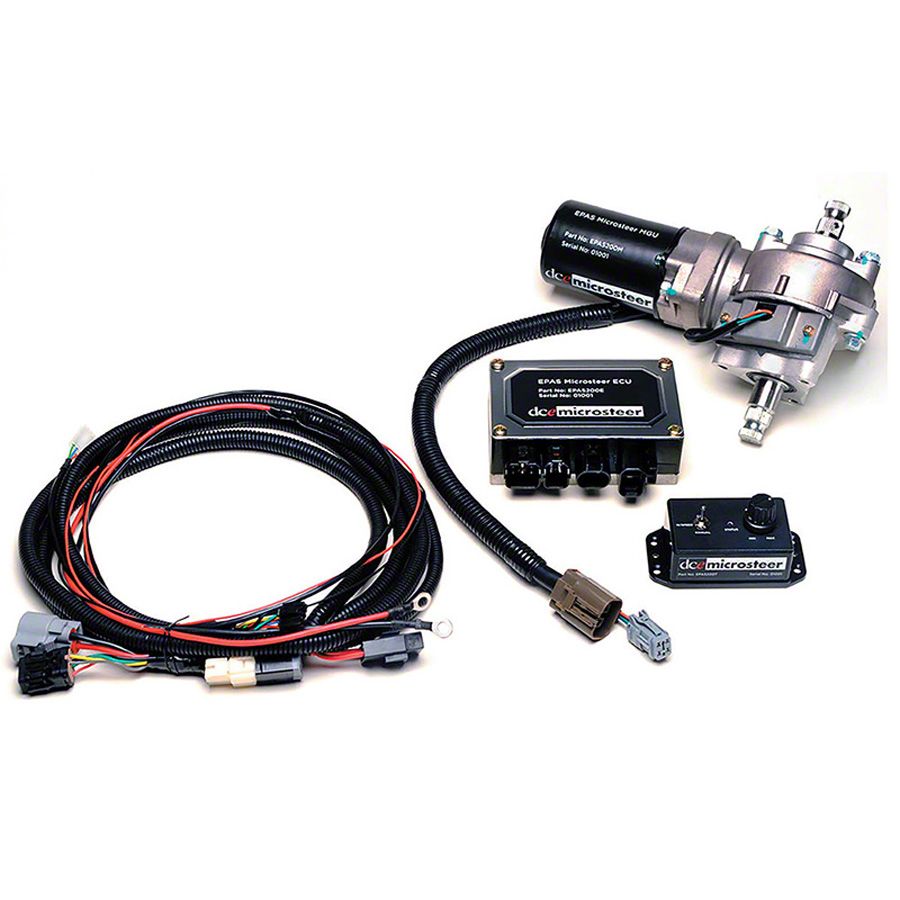

Flaming River Microsteer Electric Power Steering Conversion Kit (Universal; Some Adaptation May Be Required)
Item EK-42-858559-1
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- Operating Voltage Nominal 13.8V DC _x000D_
- Maximum Current Draw 30 Amps _x000D_
- Average Current Draw Less Than 2 Amps _x000D_
- System Weight MGU & ECU 9.70lbs/4.4kg _x000D_
- Maximum Torque Output 32Nm/24lb.ft _x000D_
- IP Rating IP67 _x000D_
- Operating Temperature -20 To 120C/-4 To 248F _x000D_
- Motor Rated Power 220 Watts _x000D_
- MGU Spline Pattern 11/16"-36 Both Ends _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
Description
The Flaming River Microsteer Universal Electric Power Assisted Steering System can be easily fitted to virtually any vehicle, without the need to change steering rack or fit a hydraulic system where manual steering currently exists. The unique Microsteer Tuning Box allows you to adjust the amount of assistance by using a rotary potentiometer or, if you prefer, you can make the system speed sensitive by connecting a wheel speed signal to the Tuning Box. A mode selection switch on the box allows you to choose your preferred method, manual or wheel speed. If you have no wheel speed sensor on the vehicle, we recommend purchasing a speed sensor, sold separately (Part Number 42-858563).
