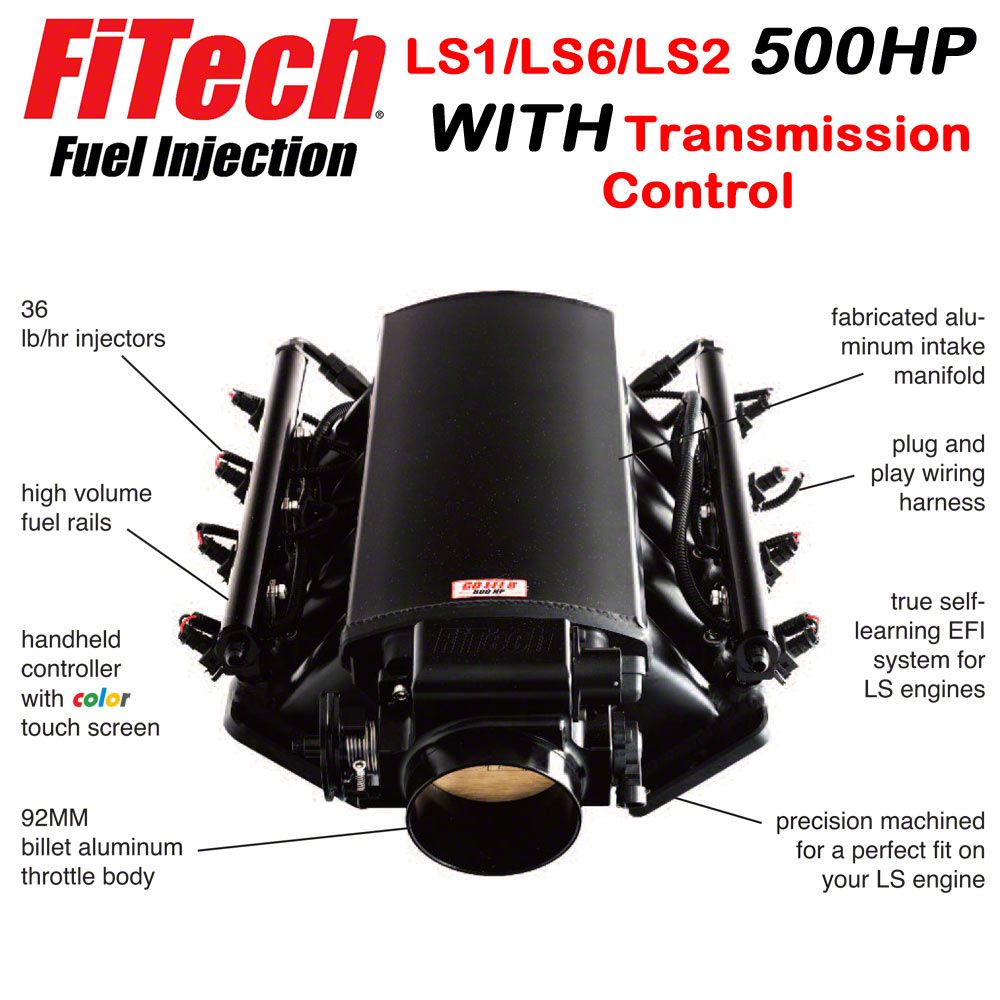

FiTech Fuel Injection Ultimate LS1/LS2/LS6 500HP Intake Manifold Kit with 92mm Throttle Body and Trans Control (Universal; Some Adaptation May Be Required)

Name: FiTech Fuel Injection Ultimate LS1/LS2/LS6 500HP Intake Manifold Kit with 92mm Throttle Body and Trans Control (Universal; Some Adaptation May Be Required)
Brand: FiTech Fuel Injection
SKU: EK-80-389119-1
Price: 2107.00 USD
Availability: InStock

Item EK-80-389119-1

Our Price

-0% $2,107.00 Was $2,107.00

Military, Medical & First Responders $105.35 Available in EK Cash Rewards.
Confirm Eligibility

Choose options to add to cart.

Add to Cart

Save for later

Create a list

Name your new list Add to New List

Saved - View your saved items

We're sorry. We couldn't save this product at this time.

Shop Owners Save More! Sign up for our dealer program

Join For FREE

Product Information

Features, Description, Q&A

Features

Ultimate LS1/LS2/LS6 500HP Kit With Trans Control
Fits Cathedral Port LS1/LS2/LS6 Heads
Suitable For GM 4L60, 4L65, 4L80, And 4L85 Transmissions
Small Block V8 GEN. III/IV LS-Based Chevrolet Street And Performance Engines
Power Band From 1500 To 6500 RPM
Supports Up To 500 Horsepower To The Flywheel
Engine Sizes Covered: 4.8L, 5.3L, 5.7L, 6.0L
6.5 Inches Tall Intake Manifold
92mm High Flow Cable Operated Throttle Body At 7 Degrees
Throttle Body Clearance May Require New Water Pump Bracket
Includes Electronic Transmission Control Features
Self-Learning ECU With Touch Screen Controller
Sequential Fuel And Spark Control With Individual Cylinder Trim
Bosch Wide Band Controlled O2 Sensor
24X And 58X Crank And Cam Compatibility
Supports TPS, IAC Sensor, Tach And Speedometer Outputs
Compatible With Car And Truck Coils
On-The-Fly Programmable Target AFR And Timing
36 lb/hr Flow-Matched Injectors Included
Billet Fuel Rails With AN Fittings And Fuel Crossover
Custom Wire Harness Using Factory Coil Pack Sub Harness
Includes Wide Band O2 Sensor Bung Kit (Clamp Or Weld On)
Intake Manifold Material: Aluminum
Intake Finish: Black Anodized
Throttle Body Material: Cast Aluminum
Throttle Body Finish: Black
Multi-Port Fuel Rails Included
Metering Style: Speed Density (Map-N)
Fuel Types Supported: Alcohol, Gasoline, Methanol, Flex
Transmission Control Suitable For GM Electronically Controlled Automatic Transmissions
Fuel Pump Not Included
Does Not Include Fuel Pressure Regulator
Includes Calibration Module And Wiring Harness
Controller Cable And Windshield Mount Included
Intake Manifold Specifically Fits Cathedral Port LS1/LS2/LS6 Heads - Transmission Control Compatible With Select GM Transmissions

Description

Complete EFI Solution. The FiTech Fuel Injection Ultimate LS1/LS2/LS6 500HP Intake Manifold Kit with 92mm Throttle Body and Trans Control provides a comprehensive electronic fuel injection and transmission management system for LS engine enthusiasts. Designed to simplify installation and tuning, this kit offers a self-learning ECU, throttle body, injectors, and electronic transmission control for GM transmissions, making it ideal for swapping or upgrading LS engines on street or performance vehicles.

Construction and Appearance. The intake manifold is fabricated from 3mm thick aluminum sheet metal, TIG welded for strength and durability, finished with a black anodized coating for corrosion resistance and a sleek look. The 92mm throttle body is cast aluminum with a black finish and positioned at a 7-degree angle to maximize accessory clearance. Billet fuel rails with AN fittings enhance reliability and fuel delivery precision.

Installation. Installation is designed to be straightforward for seasoned mechanics and experienced hot rodders, requiring no drilling. Plug-and-play wiring harnesses and the included sub-harness for the factory coil packs facilitate quick connection to existing components with minimal modification.

Warranty. This kit comes with a three-year limited warranty, providing assurance of quality and durability.

Application. This complete kit fits Cathedral Port LS1/LS2/LS6 heads and is compatible with select GM electronically controlled automatic transmissions such as 4L60, 4L65, 4L80, and 4L85. It supports a wide range of LS engines from 4.8L to 6.0L and is tailored for use in non-emissions-controlled vehicles, making it appropriate for retrofit and performance builds.

FiTech Fuel Injection 70002
