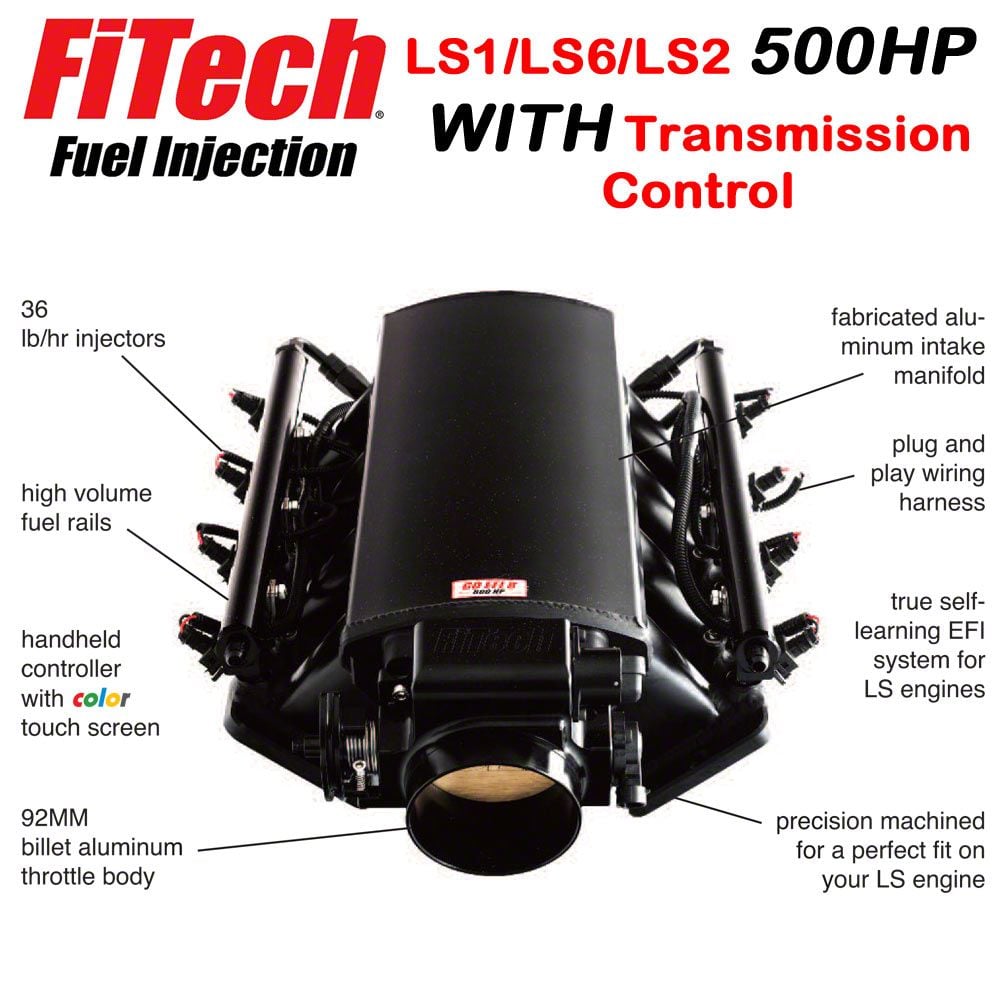

FiTech Fuel Injection Ultimate LS1/LS2/LS6 500HP Intake Manifold Kit with 92mm Throttle Body and Trans Control (Universal; Some Adaptation May Be Required)
Item EK-40-389119-1
Our Price
$2,107.00
Military, Medical & First Responders
$105.35 Available in EK Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- Ultimate LS1/LS2/LS6 500HP Kit With Trans Control
- 92mm High Flow Cable Operated Throttle Body Sitting At 7 Degrees
- Electronic Transmission Control Suitable For 4L60, 4L65, 4L80 Or 4L85 GM Transmissions
- Self-Tuning Induction System For LS Engines
- Fits Cathedral Port LS1/LS2/LS6 Heads
- 1500-6500 RPM Power-band Up To 500 HP To The Flywheel
- Compatible With Small Block V8 GEN. III/IV LS-Based Chevrolet Street And Performance Engines
- Includes 36 Lb/Hr Flow-Matched Injectors
- Fabricated 3mm Thick Aluminum Sheet Metal TIG Welded Intake Manifold
- Billet Fuel Rails With AN Fittings And Fuel Crossover
- Self-Learning ECU With Touch Screen Controller For Easy Setup And Configuration
- Sequential Fuel And Spark Control With Individual Cylinder Trim
- Bosch Wide Band Controlled (Self-Learning)
- Stainless O2 Sensor Bung (Clamp Or Weld On)
- 24X And 58X Crank And Cam Compatible
- Throttle Position Sensor, Idle Air Control Motor, Idle Air Temperature Sensor Included
- Tach Output Driver For Most Tachometers (5V) And Speedometers
- Compatible With Car And Truck Coils
- On The Fly Programmable Target AFR And Timing
- Custom Wire Harness Using Factory Coil Pack Sub Harness
- Includes Hand-Held Controller With Color Touch Screen And Cable
- Includes Windshield Mount For Touch Screen Controller
- Throttle Body Mounting Flange GM LS2 4-Bolt
- Fuel Type Support: Alcohol, Gasoline, Methanol, Flex
- Not CARB Approved For Emission Controlled Vehicles
- Fits Cathedral Port LS1/LS2/LS6 Heads With 4L60, 4L65, 4L80 Or 4L85 GM Transmissions
Description
Complete EFI System. This Ultimate LS1/LS2/LS6 500HP Intake Manifold Kit with 92mm Throttle Body and Transmission Control is a turnkey self-tuning induction system designed to optimize LS-based engines. It includes all necessary components to simplify installation and tuning, making it suitable for both DIY enthusiasts and professional tuners aiming to enhance engine performance. This kit manages fuel injection, ignition timing, and transmission control to deliver responsive and reliable power.
Construction and Appearance. The intake manifold is built from 3mm thick fabricated aluminum sheet metal, TIG welded for strength and durability. It features a low-profile design with a black anodized finish for corrosion resistance and an attractive appearance. The 92mm billet aluminum throttle body is cast and finished in black, ensuring high-flow efficiency and a professional look.
Installation. Installation is designed to be straightforward and does not require drilling, fitting directly to Cathedral Port LS1/LS2/LS6 heads. The included plug-and-play wiring harness and ECU facilitate wiring and setup, enabling faster installation compared to custom EFI systems.
Warranty. This system comes with a three-year limited warranty, providing coverage against defects in materials and workmanship.
Application. Fits Cathedral Port LS1/LS2/LS6 cylinder heads and is compatible with 4L60, 4L65, 4L80, or 4L85 GM transmissions. Designed for LS-based Chevrolet small block V8 GEN III/IV engines producing up to 500 HP. Not approved for emission-controlled vehicles and primarily intended for retrofit into older, non-emission controlled engines.
FiTech Fuel Injection 70002
