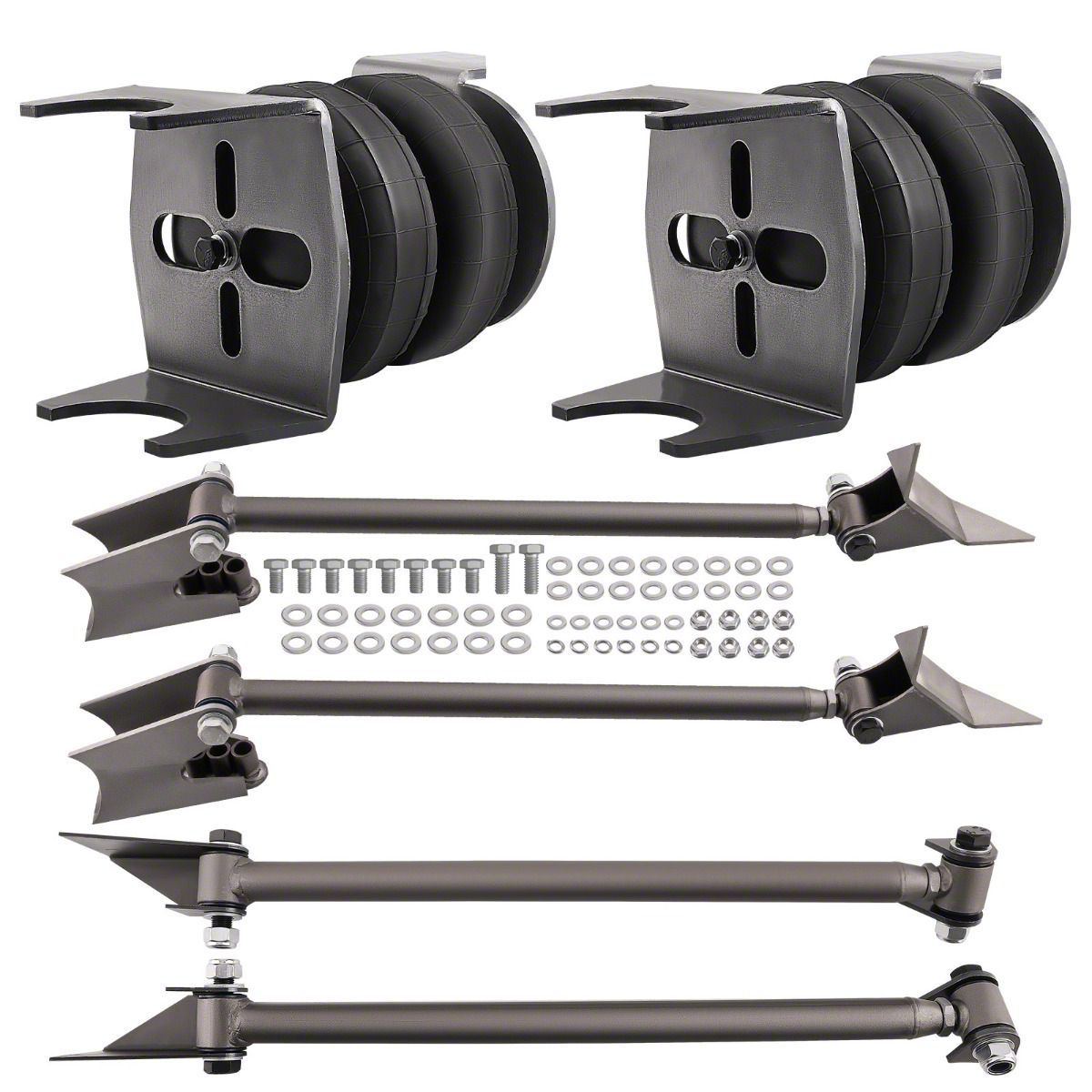

Weld-On Triangulated 4-Link Air Ride Suspension Kit (Universal; Some Adaptation May Be Required)

Item EK-57-917687
Eckler's no longer carries the Weld-On Triangulated 4-Link Air Ride Suspension Kit (Universal; Some Adaptation May Be Required). Please check out Tri-Five Suspension for an updated selection.
Shop Owners Save More! Sign up for our dealer program
Join For FREE

    Product Information

    Features, Description, Q&A

    Features

      _x000D_
    • 4 X Heavy Duty Steel Bars
      • _x000D_
    • 4 X Zinc Plated Steel Rod Ends W/ Urethane Bushings
      • _x000D_
    • 2 X Steel, Weld-On Triangulated Frame Mounts
      • _x000D_
    • 2 X Steel, Weld-On Lower Axle Tube Mounts
      • _x000D_
    • 4 X Steel, Weld-On Center Link Axle Mounts
      • _x000D_
    • 2 X Steel, Weld-On Side Frame Mounts
      • _x000D_
    • 8 X Button Head Bolts With Nyloc Nuts
      • _x000D_
    • 2 X Weld-On Lower Axle Bag Mount
      • _x000D_
    • 2 X Weld-On Upper Frame Bag Mount
      • _x000D_
    • 2x Standard 2500 Single 1/2"npt Port Air Bags
      • _x000D_
    • Dom Tubing Outside Diameter: 1.25"
      • _x000D_
    • Dom Tubing Thick Wall: 0.156"
      • _x000D_
    • All Four Bars: 24.00"
      • _x000D_
    • Center To Center Adjusted All The Way In
      • _x000D_
    • 2500 Lbs Bag Capacity
      • _x000D_
    • Bag Diameter: 6"
      • _x000D_
    • Bag Extended Length: 8"
      • _x000D_
    • Bag Closed Length: 2.75"
      • _x000D_
    • Two Top Mounting Holes: Approx 1-3/4" From Eye To Eye
      • _x000D_
    • Bottom Has One Mounting Hole In Center
      • _x000D_
    • All Mounting Holes Are 3/8"-16 UNC
      • _x000D_
    • Instructions Are Not Included
      • _x000D_
    • Recommended Professional Installation
      • _x000D_
    • Fits Universal; Some Adaptation May Be Required
      • _x000D_

    Description

    High-Performance Suspension Kit. The Weld-On Triangulated 4-Link Air Ride Suspension Kit is designed to upgrade your vehicle's rear suspension for enhanced stability and improved ride quality. It combines heavy-duty steel link bars and premium air bags to provide adjustable support and smooth air ride performance, ideal for vehicles requiring better load handling and driving comfort.

    _x000D__x000D_

    Construction and Appearance. This kit is made from heavy-duty steel components, including zinc-plated rod ends with urethane bushings for durability and corrosion resistance. The link bars use thick-walled DOM tubing, ensuring structural integrity and lasting performance under demanding conditions.

    _x000D__x000D_

    Installation. Installation of this kit requires welding and precise mounting. Due to the nature of weld-on components, professional installation is strongly recommended to ensure safety and proper function.

    _x000D__x000D_

    Application. The kit offers a universal fit for a wide range of vehicles, although some adaptation may be necessary to achieve optimal compatibility with specific frames or axle configurations.
