Paul Horton's Welder Series Parallel Rear Four Link Kit; 3-Inch Axle Brackets (Universal; Some Adaptation May Be Required)

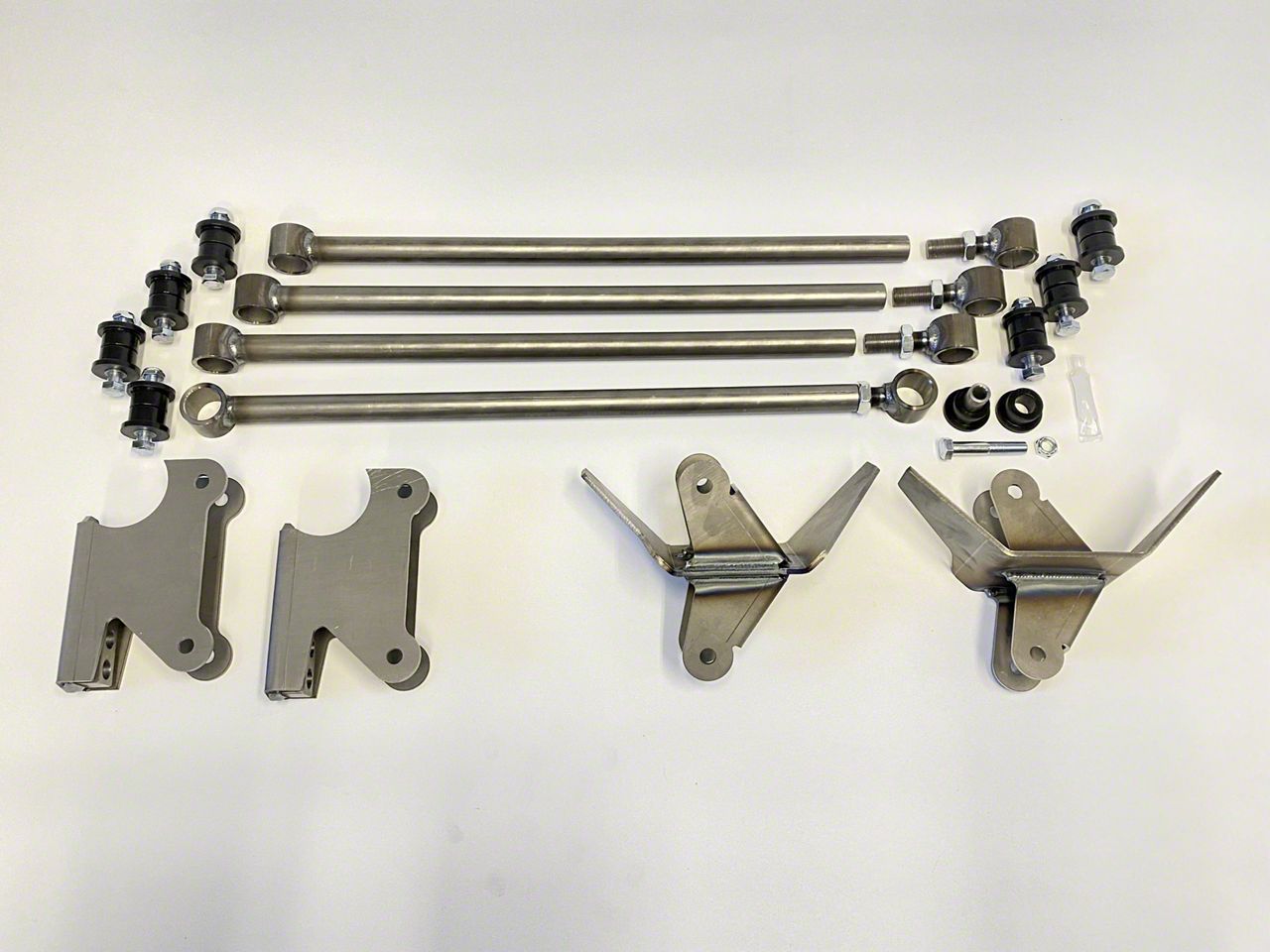

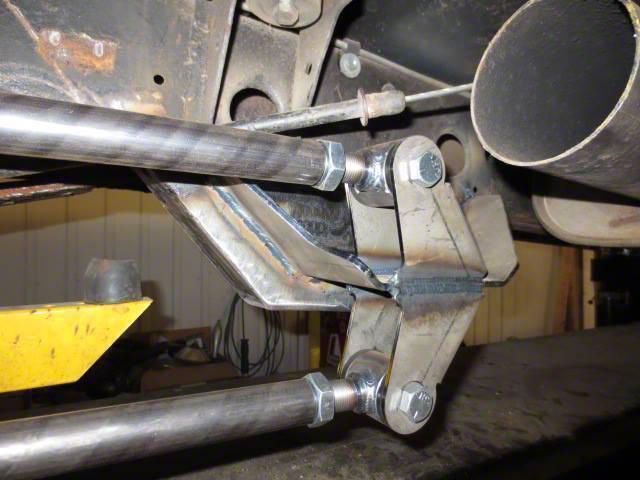

This kit has proven to be adaptable to many frames. The bars mount beside the frame rail (inside the frame or outside, as shown in the pics). The upper bar will be about 3″ above the bottom of the rail. Rear axle brackets have 3 mounting holes for the coil-overs. Bars are about 25” c-c. (4 bars are included in the kit. Custom lengths are available). All brackets are 3/16" mild steel.Please see related products for an adjustable ride height setup tool that can be used in place of your coilovers while you build the car. You can keep your coilovers in perfect condition and make sure you have room for things like exhaust and the driveshaft through suspension travel.Available with axle brackets for 3-1/4" and 2-13/16" tubes. If you have 2-5/8" OD axle bracket tubes, we will supply two pieces of DOM 3" OD x 3/16" wall tubing, 6" long, cut in half lengthwise. These will increase the OD to 3". You can weld these to the axle tubes, then weld the standard 3" axle tubes on.1-3/4″ wide, 1-5/8″ OD urethane bushings3/4-16 threaded adjustersThe brackets are matched to the OD of the bushing for a clean appearance. Brackets and bars are artfully TIG welded.Parts Included: Frame brackets, axle brackets, bars, hardware, bushings, adjusters, and instructions.Instructions: Please click here to see a PDF of the instructions for this kit.Power Train Setup Guide (Inland Empire Driveline)
