MSD 6AL Multiple Spark Discharge Ignition (1949-1952 Fleetline; 1949-1952 Styleline Deluxe; 1949-1952 Styleline Special)
Item EK-80-103440-1
Our Price
$354.95
Military, Medical & First Responders
$17.75 Available in Eckler's Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- Built-In Adjustable Rev-Limit Control _x000D_
- Legal For Sale And Use On Emissions Controlled Vehicles In All 50 States With CARB Executive Order EO Number D-40-43 _x000D_
- Microprocessor Monitors And Controls Every Firing And Rev Limit _x000D_
- Efficient Components Produce More Power While Drawing Less Current _x000D_
- Delivers Over 530 Volts To The Coil With Up To 135mJ Of Spark Energy Per Firing _x000D_
- Compatible With 4, 6, Or 8-Cylinder Engines With 12-Volt Negative Ground Electrical Systems _x000D_
- Accepts Trigger Inputs From Breaker Points, Amplifiers, And Magnetic Pickups _x000D_
- Wiring Harness And Installation Components Included _x000D_
- Vibration Mounts Supplied _x000D_
- Wiring Routed Through Sealed And Locking Connector For Neat Installation _x000D_
- Rev-Limiter Located On Top Housing With Two Rotary Dials To Set Limit In 100 RPM Increments _x000D_
- All Wires Exit Through Locked, Sealed Connector _x000D_
- Built-In LED For System Checks _x000D_
- Voltage Range 12-15 Volts, 7 Volt Start _x000D_
- Current Draw Of 0.7 Amp Per 1,000 RPM _x000D_
- Maximum RPM 11,000 _x000D_
- Surface Mount With Mounting Hardware Included _x000D_
- Primary Voltage 520-540 _x000D_
- Secondary Voltage 45,000 _x000D_
- Spark Energy 135-145 mJ Per Spark _x000D_
- Weight 1.7 Lbs., Dimensions 8 inch Length x 4 inch Width x 1.825 inch Height _x000D_
- Limited 1 Year Manufacturer Warranty _x000D_
- Fits 1949-1952 Fleetline; 1949-1952 Styleline Deluxe; 1949-1952 Styleline Special _x000D_
Description

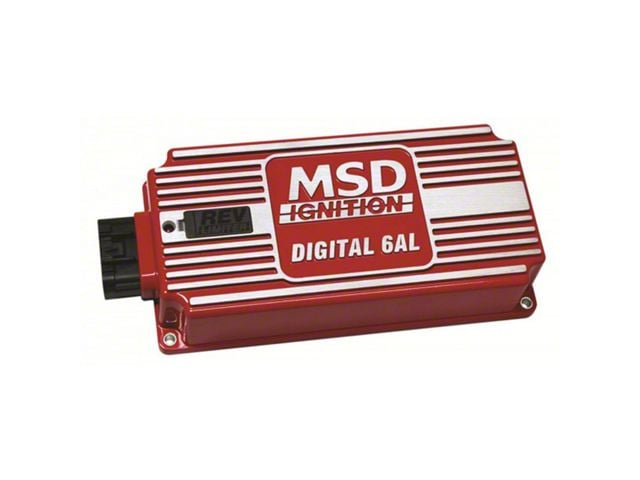

High Performance Ignition Control. The MSD 6AL Multiple Spark Discharge Ignition Control enhances engine performance by delivering multiple sparks during each firing cycle. Designed for use with 4, 6, or 8-cylinder engines, this ignition control precisely manages firing and rev limiting for optimized power output and reliability in various driving conditions.
_x000D__x000D_Construction and Appearance. This ignition control features a durable housing with a vibrant red finish. It incorporates a microprocessor and efficient electronic components that generate over 530 volts to the coil while drawing minimal current. Wiring exits neatly through a sealed locking connector, ensuring a clean installation and lasting protection from environmental factors.
_x000D__x000D_Installation. Installation is straightforward with the included wiring harness, vibration mounts, and mounting hardware. The surface mount design typically eliminates the need for drilling, making it suitable for most compatible engine bays.
_x000D__x000D_Warranty. This product is backed by a limited 1 year manufacturer warranty, assuring quality and performance.
_x000D__x000D_Application. Specifically fits 1949-1952 Fleetline, 1949-1952 Styleline Deluxe, and 1949-1952 Styleline Special models without exceptions.
