Eckler's warehouse is open, shipping daily and ready to meet all of your automotive needs. Most orders ship same day!

SKU
61-858789-1

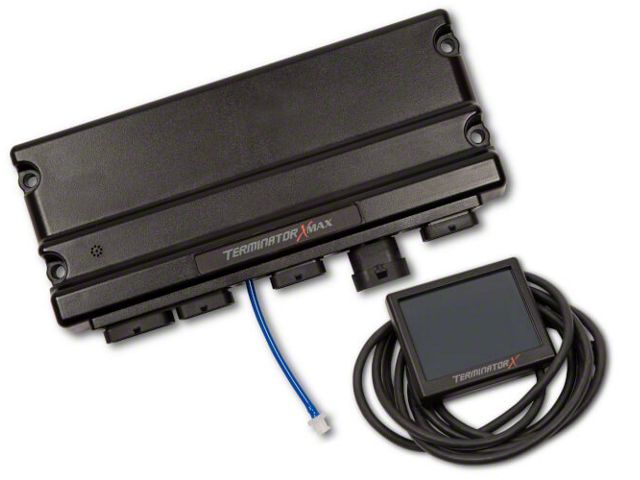

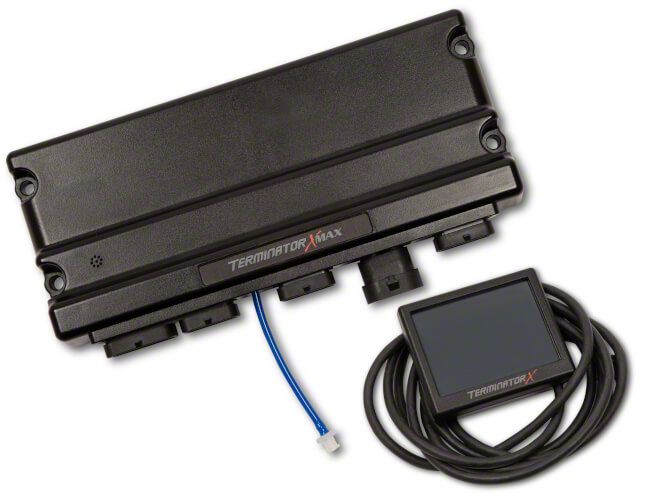

Holley Terminator X Max MPFI with Trans and DBW

0% of 100
0  Reviews Add Your Review
$1,499.99 Each
Product Details
For GM LS 4.8/5.3/6.0 Truck Engines with 24x crank rel... View More
Availability: In stock

  • For GM LS 4.8/5.3/6.0 Truck Engines with 24x crank reluctor, Transmission Control, Drive-by Wire throttle body control, and Multec 2 Injectors
  • Real-Time fuel map learn, takes the guess work out of tuning your base fuel table.
  • High Impedance Injector Drivers will safely power most Stock LS injectors, and Holley EFI Injectors. Injector support chart provided in the instructions (Will not control Low Impedance Injectors)
  • All of the new Terminator X Max systems utilize the Bosch LSU 4.9 wideband to relay AFR information to the ECU for accurate reading and precise tuning control.
  • On-Board 1bar MAP sensor, is perfect for N/A or Nitrous engine combos. If your combination requires a 2+Bar, we recommend GM 12592525, and our adapter part number 558-416.
  • MAP Sensor vacuum hose adapters (1/8th – ¼ and 3/16ths)
  • 4 Inputs – 12v, Ground, 5v, and Frequency, for things such as additional pressure sensors, or activation triggers for nitrous activation, or a trans brake
  • 4 Outputs – Ground, PWM - , for accessories such as; fans, boost control, nitrous control, IAC Kit, and More
  • Boost Control – Boost vs Time, Boost vs Gear, Boost vs RPM, Boost vs Speed, Boost Safeties-Board Diagnostic LEDS for: ECU Power – Engine Run – Wideband Status – TPS Calibration – Crank Signal –Cam Signal. Allow you to identify any Critical engine issues a
  • Nitrous Control – Single Channel of Wet or Dry, Progressive or Non-Progressive, Rich/Lean Safeties, and target Closed Loop AFRadjustable through included 3.5” full color touchscreen, base tune easily created via handheld Wizard!
  • Advanced Tables – 4x 1D Tables, 1x 1D per Gear Table, 4x 2D Tables, 1x 2D per Gear Table, can be used for any custom tables you can dream up, such as Flex Fuel Sensor Offset Table, or a custom fuel or oil pressure safety!
  • On-Board Diagnostic LEDS for: ECU Power – Engine Run – Wideband Status – TPS Calibration – Crank Signal –Cam Signal. Allow you to identify any Critical engine issues at a glance
  • The included 3.5" Touchscreen Handheld contains a calibration wizard, that allows you to quickly build a base tune for any LS engine. Additionally the handheld provides internal data-logging and a fully customizable gauge display.
  • The compact ECU size allows you to mount it virtually anywhere. Remember, diagnostic LEDS must face up!
  • Plug and play compatible with more Holley EFI accessories such as; analog style gauges, shift lights, various modules, and coming soon, 12.3" digital dash support!
  • Free EFI Tuning Software for complete control of your Terminator X power plant
  • Recommended Pedal part number - 10379038
  • Includes: 24x LS Engine Main Harness - Multec 2 Injector Harness - DBW Throttle Body Harness - 4L60E/4L80E Transmission Control Harness - Terminator X MAX ECU - ECU Main Power Harness - Bosch LSU 4.9 Wideband Oxygen Sensor - Input/Output Harness -

Take control of your LS engine with Terminator X Max! Don't settle for a junkyard ECU with a cumbersome tuning interface when you can have complete control of your engine, self-learning fuel strategies and the proven, race-winning technology of Holley EFI at a budget-friendly price! Terminator X Max features real-time fuel learn, high impedance injector drivers, an integrated 1bar MAP sensor, and 4 programmable inputs and outputs. The inputs and outputs are ideal for electric fans, boost control solenoids, progressive nitrous control, and much more. Part number 550-927 also has 4L60E or 4L80E Transmission control and Drive-By Wire Throttle Body control. Terminator X Max comes fully loaded with base maps for common LS engine combinations to get you out of the garage and on the road/track fast. The 3.5" touch screen LCD handheld contains an easy to use calibration wizard as well as tuning and gauge display functions. Also included is Holley EFI's industry-leading, easy to use software suite that allows full laptop access for advanced users. Whether you are building a budget beater or a boosted race car, Terminator X MAX has the features and technology you need at a price that won't break the bank!

GM LS 24x Crank, 1x Cam - 4.8/5.3/6.0 Truck Engines - Multec 2 Injectors - and Drive-By-Wire Throttle Body and Transmission Control, No Laptop Required, 3.5" Touchscreen Included


Combined Cancer/Birth Defect
WARNING This product can expose you to chemicals including Cadmium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
More Information
Base Part Number 858789
Brand N/A

Products from the same brand

Make / Model Series Body Notes Year
Make / Model Chevrolet Series Body Notes Year 2007, 2016, 2017, 2018
Make / Model Chevrolet 1500 Series Body Notes Year 1954
Make / Model Chevrolet 3A Series Body Notes Year 1956, 1957, 1958, 1959
Make / Model Chevrolet Avalanche 1500 Series Body Notes Year 2002, 2003, 2004, 2005, 2006
Make / Model Chevrolet Avalanche 2500 Series Body Notes Year 2002, 2003, 2004, 2005, 2006
Make / Model Chevrolet Blazer Series Body Notes Year 1969, 1970, 1971, 1972, 1973, 1974, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005
Make / Model Chevrolet C10 Series Body Notes Year 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Make / Model Chevrolet C10 Pickup Series Body Notes Year 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974
Make / Model Chevrolet C15 Series Body Notes Year 1984, 1986
Make / Model Chevrolet C1500 Series Body Notes Year 1998, 1999
Make / Model Chevrolet C1500 Suburban Series Body Notes Year 1998, 1999
Make / Model Chevrolet C20 Pickup Series Body Notes Year 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974
Make / Model Chevrolet C2500 Series Body Notes Year 1998, 1999, 2000
Make / Model Chevrolet C2500 Suburban Series Body Notes Year 1998, 1999
Make / Model Chevrolet C35 Series Body Notes Year 1998, 1999, 2000
Make / Model Chevrolet C3500 Series Body Notes Year 1998, 1999, 2000, 2001, 2002, 2003, 2004
Make / Model Chevrolet K10 Series Body Notes Year 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Make / Model Chevrolet K10 Pickup Series Body Notes Year 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974
Make / Model Chevrolet K1500 Series Body Notes Year 1998, 1999
Make / Model Chevrolet K20 Pickup Series Body Notes Year 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974
Make / Model Chevrolet K2500 Series Body Notes Year 1998, 1999, 2000
Make / Model Chevrolet K2500 Suburban Series Body Notes Year 1998, 1999
Make / Model Chevrolet K3500 Series Body Notes Year 1998, 1999, 2000
Make / Model Chevrolet S10 Series Body Notes Year 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996
Make / Model Chevrolet Silverado Series Body Notes Year 1998, 1999
Make / Model Chevrolet Silverado 1500 Series Body Notes Year 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
Make / Model Chevrolet Silverado 1500 HD Series Body Notes Year 2001, 2002, 2003, 2005, 2006
Make / Model Chevrolet Silverado 2500 Series Body Notes Year 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
Make / Model Chevrolet Silverado 2500 HD Series Body Notes Year 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
Make / Model Chevrolet Silverado 3500 Series Body Notes Year 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2015, 2016, 2017
Make / Model Chevrolet Silverado 3500 HD Series Body Notes Year 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
Make / Model Chevrolet Suburban Series Body Notes Year 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1987, 2014, 2015, 2016, 2017, 2018
Make / Model Chevrolet Suburban 1500 Series Body Notes Year 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014
Make / Model Chevrolet Tahoe Series Body Notes Year 1995, 1996, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
Make / Model Chevrolet Trailblazer Series Body Notes Year 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009
Make / Model Chevrolet Trailblazer EXT Series Body Notes Year 2002, 2003, 2004, 2005, 2006
Make / Model Chevrolet Truck Series Body Notes Year 1947, 1948, 1949, 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026, 2027, 2028, 2029, 2030, 2031, 2032, 2033, 2034, 2035, 2036, 2037, 2038, 2039, 2040, 2041, 2042, 2043, 2044, 2045, 2046, 2047, 2048, 2049, 2050, 2051, 2052, 2053, 2054, 2055, 2056, 2057, 2058, 2059, 2060, 2061, 2062, 2063, 2064, 2065, 2066, 2067, 2068, 2069, 2070, 2071, 2072, 2073, 2074, 2075, 2076, 2077, 2078, 2079, 2080, 2081, 2082, 2083, 2084, 2085, 2086, 2087, 2088, 2089, 2090, 2091, 2092, 2093, 2094, 2095, 2096, 2097, 2098, 2099, 2100
Make / Model GMC 1500 Series Body Notes Year 1966
Make / Model GMC C15 Series Body Notes Year 1975, 1976, 1977, 1978
Make / Model GMC Jimmy Series Body Notes Year 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996
Make / Model GMC K15 Series Body Notes Year 1975, 1976, 1977, 1978
Make / Model GMC S15 Series Body Notes Year 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990
Make / Model GMC Suburban Series Body Notes Year 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967
Make / Model GMC Yukon Series Body Notes Year 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
