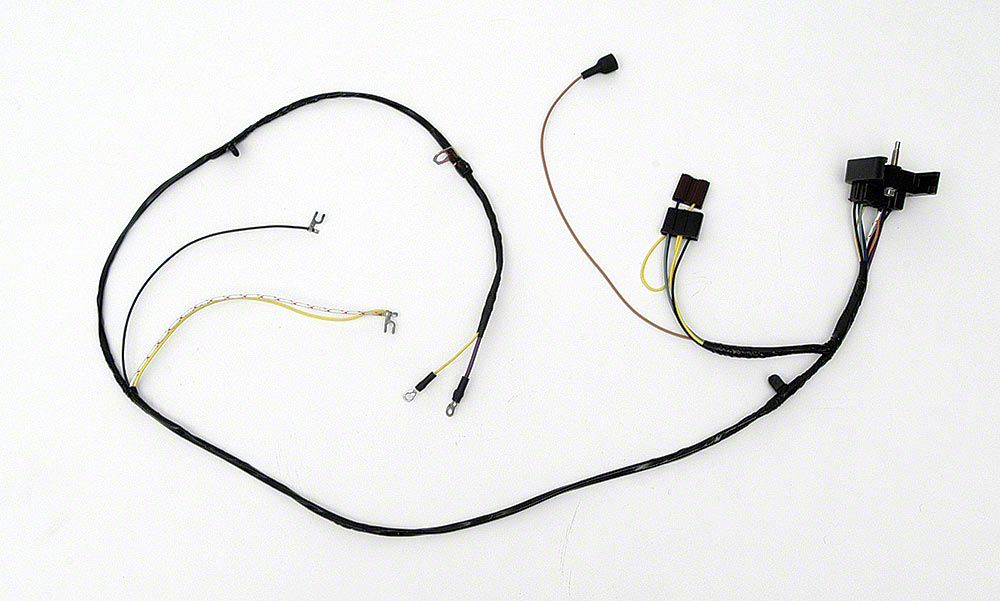

Full Size Chevy Engine & Starter Wiring Harness, With Factory Gauges & Air Conditioning, Small Block (1968 Biscayne; 1968 Impala)

Item EK-40-140313-1
4 Reviews of similar
Our Price

$179.99

Military, Medical & First Responders $9.00 Available in Eckler's Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A

      Features

        _x000D_
      • Factory Fit Engine Harnesses Are Manufactured According To The Original General Motors Specifications.
        • _x000D_
      • Each Part Number Is Fully Assembled, Taped And Ready To Install Upon Arrival.
        • _x000D_
      • This Harness Will Plug Into The Firewall In The Factory Location, And Will Follow Original Routing In The Engine Compartment.
        • _x000D_
      • A Combination Of The Engine And Front Light Harness Accomplishes Most Functions Under The Hood Of An Early GM Vehicle.
        • _x000D_
      • Engine Harness Design Varied Significantly From Year To Year, But Most Will Contain Wiring For The Ignition System, Starter, Heater Blower, And Temperature/Oil Pressure Sender Wires If Applicable.
        • _x000D_
      • Some Vehicles Used A Capillary Tube To Provide An Oil Pressure Reading, So These Will Not Be Included In A Wiring Harness.
        • _x000D_
      • On Vehicles With Ignition Points, The Circuit Feeding The Ignition Coil Was Designed With Some Resistance To Extend The Life Of The Ignition Point Set.
        • _x000D_
      • Modern Electronic Ignition Systems Or High Energy Ignition Systems Do Not Require Resistance In The Circuit, So It Is Recommended That A Harness Modified For HEI Be Ordered If The Ignition System Has Been Upgraded.
        • _x000D_
      • Consult Factory Service Manual To Determine If The Engine Harness Will Contain The Circuits Required For Your Project Or Contact Sales Team To Confirm Part Numbers.
        • _x000D_
      • Fits 1968 Biscayne; 1968 Impala
        • _x000D_

      Description

      For 1968 Impala, Biscayne, Bel Air restorers one of the most important safety features your car needs is a engine and starter wiring harness system that is in good working order. Years-old wiring that has been spliced, modified, is dry-rotted or in generally poor condition could lead to an untimely breakdown or much worse, a disastrous fire. For safety and functionality, replacing your old engine and starter wiring harness with a new exact replacement harness is a very smart investment. Late Great Chevy offers the best in reproduction wiring harnesses for your Chevy. Each harness is manufactured in the USA according to GM specifications, assuring an authentic look and precise connection to al
