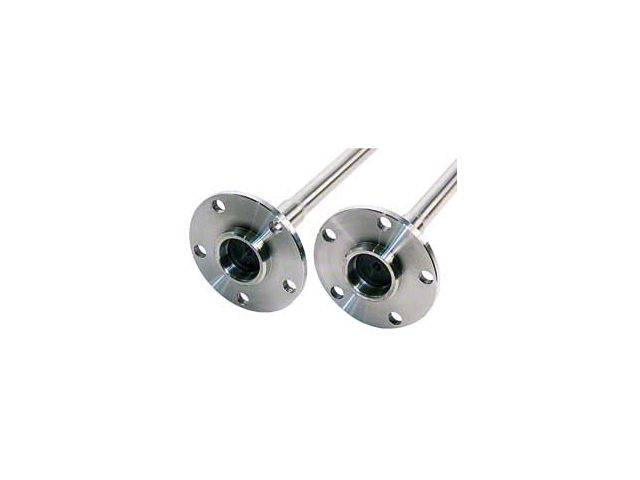

Rear Axles, 12 Bolt, 30 Spline, 31 5 & 16 Long (66-70 Biscayne; 66-70 Impala)Find parts that fit my vehicle

Name: Rear Axles, 12 Bolt, 30 Spline, 31 5 & 16 Long (66-70 Biscayne; 66-70 Impala)
Brand: Store Brand
SKU: EK-40-178367-1
Price: 419.99 USD
Availability: InStock

Item EK-40-178367-1

Our Price

-0% $419.99 Was $419.99

Military, Medical & First Responders $21.00 Available in EK Cash Rewards.
Confirm Eligibility

Add to Cart

Save for later

Create a list

Name your new list Add to New List

Saved - View your saved items

We're sorry. We couldn't save this product at this time.

or use

Shop Owners Save More! Sign up for our dealer program

Join For FREE

Product Information

Features, Description, Q&A

Features

Premium Quality Alloy Steel Forged Using Specialized Tooling
Induction Heat-Treated To Maximize Torsional Strength
100% Magnaflux Inspected For Structural Integrity
Non-Tapered Axles With Hardened Bearing Seats
Machined C-Clip Grooves Designed To Fit OEM Applications
Bearing Seat Diameter: 1.618 Inches
Axle Length: 31 5/16 Inches
Bolt Pattern: (2) 5 X 4 3/4 Inches
TAP 1/2 X 20 Threads and .453 Inch Hole
A Measurement: 2.775 / 2.810 Step
Weight: 40 Pounds (Pair)
Package Dimensions: 28 By 5 By 5 Inches
Fits 1966-1970 Biscayne and 1966-1970 Impala Models with 12-Bolt Rear Ends

Description

High Performance Axle Assembly. The rear axles, 12 bolt, 30 spline, 31 5/16 inches long, provide critical drivetrain support to ensure optimal performance and durability. These axles transfer torque from the differential to the wheels, making them essential for vehicle operation and handling under load.

Construction and Appearance. Crafted from premium alloy steel, these axles are forged using specialized tooling and induction heat-treated to maximize torsional strength. The surface is 100% magnaflux inspected to ensure structural integrity and defect-free quality. The design includes non-tapered axles with hardened bearing seats and machined C-clip grooves to meet original equipment manufacturer (OEM) specifications.

Installation. Installation is straightforward with no drilling required, fitting directly into the designated 12-bolt Chevy rear end housing. The precise machining of the bolt pattern and snap ring grooves ensures a seamless OEM replacement.

Application. Specifically designed to fit 1966 to 1970 Biscayne and Impala models equipped with 12-bolt rear ends, these axles maintain factory compatibility and performance standards for these classic GM vehicles.
