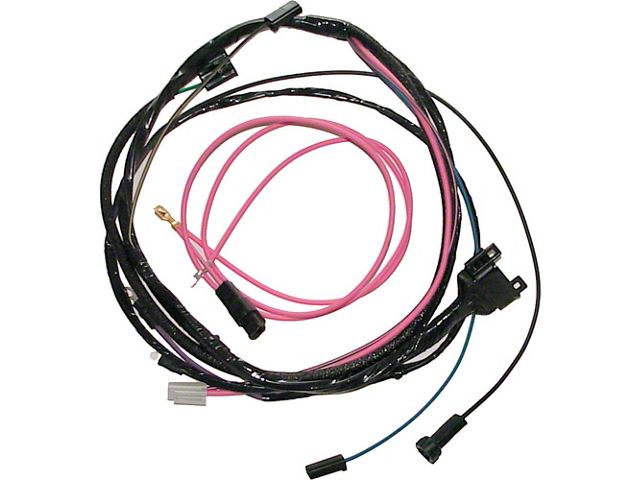

Full Size Chevy HEI Engine Starter Wiring Harness, Small Block (1964 Biscayne; 1964 Impala)

Item EK-40-153232-1
Clearance
1 Reviews
Clearance Price

$159.99

Military, Medical & First Responders $8.00 Available in Eckler's Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Reviews, Q&A

      Features

      • Factory Fit Engine Harnesses Are Manufactured According To The Original General Motors Specifications
      • Each Part Number Is Fully Assembled, Taped And Ready To Install Upon Arrival
      • This Harness Will Plug Into The Firewall In The Factory Location And Follow Original Routing In The Engine Compartment
      • A Combination Of The Engine And Front Light Harness Accomplish Most Functions Under The Hood Of An Early GM Vehicle
      • This Harness Is Modified For A 12 Volt HEI Ignition
      • Original Resistor Wire Is Replaced With A Standard 12 Volt Feed
      • Includes A Connector For A GM Large Cap Distributor
      • If Not Using A GM Large Cap HEI Distributor, Connector End May Need To Be Replaced
      • Some Pontiacs Had Resistance Wiring Installed In The Dash Harness And May Not Be Available As HEI Part Numbers
      • Engine Harness Design Varied Significantly From Year To Year
      • Most Harnesses Contain Wiring For Ignition System, Starter, Heater Blower, And Temperature/Oil Pressure Sender Wires If Applicable
      • Oil Pressure Readings Using A Capillary Tube Are Not Included In Harness
      • Consult Factory Service Manual To Confirm Circuits Required For Your Project
      • Fits 1964 Biscayne; 1964 Impala

      Description

      High-Quality Engine Harness. The HEI Engine/Starter Wiring Harness, Small Block, 1964 is designed to provide a precise, factory-specification wiring solution for your engine compartment. This harness simplifies the electrical wiring process for ignition, starter, and sensor connections in early GM vehicles equipped with HEI ignition systems. It ensures a clean, reliable installation that supports vehicle performance and electrical integrity.

      Construction and Appearance. Manufactured to original General Motors specifications, this harness is fully assembled and taped, ready for immediate installation. The wiring harness uses high-quality materials and connectors, including a 12-volt feed replacement for the original resistor wire and a connector designed for GM large cap distributors. The design follows factory routing to maintain the vehicle’s original look and function.

      Installation. Installation is straightforward and requires no modifications such as drilling. The harness plugs directly into the original firewall location and routes along the engine compartment’s factory paths, making it suitable for restorations and restomods alike.

      Application. Specifically fits the 1964 Biscayne and 1964 Impala models, designed for V8 engines with 283 and 327 cubic inch displacements modified for use with HEI distributors. Using non-GM large cap HEI distributors may require connector changes.
