Microsteer Electric Power Steering Conversion Kit (Universal; Some Adaptation May Be Required)

Item EK-61-858559-1
1 Reviews of similar
Our Price

$2,439.99

Military, Medical & First Responders $122.00 Available in Eckler's Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A

      Features

        _x000D_
      • Operating Voltage Nominal 13.8V DC
        • _x000D_
      • Maximum Current Draw 30 Amps
        • _x000D_
      • Average Current Draw Less Than 2 Amps
        • _x000D_
      • System Weight MGU And ECU 9.70lbs/4.4kg
        • _x000D_
      • Maximum Torque Output 32Nm/24lb.ft
        • _x000D_
      • IP Rating IP67
        • _x000D_
      • Operating Temperature -20 To 120C/-4 To 248F
        • _x000D_
      • Motor Rated Power 220 Watts
        • _x000D_
      • MGU Spline Pattern 11/16"-36 Both Ends
        • _x000D_
      • Shipping Dimensions 16" X 11 X 7"
        • _x000D_
      • Warranty 1 Year
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      Electric Power Steering System. The Flaming River Microsteer Electric Power Steering Conversion Kit offers a universal solution for upgrading manual steering to power-assisted steering. It provides adjustable assistance levels via a unique tuning box compatible with manual control or speed-sensitive input to enhance driving comfort and control. This system simplifies installation without requiring changes to the existing steering rack or hydraulic setup.

      _x000D__x000D_

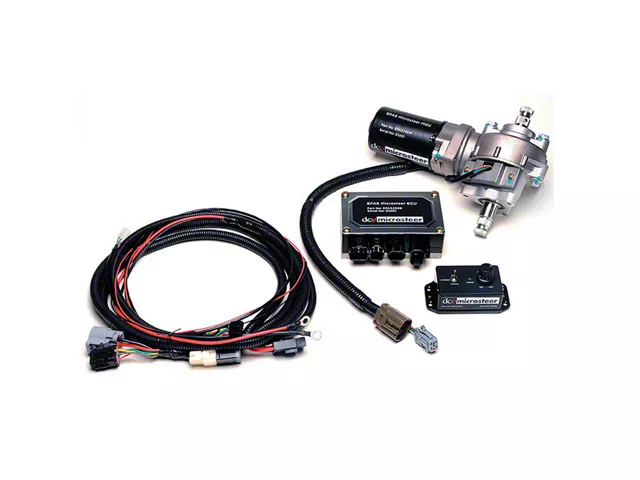

      Construction and Appearance. The system includes a motor/gearbox unit (MGU), electronic control unit (ECU), and tuning box assembled with precision components. It is engineered to deliver 220 watts of power and features a durable IP67 rating for moisture and dust resistance. The robust design includes an 11/16"-36 spline pattern on both input and output shafts and weighs approximately 9.7 pounds, ensuring reliability under varied operating conditions.

      _x000D__x000D_

      Installation. Installing the Microsteer system is moderately straightforward and designed to retrofit existing manual steering mechanisms. No drilling is typically required; however, some adaptation may be necessary to fit different vehicle configurations properly.

      _x000D__x000D_

      Warranty. This product is backed by a one-year warranty, providing assurance of quality and manufacturer support.

      _x000D__x000D_

      Application. This electric power steering kit fits universally with some adaptation depending on the vehicle's existing steering setup and configuration.
