FiTech Fuel Injection Go EFI 2x4 Power Adder 1200HP Self Tuning Fuel Injection System; Matte Black (Universal; Some Adaptation May Be Required)

Item EK-48-394703-1
Product Image
Eckler's no longer carries the FiTech Fuel Injection Go EFI 2x4 Power Adder 1200HP Self Tuning Fuel Injection System; Matte Black (Universal; Some Adaptation May Be Required). Please check out F-Series Trucks Electricalfor an updated selection.
Shop Owners Save More! Sign up for our dealer program
Join For FREE

    Product Information

    Features, Description, Q&A, Specs & Installation

    Features

      _x000D_
    • Go EFI 2x4 Power Adder 1200HP Self-Tuning Fuel Injection System Rated For Engines From 400HP To 1200HP
      • _x000D_
    • Designed For Use With 671 And 871 Roots Superchargers Or Naturally Aspirated Dual Quad Setups
      • _x000D_
    • Works Out Of The Box With 2x4 Blower Plates As Inline Or Side Mount Using Custom Linkages
      • _x000D_
    • Bolt-On Fit For Popular Dual Quad And Tunnel Ram Manifolds Including Edelbrock Without Adapters
      • _x000D_
    • Single Throttle Body Controls Injection While The Second Holds 4 Additional Flow Matched Injectors
      • _x000D_
    • Compatible With Cross Ram And Tunnel Ram Configurations
      • _x000D_
    • Applications Include Chevrolet, Pontiac, Ford, Chrysler, Dodge, Plymouth, And Others Making 250HP To 1200HP
      • _x000D_
    • Replacement For Any Dual Quad Carburetors Within The Same Power Range
      • _x000D_
    • Allows Use Of Standard Air Cleaners Designed For Dual Quad Carburetors
      • _x000D_
    • Features 2.5 BAR Internal MAP Sensor And Supports Up To 1200HP
      • _x000D_
    • Equipped With Eight Flow Matched Injectors And Dual Fan Control Outputs
      • _x000D_
    • Compatible With Blowers, Turbochargers, And Supports Nitrous Use Including Boost And Nitrous Timing
      • _x000D_
    • Includes Ignition Timing Control And Built-In Fuel Pressure Regulator
      • _x000D_
    • Allows Air/Fuel Ratio Tuning With Pro-Tuning Laptop Software
      • _x000D_
    • Matte Black Finish
      • _x000D_

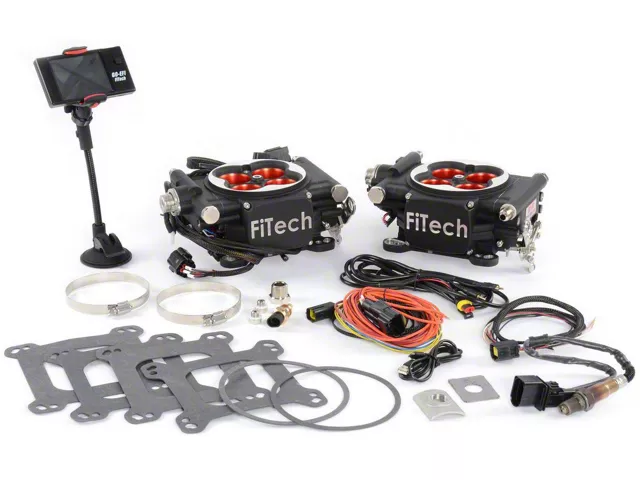

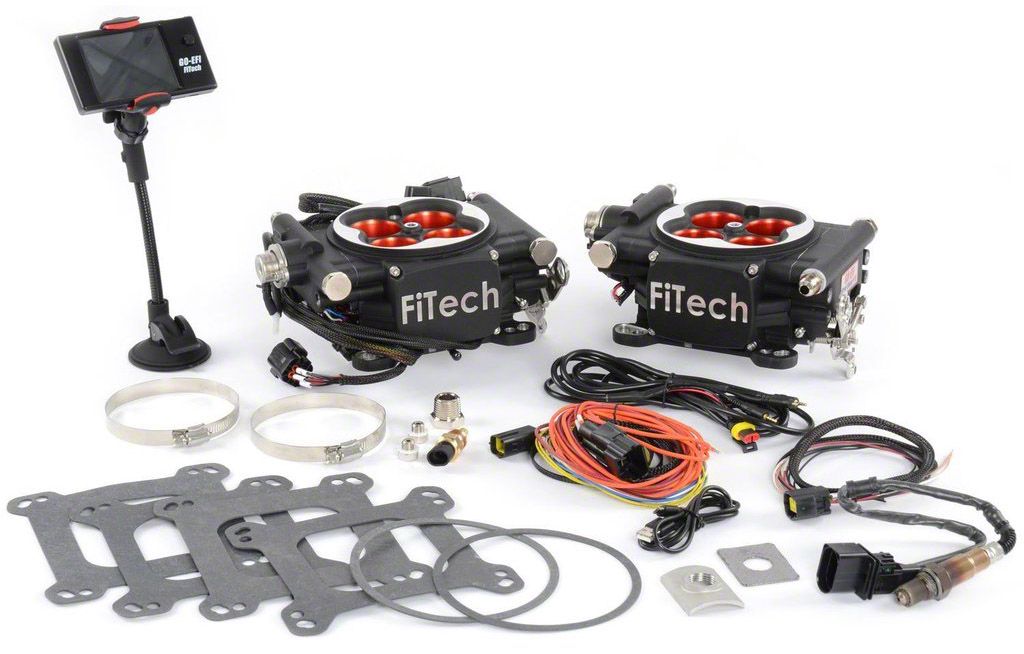

    • Kit Includes Two Die-Cast Throttle Bodies, O2 Bung Kit, Hand-Held Controller And Cable, CTS Sensor And Adapter, Windshield Mount, Mini USB Cable, Connectors, Return Plugs, O2 Sensor, And Gasket Kit
      • _x000D_
    • Weight: Approximately 20-21 Pounds With Dimensions Around 15x15x12 Inches
      • _x000D_
    • Injection Style: Throttle Body With Speed Density (MAP-N) Metering
      • _x000D_
    • Includes ECU, Calibration Module, Wiring Harness, Oxygen Sensor, Fuel Pressure Regulator, MAP Sensor, IAT Sensor, And TPS Sensor
      • _x000D_
    • Throttle Body Features Dual 4-Barrel Square Bore Flanges With 8x 43mm Venturi Diameter And 1700 CFM Airflow Rate
      • _x000D_
    • Throttle Bodies Constructed From Cast Aluminum With Satin Black Finish
      • _x000D_
    • Includes 80 lb/hr Injectors
      • _x000D_
    • Compatible With Multiple Fuel Types Including Alcohol, Gasoline, Methanol, And Flex Fuels
      • _x000D_
    • Does Not Include Fuel Pump, Transmission Controller, Intake Manifold, Or Intake Section
      • _x000D_
    • Sold Individually
      • _x000D_
    • Fits Universal; Some Adaptation May Be Required
      • _x000D_

    Description

    High-Performance Fuel Injection. The FiTech Fuel Injection Go EFI 2x4 Power Adder 1200HP Self-Tuning Fuel Injection System Matte Black delivers precise fuel management for engines producing between 400 and 1200 horsepower. This advanced setup replaces traditional dual quad carburetors on a variety of engines, optimizing power delivery and fuel efficiency. It is ideal for use with supercharged, turbocharged, or naturally aspirated dual quad configurations to enhance performance and drivability.

    _x000D__x000D_

    Construction and Appearance. The system features two die-cast throttle bodies crafted from durable cast aluminum, finished in a satin black coating for a sleek, professional look. The throttle bodies incorporate eight matched 43mm venturis to provide up to 1700 CFM of airflow. This robust build ensures lasting performance and a premium finish that integrates seamlessly on dual quad manifolds.

    _x000D__x000D_

    Installation. Designed for a bolt-on fit with common dual quad manifolds, installation requires minimal modifications and no drilling. It adapts to various blower plates and configurations using existing or custom linkages for straightforward setup.

    _x000D__x000D_

    Warranty. This product includes a limited three-year warranty for purchaser confidence.

    _x000D__x000D_

    Application. Fits universal applications; some adaptation may be required for specific engine setups or manifolds.

    CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

    Installation & What's in the Box

    What's in the Box

    • (2) Die-cast throttle body.
    • (1) O2 bung kit.
    • (1) Hand-held controller.
    • (1) CTS sensor.
    • (1) Hand-held controller cable.
    • (1) CTS adapter.
    • (1) Windshield mount.
    • (1) Mini USB cable.
    • (1) 4+2-Pin Connector.
    • (2) Return plug.
    • (1) O2 sensor.
    • (1) Gasket kit.

    Questions & Answers

    No questions about this product yet. Ask the First Question
