FiTech Fuel Injection Go EFI 2x4 Power Adder 1200HP Self Tuning Fuel Injection System; Matte Black (Universal; Some Adaptation May Be Required)

Item EK-40-394703-1
Product Image
Eckler's no longer carries the FiTech Fuel Injection Go EFI 2x4 Power Adder 1200HP Self Tuning Fuel Injection System; Matte Black (Universal; Some Adaptation May Be Required). Please check out 1958 Chevrolet Impala Engine for an updated selection.
Shop Owners Save More! Sign up for our dealer program
Join For FREE

    Product Information

    Features, Description, Q&A, Specs & Installation

    Features

      _x000D_
    • Go EFI 2×4 Power Adder 1200HP Self-Tuning Fuel Injection System
      • _x000D_
    • Suitable For Engines From 400HP To 1200HP
      • _x000D_
    • Designed For Use With 671 And 871 Roots Superchargers Or Naturally Aspirated Dual Quad Setups
      • _x000D_
    • Works Out Of The Box With 2×4 Blower Plate Inline Or Side Mounted With Custom Linkages
      • _x000D_
    • Bolt-On Fit For Popular Dual Quad And Tunnel Ram Manifolds Including Edelbrock Dual Quad Manifolds Without Adapters
      • _x000D_
    • One Throttle Body Controls The System While Second Holds Four Additional Injectors
      • _x000D_
    • Compatible With Cross Ram And Tunnel Ram Configurations
      • _x000D_
    • Applications Include Chevrolet, Pontiac, Ford, Chrysler, Dodge, Plymouth Engines Producing Between 250HP And 1200HP
      • _x000D_
    • Replacement For Any Dual Quad Carburetors Within The Power Range
      • _x000D_
    • Same Size Air Cleaner As Dual Quad Carburetors Can Be Used
      • _x000D_
    • 2.5 BAR Internal MAP Sensor
      • _x000D_
    • Eight Flow Matched Injectors
      • _x000D_
    • Two Fan Controls Included
      • _x000D_
    • Blower And Turbo Ready
      • _x000D_
    • Support For Nitrous With Boost And Nitrous Timing
      • _x000D_
    • Ignition Timing Control Capability
      • _x000D_
    • Built-In Pressure Regulator
      • _x000D_
    • Air/Fuel Ratio Tuning Available
      • _x000D_
    • Pro-Tuning Laptop Software Included
      • _x000D_
    • Matte Black Finish
      • _x000D_
    • Kit Includes Two Die-Cast Throttle Bodies, O2 Bung Kit, Hand-Held Controller With Cable, CTS Sensor And Adapter, Windshield Mount, Mini USB Cable, Connector, Return Plugs, O2 Sensor, Gasket Kit
      • _x000D_
    • Throttle Body Features Dual 4-Barrel Square Bore Mounting Flange With 8 Venturis At 43mm Diameter
      • _x000D_
    • Airflow Rate Rated At 1700 CFM
      • _x000D_
    • Throttle Body Made From Cast Aluminum
      • _x000D_
    • Injector Size Rated At 80 lbs/hr
      • _x000D_
    • Includes Calibration Module, Wiring Harness, Oxygen Sensor, Fuel Pressure Regulator, MAP Sensor, IAT Sensor, TPS Sensor
      • _x000D_
    • Speed Density (MAP-N) Metering Style
      • _x000D_
    • Supports Multiple Fuel Types Including Alcohol, Gasoline, Methanol, Flex
      • _x000D_
    • Sold Individually
      • _x000D_
    • Fits Universal; Some Adaptation May Be Required
      • _x000D_

    Description

    High-Performance Fuel Injection. The FiTech Fuel Injection Go EFI 2x4 Power Adder 1200HP Self Tuning Fuel Injection System; Matte Black is engineered to deliver reliable fuel management for engines producing from 400 up to 1200 horsepower. This system fits dual quad intake manifolds and is ideal for engines equipped with large roots superchargers or naturally aspirated setups, providing precise control and enhanced power delivery across demanding applications.

    _x000D__x000D_

    Construction and Appearance. Crafted from durable cast aluminum, the throttle bodies feature a satin black matte finish that combines robust construction with a sleek aesthetic. The system includes matched injectors and reliable sensor components designed for resilience and seamless integration into high-boost and nitrous-assisted setups.

    _x000D__x000D_

    Installation. Installation is designed to be straightforward with a bolt-on fit for popular dual quad or tunnel ram manifolds, requiring minimal modification. Custom linkage options allow adaptation for side mount applications, simplifying integration without extensive fabrication.

    _x000D__x000D_

    Warranty. This system is backed by a three-year limited warranty that covers defects in materials and workmanship.

    _x000D__x000D_

    Application. Fits universal dual quad manifolds; some adaptation may be required for side-mount or custom blower plate installations, designed chiefly for use on engines ranging from 250 to 1200 horsepower. Not legal for emission-controlled vehicles.

    CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

    Installation & What's in the Box

    What's in the Box

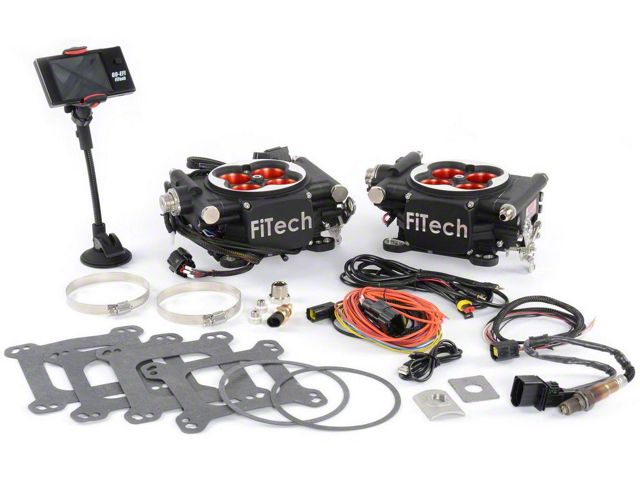

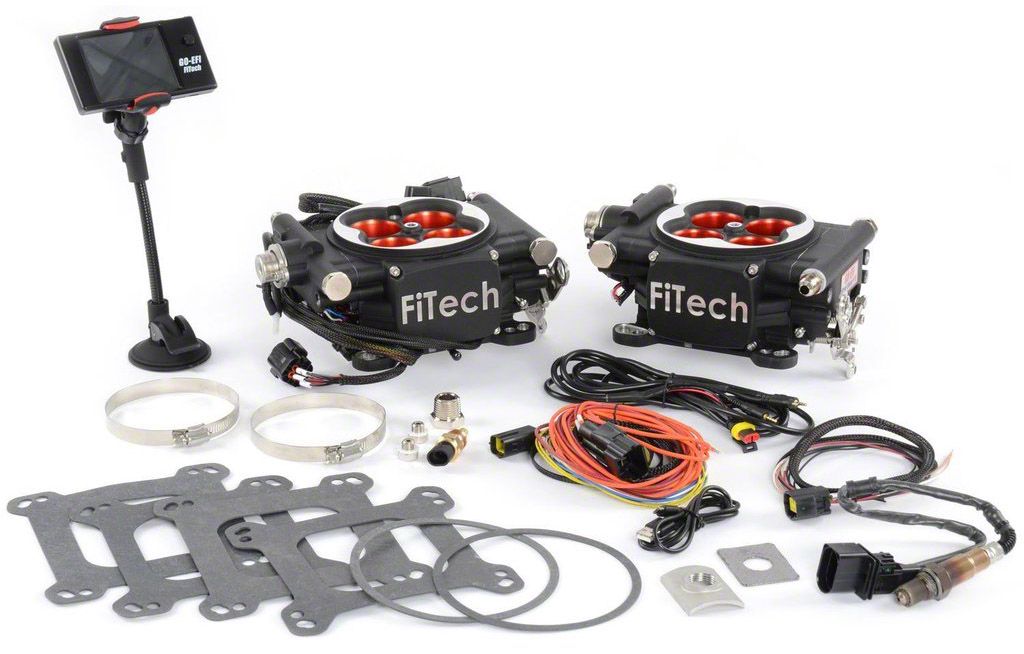

    • (2) Die-cast throttle body.
    • (1) O2 bung kit.
    • (1) Hand-held controller.
    • (1) CTS sensor.
    • (1) Hand-held controller cable.
    • (1) CTS adapter.
    • (1) Windshield mount.
    • (1) Mini USB cable.
    • (1) 4+2-Pin Connector.
    • (2) Return plug.
    • (1) O2 sensor.
    • (1) Gasket kit.
