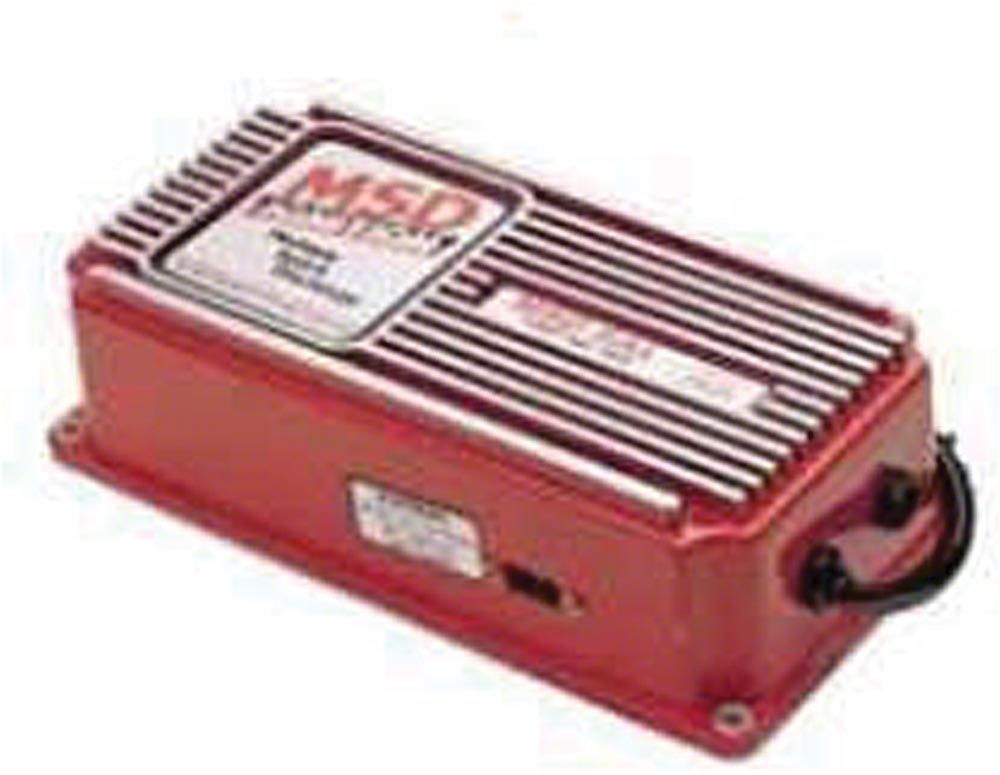

Chevy Ignition, MSD 6AL, Multi Spark Discharge System

Item EK-40-304955-1
Eckler's no longer carries the Chevy Ignition, MSD 6AL, Multi Spark Discharge System . Please check out Home for an updated selection.
6 Reviews of MSD
Shop Owners Save More! Sign up for our dealer program
Join For FREE
Loading Indicator

    Product Information

    Features, Description, Q&A

    Features

      _x000D_
    • Built-In Adjustable Rev-Limit Control With Two Rotary Dials On Housing
      • _x000D_
    • Microprocessor Monitors And Controls Every Firing And Rev Limit
      • _x000D_
    • Efficient Components Draw Less Current While Delivering More Power
      • _x000D_
    • Delivers Over 530 Volts To Coil With Up To 135mJ Spark Energy Per Firing
      • _x000D_
    • Compatible With 4, 6, Or 8-Cylinder Engines
      • _x000D_
    • Accepts Trigger Inputs From Breaker Points, Amplifiers, And Magnetic Pickups
      • _x000D_
    • Wiring Harness And Installation Components Included
      • _x000D_
    • Sealed Locked Connector Wiring For Neat Installation
      • _x000D_
    • Operating Voltage Range 12-15 Volts, 7 Volt Start
      • _x000D_
    • Current Draw Approximately 0.7 Amp Per 1,000 RPM
      • _x000D_
    • High Output Spark Energy With Multiple Spark Series
      • _x000D_
    • Surface Mount With Vibration Mounts Included
      • _x000D_
    • Maximum RPM Capacity Up To 11,000 RPM
      • _x000D_
    • Dimensions 8 Inches Length, 4 Inches Width, 1.825 Inches Height
      • _x000D_
    • Weight Approximately 1.7 Pounds
      • _x000D_
    • Includes Manufacturer's Limited 1 Year Warranty
      • _x000D_
    • Emission Legal For Use On Emissions Controlled Vehicles In All 50 States With CARB EO D-40-43
      • _x000D_
    • Fits Emissions Controlled Vehicles Including 1966 And Newer California Certified And 1968 And Newer Federally Certified And Foreign Manufactured Vehicles
      • _x000D_

    Description

    Digital Ignition Control. The MSD Chevy Ignition, MSD 6AL, Multi Spark Discharge System is engineered to enhance ignition performance by providing precise spark control and fully adjustable rev limits. It delivers a powerful, consistent spark that improves engine efficiency and power across 4, 6, or 8-cylinder engines with 12-volt, negative ground electrical systems. This ignition control system is ideal for enthusiasts seeking improved reliability and performance in a wide range of applications.

    _x000D__x000D_

    Design And Engineering. Constructed using efficient modern electronics and a sealed locking connector to protect wiring integrity, this ignition control box includes vibration mounts to reduce mechanical wear. Finished in a durable red coating, its compact and lightweight design allows for neat, straightforward installation while maintaining a high-voltage output capability of over 530 volts and 135mJ spark energy per firing.

    _x000D__x000D_

    Installation. Installation is straightforward, as the unit comes complete with wiring harnesses and all necessary components. The surface mount design and sealed connectors simplify the setup process, eliminating the need for drilling and ensuring a clean, professional installation for both professionals and experienced enthusiasts.

    _x000D__x000D_

    Warranty. This ignition control box is backed by a manufacturer's limited 1-year warranty.

    _x000D__x000D_

    Application. Intended for use in emissions-controlled vehicles, this unit is legal for sale and use in all 50 states under CARB Executive Order D-40-43, meeting requirements for 1966 and newer California Certified and 1968 and newer federally and foreign certified vehicles.
