SKU
67-857196-1

WheelAdapters,Pr-2"5x4.5"-1/2"Thread

0% of 100
0  Reviews Add Your Review
$65.99 PR
Product Details
2 Inches Thick 1/2-20 Thread Size 5 x 4.5" To 5 x... View More
Availability: In stock

  • 2 Inches Thick
  • 1/2-20 Thread Size
  • 5 x 4.5" To 5 x 4.5" Bolt Pattern
  • 74mm Hub Inside Diameter
  • NOT Hub-Centric
  • Includes Five Lug Nuts
  • Sold As A Pair

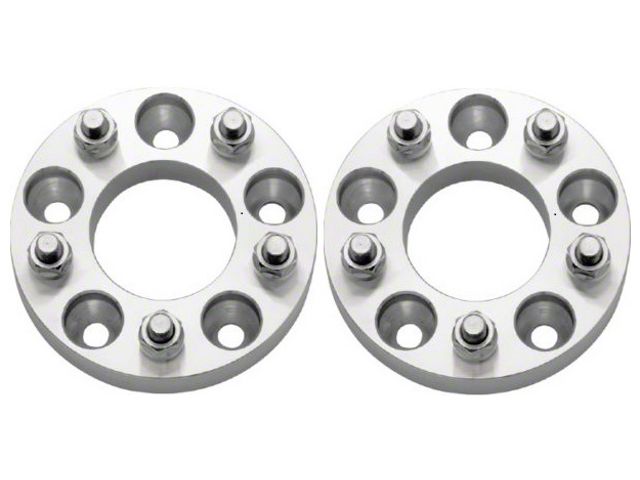

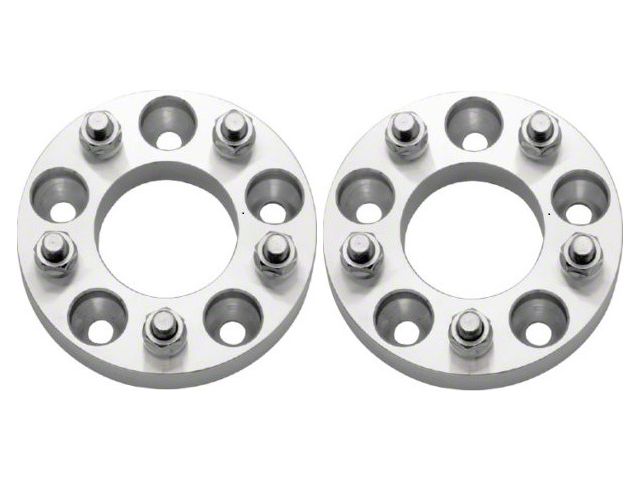

These wheel adapters are a simple, safe way to move your wheels out away from the body.  They bolt on the original studs, then provide new studs which the wheel attaches to.  These are 2" thick which is thicker than most factory wheel studs are long.  If you do find yours extend past the surface of the wheel spacers you will need to:

  • Shorten the factory studs
  • Have wheels which have open slots (cavities) between mounting holes
  • Purchase a set of shorter studs and install them in place of the factory studs



They have large 74mm center openings which is larger than most factory hubs.  They are not hub-centric however, so you will want to be sure there is plenty of contact surface on the wheel studs for your lug nuts.  We offer extended-reach lug nuts to help with this but your wheels must be machined from the factory to accept them. The bolt pattern is the common Ford/Mercury 5 x 4.5" which is also sometimes expressed as 5 x 114.3mm or 5 x 115mm.  This listing is for a pair of adapters, but check our other listings for singles and sets of four.


Billet Wheel Adapters, Pair-2" Thick, 5 x 4.5" With 1/2-20 Thread Studs

Billet Wheel Adapters, Pair-2" Thick, 5 x 4.5" With 1/2-20 Thread Studs


Combined Cancer/Birth Defect
WARNING This product can expose you to chemicals including CADMIUM which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
More Information
Eck Dax Part Number 857196
Brand N/A
