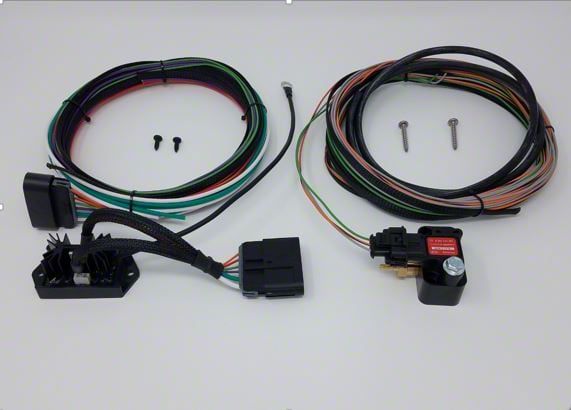

Aeromotive VaporWorx Intelligent Controller with MAP Sensor; Dual Channel (Universal; Some Adaptation May Be Required)

Item EK-40-901939
Product Image
Eckler's no longer carries the Aeromotive VaporWorx Intelligent Controller with MAP Sensor; Dual Channel (Universal; Some Adaptation May Be Required). Please check out 1958 Chevrolet Impala Enginefor an updated selection.
Shop Owners Save More! Sign up for our dealer program
Join For FREE

    Product Information

    Features, Description, Q&A

    Features

      _x000D_
    • Modern Safety and Convenience Features for Classic Vehicles
      • _x000D_
    • Dual Channel Intelligent Controllers with MAP Sensor
      • _x000D_
    • Supports Up to 25A Per Channel of 12V DC Negative Ground Power
      • _x000D_
    • Output Short Circuit Protection that Shuts Down Power if Pump or Wiring Shorts
      • _x000D_
    • Three Second Prime Cycle at Initial Key-On to Prevent Continuous Pump Running
      • _x000D_
    • Second Output Activated at Approximately 4 Psi Atmospheric Boost via 3 Bar MAP Sensor
      • _x000D_
    • Includes 3 Bar MAP Sensor and Sensor Mounting Bracket
      • _x000D_
    • Accident Safety Feature De-Energizes Output when Engine Tachometer Signal Is Zero
      • _x000D_
    • Manual Override for Tuning with Ignition On and Engine Off
      • _x000D_
    • Manual Override for Intercooler Pumps Available with Modified Wiring
      • _x000D_
    • XLPE Wire and Sealed Genuine Delphi GT280 Connector Included
      • _x000D_
    • Pre-Wired 15 Inches Signal Circuit Wiring, Includes Wire Braid and 6 Feet White 12 Gauge Wire
      • _x000D_
    • Made in the USA Using UL94 Rated Components
      • _x000D_
    • Pre-Terminated Heavy-Gauge Ground Input Wiring Controls Pump Ground Switching
      • _x000D_
    • Conservative Power Rating Limited by GT280 Plug Assembly, Electronics Support 36A with Higher Power Option
      • _x000D_
    • Fits Universal; Some Adaptation May Be Required
      • _x000D_

    Description

    Advanced Fuel Pump Controller. The Aeromotive VaporWorx Intelligent Controller with MAP Sensor; Dual Channel is engineered to upgrade classic carbureted vehicles by providing modern safety and convenience controls for electric fuel and intercooler pumps. It intelligently manages dual outputs, featuring short circuit protection, automated boost-activated pump control, and accident-triggered pump shutdown to enhance vehicle safety and performance.

    _x000D__x000D_

    Construction and Appearance. This controller is constructed with durable XLPE wiring and includes a sealed genuine Delphi GT280 connector to ensure reliable connections. It is assembled in the USA using UL94 rated components, emphasizing high quality and safety. The wiring incorporates protective braid and is supplied with sufficient length for flexible installation.

    _x000D__x000D_

    Installation. Installation is straightforward and designed as a direct replacement or new installation for traditional relay systems. Basic wiring skills are required, and no drilling is necessary to mount the included MAP sensor bracket.

    _x000D__x000D_

    Warranty. This product comes with a one-year limited warranty against defects in material and workmanship.

    _x000D__x000D_

    Application. Designed for universal use with carbureted vehicles equipped with electric fuel pumps, though some adaptation may be required for specific vehicle configurations.
