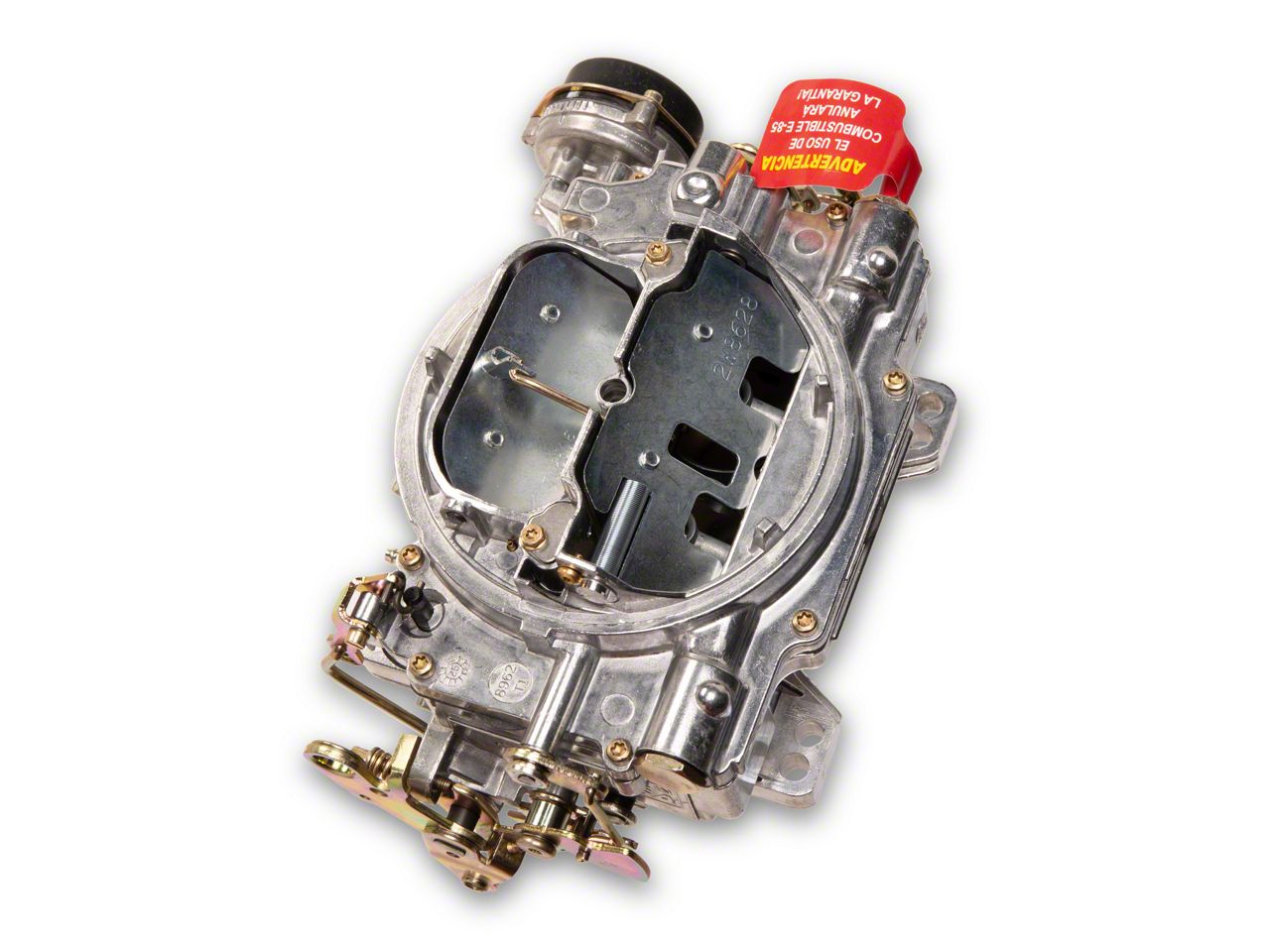

800 CFM AVS2 Edelbrock Carburetor Thunder Series

Name: 800 CFM AVS2 Edelbrock Carburetor Thunder Series
Brand: Edelbrock
SKU: EK-61-852234-1
Price: 626.95 USD
Availability: InStock

Item EK-61-852234-1

6 Reviews of Edelbrock

Our Price

-0% $626.95 Was $626.95

Military, Medical & First Responders $31.35 Available in EK Cash Rewards.
Confirm Eligibility

Add to Cart

Save for later

Create a list

Name your new list Add to New List

Saved - View your saved items

We're sorry. We couldn't save this product at this time.

or use

Shop Owners Save More! Sign up for our dealer program

Join For FREE

Product Information

Features, Description, Q&A, Specs & Installation

Features

Annular Flow Booster Technology Brings Superior Fuel Atomization To All High-Horsepower Small- And Big-Block Engines
800 CFM Electric Choke Carburetor Specially Calibrated To Make Power
Eight Equally Spaced Orifices In The Booster Rings Replace Down-Leg Boosters To Refine Fuel Distribution
Eliminates Flat Spots And Improves Throttle Response In The Low- To Mid-RPM Range Without Sacrificing Top-End Power
No Power Valves To Blow Out, Making The Carburetor Unaffected By Engine Backfires
Metering Rods And Springs Can Be Changed Quickly Without Carburetor Removal Or Fuel Draining
Holds A Tune Better Than Other Carburetors, Keeping Performance Consistent
Updated Primary And Secondary Booster Clusters Offer Accurate Calibration For Modern Fuels And Octane Levels
Qwik-Tune Secondary Air Valve Allows Limitless Adjustment Of The Secondary Circuit With Simple Hand Tools
Two-Piece Design Enables Float Level Adjustments Or Internal Component Replacement Without Draining Fuel Or Removing Carburetor
Available With Electric Choke In Satin Finish
Designed, Manufactured, Assembled, And Calibrated In The USA
Metering Rod Size Is 0.065 X 0.052 Inches
Mounting Hole Quantity Is 8
Performance Grade Type
Mounting Hole Diameter Is 0.355 Inches
Four-Barrel Carburetor With Square Flange
Not Street Legal
Secondary Jet Diameter Is 0.104 Inches
Secondary Venturi Diameter Is 1.63 Inches
Aluminum Body Material
Main Venturi Diameter Is 1.525 Inches
Body Height Measures 3.25 Inches
No Spacer Included
Metering Rod Length Is 65 Inches
Bore Diameter: Primary And Secondary 1.75 Inches Each
Spring Force Of 5 Inches Hg (Orange)
Available To Order
Twelve Months Warranty Included
Electric Choke
Not Marine Approved
Rated At 800 CFM
Primary Jet Diameter Is 0.104 Inches

Description

Superior Fuel Atomization. The Edelbrock 800 CFM AVS2 Carburetor integrates advanced Annular Flow Booster technology designed to enhance fuel atomization for high-horsepower small- and big-block engines. It delivers EFI-like drivability with refined fuel distribution, improved throttle response, and consistent top-end power, making it ideal for performance applications where precision and reliability are critical.

Construction and Appearance. This carburetor features a robust aluminum body finished in a satin texture that combines durability with visual appeal. Its two-piece design facilitates ease of tuning and maintenance, and all components are engineered and calibrated in the USA to meet high-performance standards.

Installation. Installation is straightforward and does not require drilling. Adjustments such as metering rod changes and float level settings can be performed quickly without removing the carburetor or draining the fuel, ensuring minimal downtime.

Warranty. This product includes a twelve-month manufacturer warranty, providing assurance of its quality and durability.
