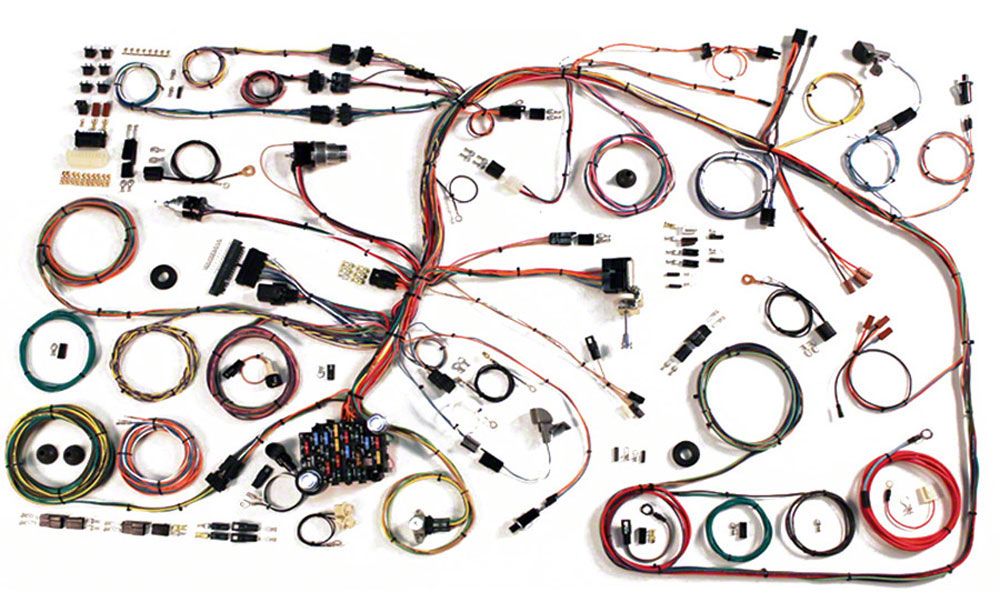

Complete Update Series Wiring Kit, F100-F350 (67-72 F-100; 67-72 F-250; 67-72 F-350)Find parts that fit my vehicle
Item EK-48-70974-1
Our Price
$1,501.49
Military, Medical & First Responders
$75.07 Available in EK Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A
Features
- Classic Update Kits Designed For Projects That Require More Circuits Than Original Chassis Harness
- Includes All Basics Needed To Rewire Vehicle From Headlight To Tail Light
- Accommodates Add-On Items Such As Electronic Fuel Injection, Aftermarket Gauges, And Supporting Modifications
- Updated ATC Fuse Panel And Fuses With Modern GXL Wire Throughout
- Wire Functions Labeled Every 3 To 5 Inches
- Pre-Built Dash Harness And Exclusive Gauge Cluster Disconnect System For Stock Or Aftermarket Instruments
- Engine And Front Light Harness With Extra-Long Leads For Custom Routing And Updated Engine/Transmission Combinations
- Original-Style Bulkhead Connectors Included
- Six-Way Power Accessory Plug For Convenient Power Source To Aftermarket Accessories
- Rear Body Wiring With Extra-Long Leads For Custom Routing
- 175 Amp Mega Fuse Kit With 6 Gauge Charge Cable To Support High Output Charging System And Internally Regulated Alternator
- Original-Replacement Connectors, Terminals, And Lamp Sockets
- Headlight Switch With 26 Amp Internal Circuit Breaker And New Floor Dimmer Switch
- Steering Column Adapter Kit For Stock Or Aftermarket Columns
- Replacement Ignition Switch Compatible With HEI And EFI Swaps
- New Wiper Switch Included
- Fits 67-72 F-100; 67-72 F-250; 67-72 F-350
Description
Complete Wiring Solution. The Complete Wiring Kit, F100-F350, 1967-1972, provides a comprehensive electrical wiring upgrade designed to replace the original harness for enhanced circuit capacity and modern compatibility. This kit facilitates seamless integration of electronic fuel injection, aftermarket gauges, and essential modifications, ensuring reliable and efficient vehicle function. Ideal for full rewiring from headlight to tail light, it supports both stock and customized automotive systems.
Construction and Appearance. The kit features high-quality modern GXL wire known for durability and resistance to heat and abrasion, with wire functions clearly labeled every 3 to 5 inches for ease of installation. It includes an updated ATC fuse panel, original-style connectors, terminals, lamp sockets, and a 175 amp mega fuse kit supported by a 6 gauge charge cable. The components provide a durable and reliable finish consistent with factory standards yet upgraded for modern performance.
Installation. Installation requires moderate automotive electrical knowledge but no drilling or modifications are typically necessary. The pre-built dash harness, bulkhead connectors, and extra-long leads simplify routing and connection, making the rewiring process efficient and straightforward for restoration or custom projects.
Application. Designed exclusively for 1967-1972 Ford Truck models including F-100, F-250, and F-350, ensuring perfect fitment and compatibility with these vehicles during that production period without exclusions.
