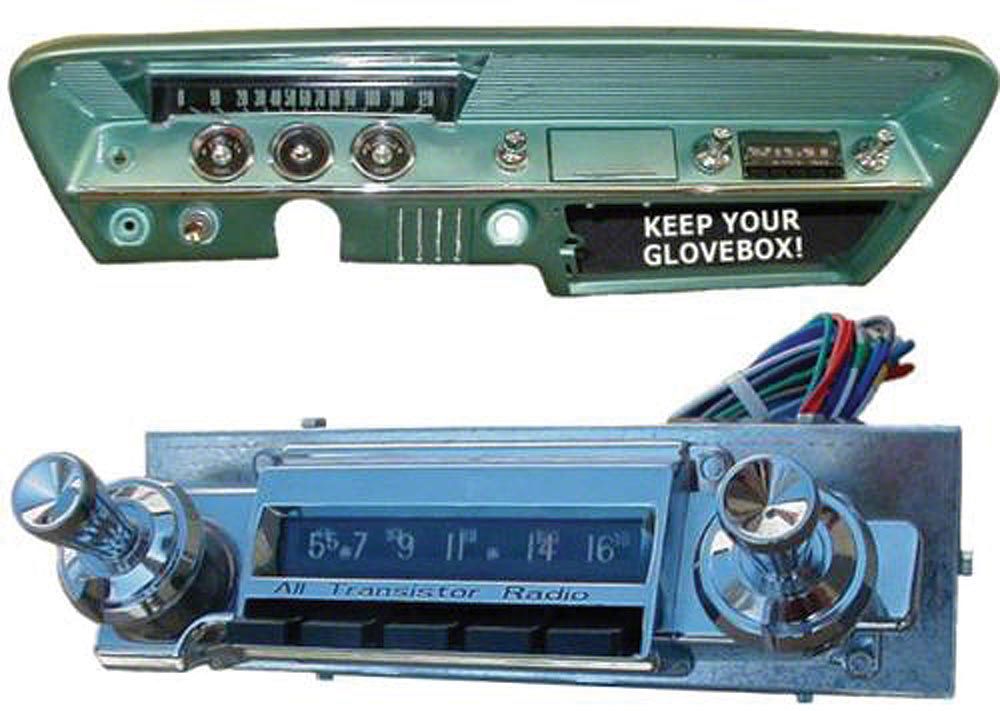

AM/FM Radio (61-62 Biscayne; 61-62 Impala)
Item EK-40-212425-1
Clearance
Clearance Price
$1,024.99
Military, Medical & First Responders
$51.25 Available in EK Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- Small Size, Big Features
- Designed To Look, Fit And Feel Just Like The Original
- Radio Case 3.5” Deep To Allow Room For Electric Wipers And Air Conditioning
- Exact Copy Of Original AM Scale On Dial Glass
- Smaller FM Dial Scale Hidden Along The Bottom Of The Background
- Switch Between AM And FM By Turning Radio Off And On Again
- No Digital Display
- Dial Pointer, Knobs And Pushbuttons Move And Work Like Original When Powered On
- Bluetooth® For Wireless Audio Streaming And Hands-Free Phone Control
- 3.5mm Auxiliary Port For Compatible Devices Such As MP3 Or CD Players
- Additional Input Jack For Foot Control Switch
- Comes With 12 ½” 12 Wire Harness With Male And Female Connections
- Harness Includes Power, Ground, 12-Volt Output, 4 Speaker Connections, And Dial Lights
- Four Channel RCA Outputs Plus Subwoofer RCA Output For External Amplifier
- Chrome-Plated Die-Cast Nose Piece Matches Original
- High-Quality Chrome-Plated Die-Cast Knobs And Backrings Match Original
- Black Plastic Molded Pushbuttons Look Like Original
- Programmable For North American Or European Channel Spacing
- Digitally Tuned AM/FM Stereo Receiver Provides Stable, High-Quality Reception
- Bluetooth® 5.0 Includes Built-In Microphone For HFP With Supported Profiles
- Programmable Audio Equalizer In Bluetooth® Mode
- Compatible With XM Radio Receivers Via 3.5mm Input
- Radio Output 180 Watts RMS (45W X 4 Speaker Channels At 4 Ohms, 14.4V, 1 kHz)
- Protective Circuit Shuts Down If Speaker Wire Is Grounded Or Faulty
- Speaker Recommendations Are 40+ Watts RMS Rating, 4 Ohms, SPL 88+
- Operates On 11.5-16 Volts DC, Negative Ground Only
- Control Shafts Match Original Size And Thread, Including Mounting Nuts And Shaft Baskets
- Control Functions Include On/Off, Volume, Tone, Tuning, Balance, And Hidden Fader
- Pushbuttons Save 5 FM And 5 AM Preset Stations, Also Control Bluetooth® Functions
- Memory Retention For Presets And Settings Without Constant Power
- Warm White LED Dial Lights To Match Original
- Standard Motorola Antenna Jack On Radio Back
- 9” Mounting Backstrap Included
- Fits 61-62 Biscayne; 61-62 Impala
Description
Authentic Classic Radio. The AM/FM radio restores vintage sound and style to classic Chevrolet vehicles while incorporating modern features. It offers wireless Bluetooth® audio streaming and hands-free calling, preserving the timeless dashboard aesthetic. Ideal for enthusiasts seeking both nostalgia and modern convenience.
Construction and Appearance. The radio features a chrome-plated, die-cast nose piece, knobs, and backrings that replicate the original factory design. Black plastic molded pushbuttons and warm white LED dial lights maintain an authentic look. The compact 3.5” deep case accommodates modern vehicle electrical components without requiring modifications.
Installation. Installation is straightforward with no drilling required. The radio’s design allows easy interchange with the original unit using the supplied 12 ½” wiring harness and mounting hardware that match original specifications.
Application. This radio fits 61-62 Chevrolet Biscayne and Impala models precisely and requires no dash modifications. It maintains the classic appearance while upgrading functionality with modern audio features.
