1958-1972 Chevy Wilwood Master Cylinder Kit, Tandem, Black Electrocoated Aluminum, with Bracket & Valve, 1.00 Bore

Item EK-40-382713-1
3 Reviews of Wilwood
Our Price

$441.10

Military, Medical & First Responders $22.06 Available in EK Cash Rewards.
Confirm Eligibility

Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

      • Aluminum Tandem Master Cylinder Kit with Bracket and Valve
      • Bore Size: 1.00"
      • Area: 0.780 in²
      • Stroke: 1.10"
      • Type: Tandem Outlet
      • Outlets: 2
      • Material: Aluminum
      • Finish: Black E-Coat
      • Integral Reservoir with Dual Chambers
      • Reservoir Size: 8.0 oz (front) / 4.8 oz (rear)
      • Reservoir Volume: 14.4 cu in (front) / 8.7 cu in (rear)
      • Outlet #1 Size: 1/2-20
      • Outlet #1 Fit: 3/8-24 IF or 1/2-20 IF
      • Outlet #2 Size: 1/2-20
      • Outlet #2 Fit: 3/8-24 IF or 9/16-18 IF
      • Overall Length: 8.76"
      • Flange to End Length: 8.15"
      • Fits OE Mounts Including Chrysler, Corvette, GM, and Ford Mustang Bolt Patterns
      • Suitable for Manual or Power Brake System Applications

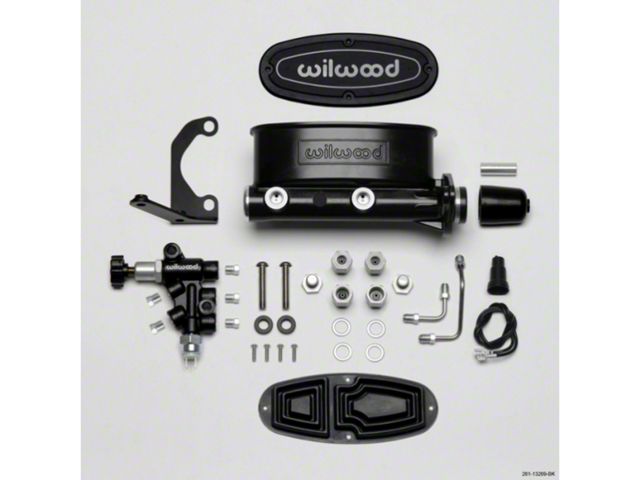

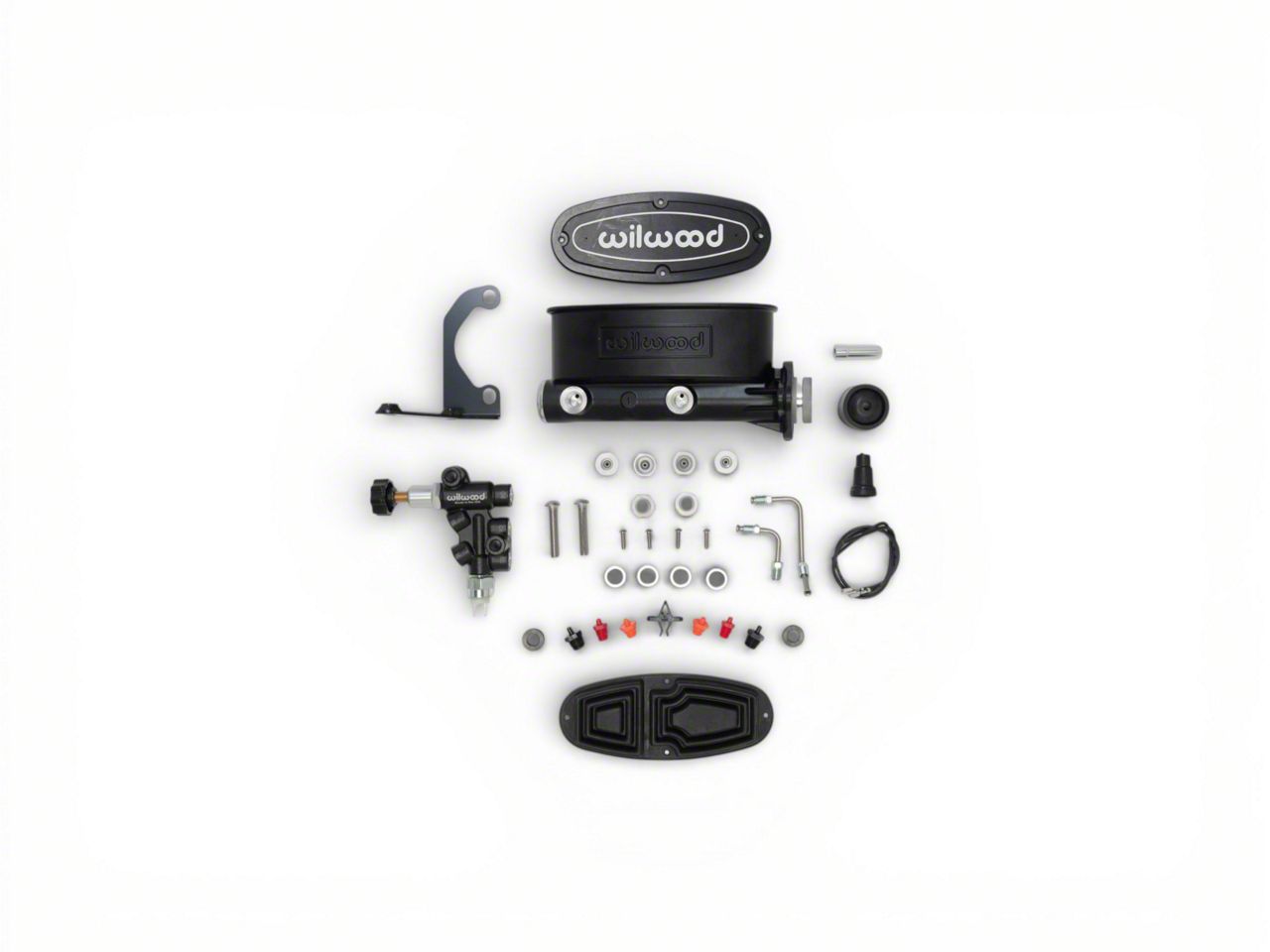

      • Includes Combination Proportioning Valve, Mounting Bracket, and Stainless Steel Fluid Tubes with Button Head Fasteners

      Description

      Tandem Master Cylinder Kit. The Wilwood 1958-1972 Chevy Master Cylinder Kit, Tandem, Black Electrocoated Aluminum, with Bracket and Valve, 1.00" Bore is engineered to provide precise brake pressure control and efficient fluid management for improved braking performance. It converts pedal force into hydraulic pressure, reliably operating both front and rear brake circuits.

      Construction and Appearance. Constructed from lightweight aluminum, this master cylinder combines strength with corrosion resistance provided by a black electrocoat finish. The design includes an integral reservoir with dual chambers to separately manage fluid for front and rear circuits.

      Installation. The kit mounts easily using the slotted flange compatible with many original equipment bolt patterns. Typically, no drilling is required, ensuring a straightforward upgrade on compatible vehicle models.

      Application. Compatible with OE mounts featuring bolt patterns for Chrysler, Corvette, General Motors, and Ford Mustang vehicles, this master cylinder kit is suitable for use with both manual and power brake systems.

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      4.8

      Reviews of Wilwood Classic Brakes Products (3)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Impala

      • Base - 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72
      • SS - 64, 65, 66, 67
