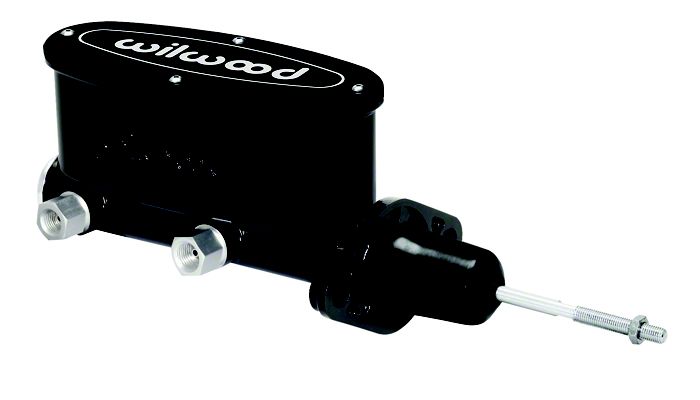

1958-1972 Chevy Wilwood Aluminum Tandem Master Cylinder with Pushrod, 7/8 Bore

Item EK-40-382663-1
Verify parts fit and get product recommendations.
All Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Our Price

$277.99

Market Price $319.69 You Save 13% ($41.70) Up to 10% off for Military & First Responders! See Details

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Add to Cart
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

      Product Information

      Features, Description, Q&A

      Features

      • Designed Primarily For Manual Application
      • Black Electrocoat Finish
      • For Mount Flanges From 3.22" to 3.40"
      • Fluid Outlets Both Sides of Bore
      • Stroke Set at 1.10:, Volume Ratio of 2:1
      • Only 3 Lbs - 75% Lighter Than OE Cast Iron
      • 12.26" OA Length
      • Eckler OEM Number: 260-9439-BK

      Description

      Wilwood’s 7/8" or 15/16" bore Tandem Aluminum Master Cylinders available in 3 finishes, plain, ball burnished, and black e-coat. These master cylinders are designed primarily for manual applications and include a pushrod. They’re designed for mount flanges from 3.22” to 3.40”, common measurements for most domestic cars and trucks from the mid 1960s to present, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.10” with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders.
