SKU
80-455827-1

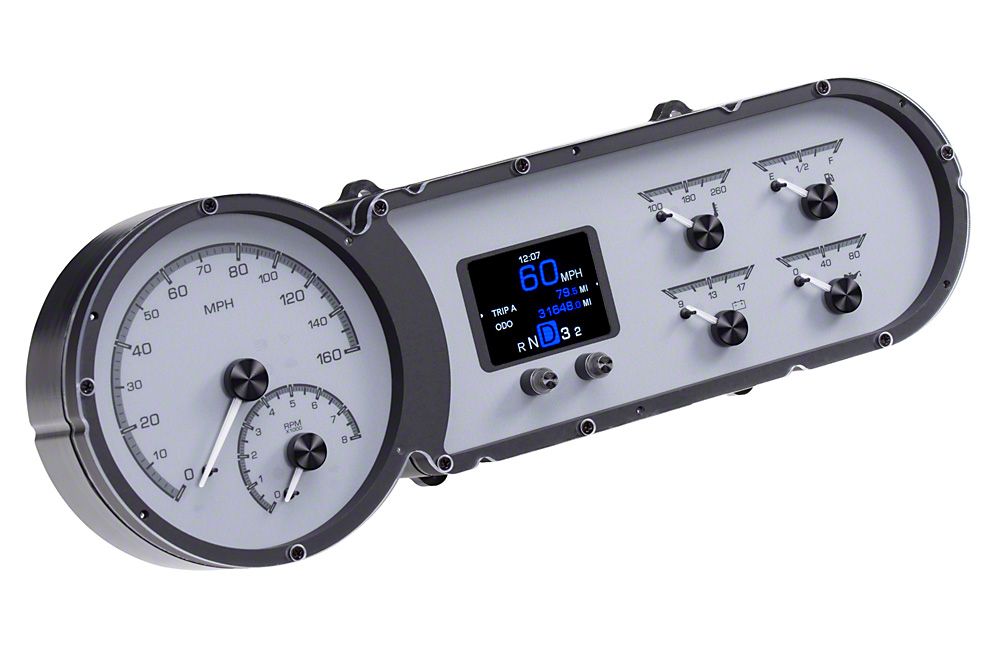

1953-54 Chevy Dakota Digital HDX System, Silver Alloy

0% of 100
0  Reviews Add Your Review
$1,280.99 Kit
Fitment
Bel Air, 1953 thru 1954 View More
Product Details
Bezel not included, shown for visual/presentation purp... View More
Availability: Ships Direct From Manufacturer

  • Bezel not included, shown for visual/presentation purposes.
    System uses OEM or reproduction style bezel.
The HDX series from Dakota Digital is the latest in aftermarket automotive instrumentation technology. HDX takes personalization and usability to a whole new dimension while retaining your favorite features from the wildly popular VHX-series such as LED backlighting for the numbers, tick marks and dead-faced dash indicators (turn signals, high beam, check engine, cruise control engaged and parking brake). Illuminated needles and a lifetime warranty are still part of the deal as well.  These features add up to a clean, easy to read instrument system in all conditions. Precision stepper motors provide accurate needle movement along with a full-sweep at key-on, and the needle hubs are black nickel plated spun-aluminum.

Available with your choice of black or silver alloy gauge-face styling, each HDX system allows the user to select their favorite illumination color for the gauge readings and needles, as well as the TFT message center displays. RGB LEDs are incorporated into the circuit boards for fully-adjustable display colors, allowing the user to personalize their instrument system to match nearly any vehicle theme.

Calibration and personal settings can be manipulated with the lighted, capacitive-touch buttons integrated into each HDX system, or the available Bluetooth app for Apple and Android devices.  With the instrument system dialed in, including calibration of the speedometer and fuel gauge, the system can calculate your remaining fuel range, expressed in miles to empty.   Every kit is supplied with an optional buzzer for feedback each time a button is pressed. Further, the buzzer can emit a warning tone for each reading at a user-defined set point to coincide with the dead-faced, red warning lights incorporated into the gauge faces.

Vehicle integration through a central control box has become a calling card for Dakota Digital, and the advantages are substantial. Most notably, installation is greatly simplified; two power (constant and switched) and one ground connection get things up and running, while vehicle-harness sourced signals and sensor inputs run cleanly to their respective terminal. Supplied, solid state sending units with weather-tight harnesses ensure trouble-free operation. The control box allows for easier service, a nicer-looking finished product, in addition to an abundance of technology packed into a vintage dashboard.

More Information
Eck Dax Part Number 455827
Brand Dakota Digital
Availability Ships Direct From Manufacturer

Products from the same brand

Make / Model Series Body Notes Year
Make / Model Chevrolet Bel Air Base Series Body Notes Year 1953, 1954
Make / Model Chevrolet One-Fifty Series Base Series Body Notes Year 1953, 1954
Make / Model Chevrolet Sedan Delivery Base Series Body Notes Year 1953, 1954
Make / Model Chevrolet Two-Ten Series Base Series Body Notes Year 1953, 1954
Make / Model Chevrolet Two-Ten Series Del Ray Series Body Notes Year 1954
