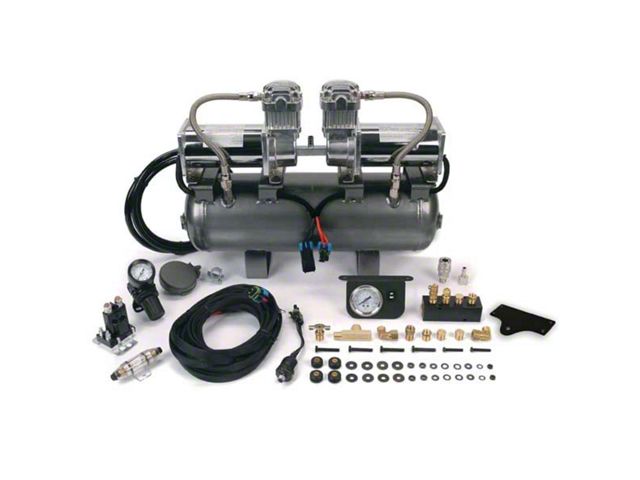

Viair High Pressure 2 on 2 Air Compressor System; 200 PSI / 2.54 CFM (Universal; Some Adaptation May Be Required)
Item EK-61-911684
Our Price
$900.75
Military, Medical & First Responders
$45.04 Available in EK Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- Two High Output Compressors Mounted To A 2.0 Gallon Air Tank
- Maximum Working Pressure: 200 PSI
- Includes Easy-To-Install Wiring Harness And Manifold For Wiring And Plumbing
- 2.54 CFM @ 0 PSI
- 12-Volt Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI, 55% @ 200 PSI
- Max Amp Draw: 44 Amps
- Ingress Protection Rating: IP67 Dust and Waterproof
- Operating Temperature Range: -40°F To +158°F
- Dimensions: 18.5 Inches Long x 5.9 Inches Wide x 13.5 Inches High
- Net Weight: 30 Pounds
- Pre-Installed 2.0 Gallon 5-Port Air Tank
- Two 380C Air Compressors With Thermal Overload Protection
- Includes Two 1/4 Inch Stainless Steel Braided Leader Hoses With JIC Fittings
- Comes With T-Fitting For Remote Mount Filter And 1/4 Inch NPT Drain Cock
- Sealed Pressure Switch With Delphi Connectors (165 PSI On, 200 PSI Off)
- Two Loomed Compressor Wires Terminated With Delphi Connectors
- Inline Fuse Holder With Fuse And 1/4 Inch NPT Safety Valve
- Includes Four 1/4 Inch NPT Male Recessed Plugs
- Included 60-Amp Fuse And Fuse Holder, 80-Amp Relay
- Adapters For Air Lockers And Various Fittings
- Wiring Harness With Delphi Connectors And Plug Kits
- Billet 6-Port Manifold With Mounting Bracket
- Air Filter Housing With Installed Element And Two Replacement Filter Elements
- Dash Panel Air Pressure Gauge (0-160 PSI Illuminated)
- Air Pressure Regulator And 15-Foot DOT Air Line
- Universal 2 on 2 Bolt-On Platform Systems Not Equipped With Crossmember Mounting Bracket
- Fits Universal; Some Adaptation May Be Required
Description
High Performance Air Compressor System. The Viair High Pressure 2 on 2 Air Compressor System delivers rapid tire inflation and a reliable air supply for off-road and heavy-duty applications. It features dual high output compressors paired with a 2.0 gallon tank, providing a maximum working pressure of 200 PSI and an output of 2.54 CFM at 0 PSI for efficient operation. This system is ideal for faster fill rates on large off-road tires and accessories.
Construction and Appearance. Constructed with durable materials including a billet 6-port manifold and stainless steel braided leader hoses, this system is designed to withstand harsh environments. It includes a permanent magnetic motor rated for continuous duty at 100 PSI, offers a high ingress protection rating of IP67 for dust and water resistance, and features a robust sealed pressure switch. The finish prioritizes durability and functionality, suitable for rugged use.
Installation. Installation is straightforward with the included wiring harness, Delphi connectors, and manifold for wiring and plumbing. The process typically does not require drilling, though some adaptation may be necessary depending on the vehicle and mounting location.
Application. This system is designed for universal fitment; some adaptation may be required to accommodate specific vehicle setups or mounting configurations.
