Scott Drake 2-Row Aluminum Radiator (64-66 Mustang w/ Automatic Transmission & Late Model 302 Swap)Find parts that fit my vehicle

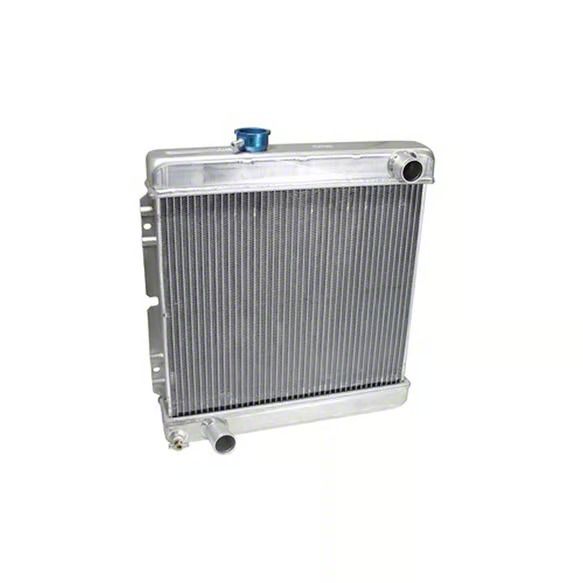

Name: Scott Drake 2-Row Aluminum Radiator (64-66 Mustang w/ Automatic Transmission & Late Model 302 Swap)
Brand: Scott Drake
SKU: EK-44-924561

Item EK-44-924561

Eckler's no longer carries the Scott Drake 2-Row Aluminum Radiator (64-66 Mustang w/ Automatic Transmission & Late Model 302 Swap). Please check out 1964-1973 Ford Mustang Engine for an updated selection.

Shop Owners Save More! Sign up for our dealer program

Join For FREE

Product Information

Features, Description, Q&A

Features

Scott Drake High Performance 2-Core Aluminum Radiator
Ultimate Cooling Solution For 1964.5-66 Mustangs Running Late Model 5.0L V8
Heavy-Duty Radiators Featuring Extra Large 1" Tubes For 4 Row Efficiency Without Added Weight
Equipped With Exclusive Baffle On Top Tank To Evenly Distribute Hot Water Flow
Baffle Design Addresses Original Radiator’s Hot Water Distribution Issues On Far Right Side
Extensively Tested And Recorded Significant Temperature Changes Across Cooling Tubes
Integrated Automatic Transmission Cooling Lines Included
Brass Petcock Drain Included
Compatible With Both Automatic And Manual Transmission Vehicles
Down Flow Design
Natural Finish
Hose Inlet Located On Passenger Side
Hose Outlet Located On Driver Side
Inlet Diameter: 1 1/2 Inches
Outlet Diameter: 1 3/4 Inches
Material Constructed From Aluminum
Clamp On Mounting Type
Transmission Oil Cooler Included
Does Not Include Radiator Cap
Fits 64-66 Mustang w/ Automatic Transmission & Late Model 302 Swap

Description

High Performance Cooling. The Scott Drake 2-Row Aluminum Radiator provides a superior cooling solution designed specifically for late model 5.0L V8 swapped Mustangs from 1964.5 to 1966. This radiator ensures efficient heat dissipation to maintain optimal engine temperature, enhancing performance and reliability under demanding conditions.

Construction and Appearance. Crafted from lightweight aluminum, the radiator features heavy-duty 1-inch tubes that deliver the cooling capacity of a 4-row radiator without the added weight. It comes with a natural aluminum finish and includes an exclusive baffle system designed to optimize hot water flow distribution within the core, improving coolant efficiency especially on the far right side.

Installation. Installation is straightforward with clamp-on mounting that requires no drilling. The radiator integrates seamlessly with both automatic and manual transmission configurations and includes connections for transmission cooling lines.

Application. Specifically designed to fit 64-66 Mustang with Automatic Transmission & Late Model 302 Swap.
