How to Maintain a Numbers-Matching Look When Upgrading Your Chevy Tri-Five Radiator

When you're restoring a '55, '56, or '57 Chevy, every detail matters. You want the authenticity of a numbers-matching build, but let's be real: those original copper and brass radiators weren't exactly known for their stellar performance. The good news? You can have your cake and eat it too. With the right approach, you can upgrade to a modern aluminum radiator that keeps your Tri-Five running cool while maintaining that factory-correct appearance that serious collectors and show judges appreciate. Shop Tri-Five Radiators

Characteristics of a Tri-Five Radiator

Original radiators for the Tri-Fives were copper and brass construction with a downflow design, meaning coolant enters at the top and exits at the bottom. These units have specific mounting positions that differed between six-cylinder and V8 applications with unique core supports for each engine. Six-cylinder radiators mounted differently than V8 units, with the mounting flanges facing different directions. V8 core supports had the mounting flanges facing the engine with a bottom baffle, while six-cylinder supports had flanges facing the grille. These details matter when you're selecting a replacement that won't compromise the authenticity in your engine bay. Original Tri-Five radiators also featured period-correct fittings, including transmission cooler connections on automatic transmission models. The inlet and outlet positions were standardized, with typical measurements of 1.5 inches on the inlet and 1.75 inches on the outlet. Getting these details right means your upgraded radiator will work flawlessly with existing hoses and fittings eliminating visible changes.

Why Upgrade the Radiator?

Let's face it, factory Tri-Five radiators were barely adequate when these cars were new, and they're even less capable of handling today's driving conditions. Modern traffic patterns mean more idling time, and if you've added any performance upgrades to your small block or swapped in a big block, the original cooling system is simply outmatched. Copper and brass radiators corrode over time, develop leaks, and aren’t as efficient as the core gets restricted with sediment and scale. Even a professionally restored original radiator won't cool as effectively as a modern aluminum one. Aluminum dissipates heat faster and more efficiently than copper and brass, typically improving cooling performance by 30 to 40 percent. That's a significant upgrade, especially if you're driving your Tri-Five regularly rather than just trailering it to shows. Beyond performance, aluminum radiators are considerably lighter than their copper and brass counterparts, often weighing 50 to 75 percent less. It affects handling and overall vehicle dynamics, plus it makes installation much easier when you're working in your garage without a lift. The durability factor also matters: aluminum radiators resist corrosion better and typically come with lifetime warranties, making them a one-time investment rather than a recurring maintenance headache.

Radiators that Fit the Build

The key to maintaining a numbers-matching appearance lies in selecting direct-fit replacements rather than universal radiators that require adapters or mods. Here are three excellent options from Ecklers that deliver modern performance while respecting your restoration's authenticity.

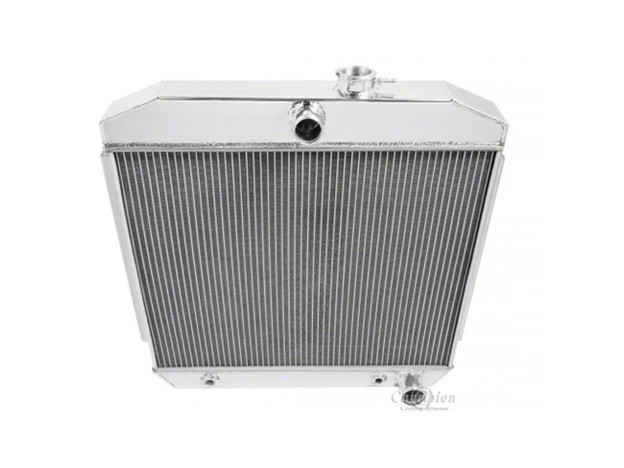

Champion 3-Row Aluminum Radiator

For V8-powered Tri-Fives looking for maximum cooling capacity, the Champion 3-Row Aluminum Radiator offers an exceptional balance of performance and value. This unit features three rows of 0.63-inch tubes in an all-aluminum construction that cools up to 650 horsepower while maintaining factory dimensions. The 16-pound radiator cap and included transmission cooler ensure you're covered for either manual or automatic transmission applications.

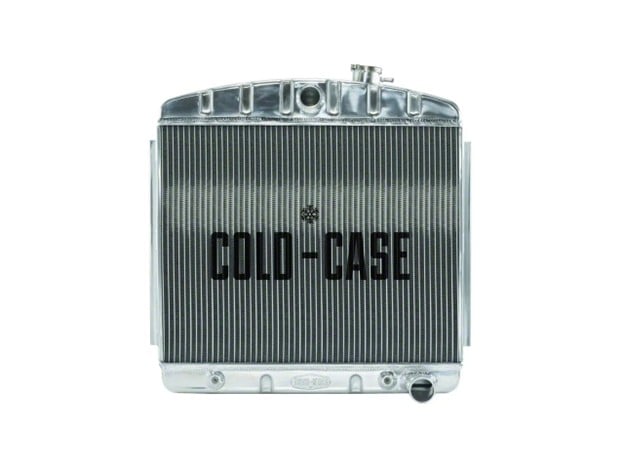

Cold Case Performance Big 2-Row Polished Aluminum Radiator

If you're working with a six-cylinder build or need to mount your radiator in the forward six-cylinder position while running a V8, the Cold Case Performance Polished Aluminum Radiator, Big 2 Row is an outstanding choice. This radiator features TIG-welded construction with correct stampings that make it nearly indistinguishable from an original unit once painted. The oversized two-row design with 1.25-inch tubes and 16 fins per inch outperforms smaller three- and four-row radiators that might seem more substantial but actually restrict airflow.

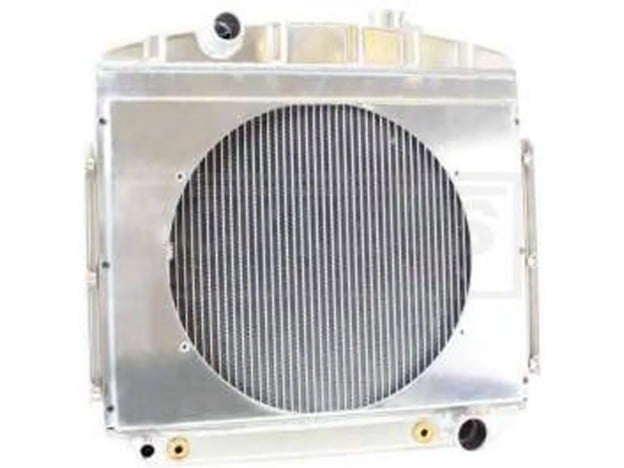

Griffin Tri 5 Universal Fit Aluminum Radiator

If you’re after a complete cooling solution with minimal modification, the Griffin Tri 5 Universal Fit Aluminum Radiator with Shroud combines direct-fit convenience with excellent cooling function. This system works with both V8 and six-cylinder core supports, featuring Griffin's MaxCool technology with two rows of 1.25-inch tubing. The included shroud and provisions for optional electric fan kits make this an ideal choice if you want modern reliability without visible compromises to authenticity.

Installation Tips for Maintaining Authenticity

Once you've selected the right radiator, proper installation ensures it looks factory correct. Start by thoroughly cleaning your core support and checking for any damage or rust that needs attention before the new radiator goes in. Original-style mounting hardware, brackets, and rubber insulators should be replaced with correct reproductions available from Ecklers to maintain that authentic appearance. Pay attention to hose routing and clamp placement. Period-correct hose clamps and properly fitted radiator hoses make a significant difference in the finished appearance. If your new aluminum radiator includes modern fittings that look out of place, consider having them painted to match the radiator finish, which helps them blend in when viewed from above.

Keeping Your Tri-Five Cool

Upgrading your Tri-Five's radiator doesn't mean abandoning your commitment to authenticity. With direct-fit aluminum radiators that respect original mounting positions, fittings, and dimensions, you can enjoy cooling performance that protects your investment while maintaining the numbers-matching appearance that makes your Bel Air, 210, or 150 special. Ready to upgrade your cooling system while preserving your Tri-Five's authentic character? Find the right radiator at Ecklers, where quality restoration parts meet modern performance solutions.
