1958-96 MSD 6AL Multiple Spark Discharge Ignition

Item EK-61-103440-1
6 Reviews of MSD
Our Price

$354.95

Military, Medical & First Responders $17.75 Available in Eckler's Cash Rewards.
Confirm Eligibility

Save with Open Box

From $248.47

Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A

      Features

        _x000D_
      • Built-In Adjustable Rev-Limit Control with Two Rotary Dials to Set Limit in 100 RPM Increments
        • _x000D_
      • Microprocessor Monitors and Controls Every Firing and Rev Limit for Improved Efficiency
        • _x000D_
      • Efficient Components Produce More Power While Drawing Less Current
        • _x000D_
      • Delivers Over 530 Volts to Coil with Up to 135mJ of Spark Energy Per Firing
        • _x000D_
      • Supplied with Wiring Harness and Vibration Mounts for Secure Installation
        • _x000D_
      • Compatible with 4, 6, or 8-Cylinder Engines with 12-Volt, Negative Ground Electrical Systems
        • _x000D_
      • Accepts Trigger Inputs from Breaker Points, Amplifiers, and Magnetic Pickups
        • _x000D_
      • Wiring Routed Through Sealed, Locking Connector for Neat and Reliable Installation
        • _x000D_
      • Built-In LED for System Checks
        • _x000D_
      • Operates on 12-15 Volts with 7 Volt Start
        • _x000D_
      • 0.7 Amp Per 1,000 RPM Current Draw
        • _x000D_
      • Surface Mount Design with Vibration Mounting Hardware Included
        • _x000D_
      • Maximum RPM 11,000
        • _x000D_
      • Primary Voltage Range 520-540 Volts
        • _x000D_
      • Secondary Voltage 45,000 Volts
        • _x000D_
      • Spark Energy Range 135-145 Millijoules per Spark
        • _x000D_
      • Performance Grade Digital 6AL Ignition Control Box
        • _x000D_
      • Dimensions: 8 Inches Length, 4 Inches Width, 1.825 Inches Height
        • _x000D_
      • Weight: 1.7 Pounds
        • _x000D_
      • Fits Vehicles Compliant with Emissions Controlled Vehicle Standards per CARB EO D-40-43
        • _x000D_

      Description

      Advanced Ignition Control. The MSD 1958-96 MSD 6AL Multiple Spark Discharge Ignition is a sophisticated ignition control unit engineered to optimize engine performance by precisely managing spark delivery and rev limiting. It increases spark energy and efficiency, essential for improved combustion and power output. This ignition control is ideal for high-performance and emissions-compliant vehicles requiring reliable and adjustable spark control.

      _x000D__x000D_

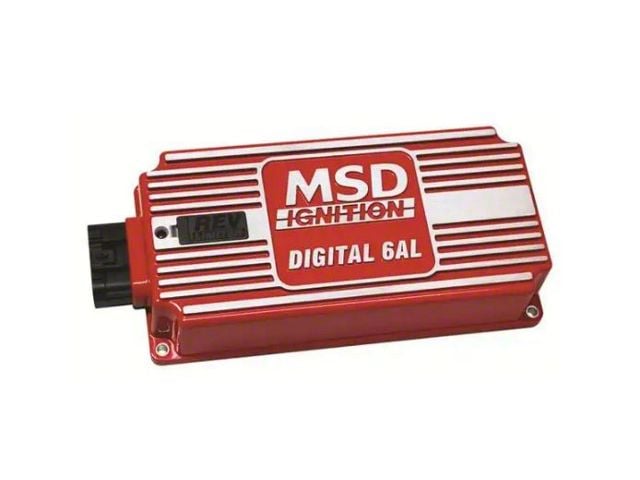

      Construction and Appearance. Housed in a durable red casing, the unit features a sealed, locking connector to protect internal electronics and maintain a clean wiring setup. It includes robust internal components for efficient power consumption and high voltage output. The compact surface mount design comes with vibration mounts and a wiring harness for a secure and professional installation.

      _x000D__x000D_

      Installation. Installation is straightforward with no drilling required, utilizing the supplied wiring harness and vibration mounts. The sealed connector system simplifies wiring, making installation suitable for both enthusiasts and professionals.

      _x000D__x000D_

      Warranty. This ignition control includes a manufacturer’s limited one-year warranty covering defects in materials and workmanship.

      _x000D__x000D_

      Application. Designed for use on emissions-controlled vehicles meeting California Air Resources Board (CARB) Executive Order D-40-43, it suits engines with 4, 6, or 8 cylinders and 12-volt negative ground electrical systems. Proper use according to manufacturer guidelines is necessary to maintain emissions compliance.
