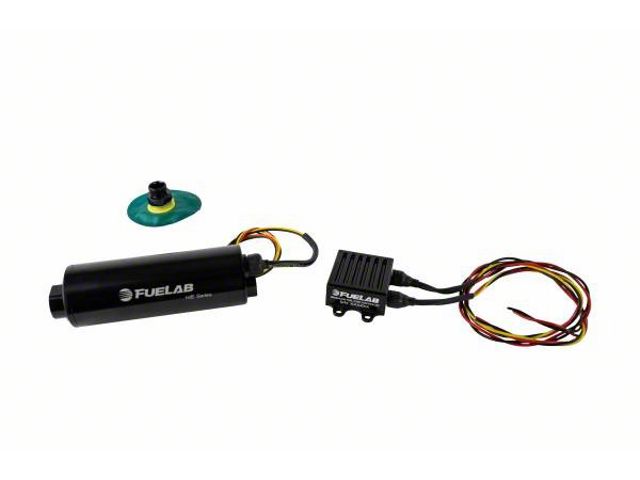

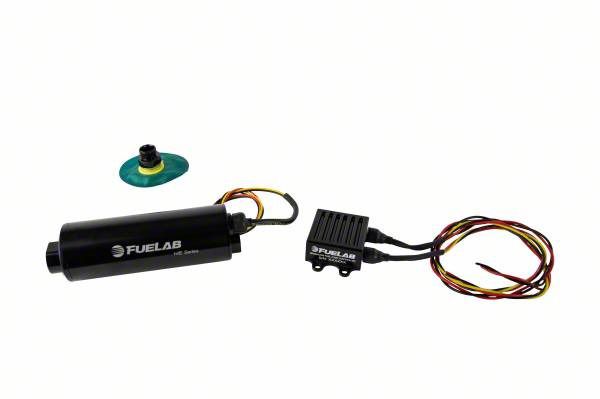

Fuelab In-Tank Twin Screw Brushless Fuel Pump Kit; -8AN; 625 LPH (Universal; Some Adaptation May Be Required)
Item EK-57-917518
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- In-Tank Fuel Pump Kit Contains 625lph Twin Screw Brushless Pump, Remote Mount PWM Controller, And 65 Micron Straining Filter _x000D_
- Compatible With Gasoline, Diesel, Methanol, And Ethanol _x000D_
- Twin Screw Rotor Pumping Mechanism _x000D_
- 125PSI Max Operating Pressure _x000D_
- Supports Up to 1500HP at Continuous Speed Pumping Gas Naturally Aspirated _x000D_
- Higher Efficiency Means Less Current Draw And Reduced Noise _x000D_
- Superior Priming Capabilities _x000D_
- Greater Resistance To Cavitation And Vapor Lock _x000D_
- Lightweight Super-Efficient DC Brushless Motor Minimizes Current Draw _x000D_
- Powerful High Flux Density Neodymium Rare Earth Magnets _x000D_
- No Motor Brushes To Wear Out Or Corrode; Suitable For Low-Sulfur Diesel _x000D_
- Wet Motor Design With No Dynamic Shaft Seals To Wear Out _x000D_
- Compatible With 12 To 16 Volt Vehicle Electrical Systems _x000D_
- Includes Model 72004 Pump Controller For Full Speed PWM Or 0-5V Input Speed Control _x000D_
- Continuous Duty Motor Speed _x000D_
- Compact, Lightweight Design Weighing Less Than 3 lbs _x000D_
- Billet Aluminum Construction With Anodizing Per MIL-A-8625 Type II _x000D_
- Long Life Mult-Fuel Compatible Fluorosilicone Static Seals _x000D_
- Accepts Standard Or Port Style -8AN Fittings _x000D_
- Compatible With Most Aftermarket ECUs With PWM Output Frequency _x000D_
- Compatible From 100Hz To 5000Hz PWM Input _x000D_
- Designed For Universal Fit; Some Adaptation May Be Required _x000D_
Description
Premium Fuel Delivery. The Fuelab In-Tank Twin Screw Brushless Fuel Pump Kit; -8AN; 625 LPH is engineered for high flow and efficiency to meet the demands of modern and high-performance engines. This comprehensive kit features a robust twin screw pump, a versatile PWM controller, and a fine 65-micron straining filter to ensure a reliable fuel supply compatible with gasoline, diesel, methanol, and ethanol. It supports continuous operation at power levels up to 1500HP, making it ideal for applications requiring consistent and efficient fuel delivery.
_x000D__x000D_Construction and Appearance. Built from billet aluminum with MIL-A-8625 Type II anodized finish, this fuel pump offers excellent durability and corrosion resistance. Its brushless DC motor incorporates powerful neodymium rare earth magnets for superior magnetic flux and longevity. The pump uses long-life fluorosilicone static seals that are multi-fuel compatible and resistant to chemical degradation. Despite its advanced capabilities, the assembly remains compact and lightweight, weighing less than 3 pounds.
_x000D__x000D_Installation. The in-tank design requires moderate expertise for installation but does not involve complex modifications or drilling. The included remote mount PWM controller supports multiple input types, allowing straightforward integration with existing vehicle electrical systems and aftermarket ECUs.
_x000D__x000D_Warranty. This product is backed by a limited lifetime warranty, reflecting its premium quality and reliability.
_x000D__x000D_Application. Suitable for universal use; some adaptation may be necessary depending on the specific vehicle and fuel system configuration.
