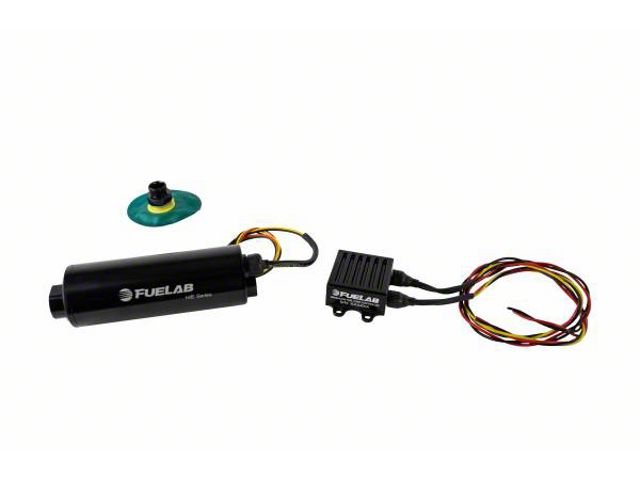

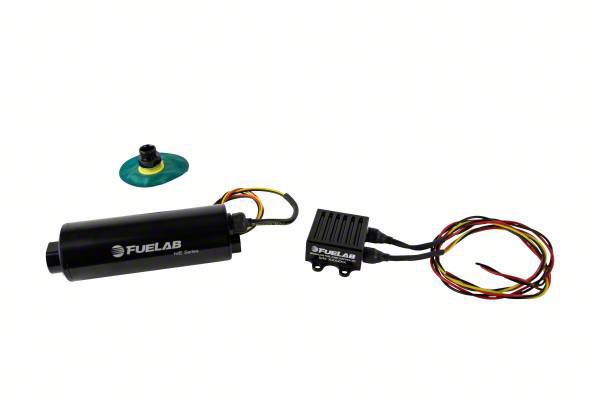

Fuelab In-Tank Twin Screw Brushless Fuel Pump Kit; -8AN; 550 LPH (Universal; Some Adaptation May Be Required)

Item EK-57-917517
Product Image
Eckler's no longer carries the Fuelab In-Tank Twin Screw Brushless Fuel Pump Kit; -8AN; 550 LPH (Universal; Some Adaptation May Be Required). Please check out Tri-Five Engine for an updated selection.
1 Reviews of Fuelab
Shop Owners Save More! Sign up for our dealer program
Join For FREE

    Product Information

    Features, Description, Q&A

    Features

      _x000D_
    • In-Tank Fuel Pump Kit Contains 550lph Twin Screw Brushless Pump, Remote Mount PWM Controller, and 65 Micron Straining Filter
      • _x000D_
    • Compatible With Gasoline, Diesel, Methanol, and Ethanol
      • _x000D_
    • Twin Screw Rotor Pumping Mechanism
      • _x000D_
    • 125 PSI Max Operating Pressure
      • _x000D_
    • Supports Up to 1250 HP at Continuous Speed for Naturally Aspirated Pump Gas
      • _x000D_
    • Higher Efficiency Means Less Current Draw and Less Noise
      • _x000D_
    • Superior Priming Capabilities
      • _x000D_
    • Greater Resistance to Cavitation and Vapor Lock
      • _x000D_
    • Lightweight, Super-Efficient DC Brushless Motor to Minimize Current Draw
      • _x000D_
    • Powerful High Flux Density Neodymium Rare Earth Magnets
      • _x000D_
    • No Motor Brushes to Wear Out or Corrode; Low-Sulfur Diesel Compatible
      • _x000D_
    • Wet Motor Design with No Dynamic Shaft Seals That Can Wear Out
      • _x000D_
    • 12 to 16 Volt Vehicle Electrical System Compatibility
      • _x000D_
    • Model 72004 Pump Controller Included for Full Speed PWM or 0-5V Input Speed Control
      • _x000D_
    • Continuous Duty Motor Speed
      • _x000D_
    • Compact Lightweight Design, Less Than 3 lbs
      • _x000D_
    • Billet Aluminum Construction with Anodize per MIL-A-8625 Type II
      • _x000D_
    • Long Life Multi-Fuel Compatible Fluorosilicone Static Seals
      • _x000D_
    • Accepts Standard or Port Style -8AN Fittings
      • _x000D_
    • Compatible with Most Aftermarket ECUs with PWM Output Frequency
      • _x000D_
    • Compatible from 100 Hz to 5000 Hz
      • _x000D_
    • Fits Universal; Some Adaptation May Be Required
      • _x000D_

    Description

    In-Tank Fuel Pump Kit. The Fuelab In-Tank Twin Screw Brushless Fuel Pump Kit; -8AN; 550 LPH is a high-performance fuel delivery solution designed to support up to 1250 horsepower. It provides efficient and reliable fuel pumping compatible with various fuels including gasoline, diesel, methanol, and ethanol. This kit ensures superior priming and excellent resistance to vapor lock, making it essential for serious automotive performance applications.

    _x000D_

    Construction and Appearance. This pump kit features billet aluminum construction with an anodized finish compliant with MIL-A-8625 Type II standards for durability and corrosion resistance. Weighing less than 3 pounds, it incorporates long-life fluorosilicone static seals, and the compact design is engineered for robustness while maintaining a lightweight profile.

    _x000D_

    Installation. Installation is straightforward for experienced installers, requiring no specialized drilling or modifications. The kit includes a remote mount PWM controller and standard or port style -8AN fittings to facilitate integration with most fuel system setups.

    _x000D_

    Warranty. The pump kit is backed by a limited lifetime warranty, providing confidence in its quality and long-term performance.

    _x000D_

    Application. Designed for universal fitment, some adaptation may be required depending on specific vehicle configurations and fuel system setups.
