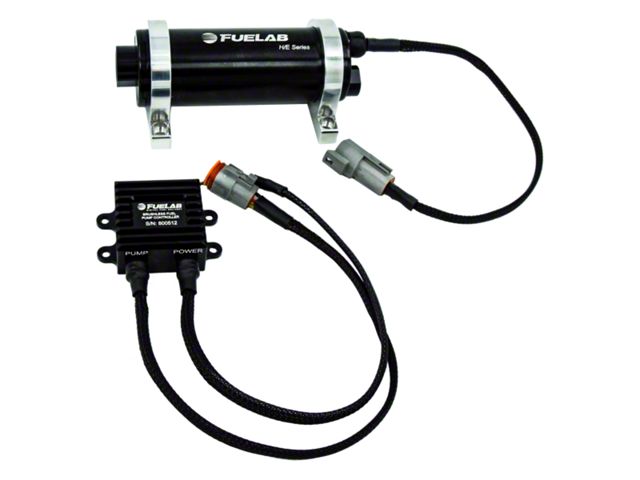

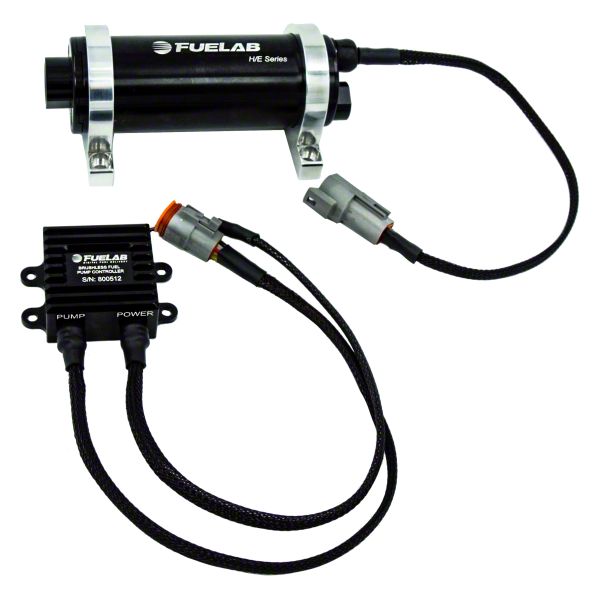

Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 550 LPH (Universal; Some Adaptation May Be Required)

Item EK-57-917537
Product Image
Eckler's no longer carries the Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 550 LPH (Universal; Some Adaptation May Be Required). Please check out Tri-Five Engine for an updated selection.
1 Reviews of Fuelab
Shop Owners Save More! Sign up for our dealer program
Join For FREE

    Product Information

    Features, Description, Q&A

    Features

      _x000D_
    • High Efficiency EFI In-Line Fuel Pump, Rated Up To 1250hp, Street/Strip, Twin Screw DC Brushless Driven Fuel Pump
      • _x000D_
    • Limited Lifetime Warranty
      • _x000D_
    • 550 LPH @ 45 PSI, 125 PSI Max - 13.5V - Rated Up To 1250hp
      • _x000D_
    • Compatible With Gasoline, Diesel, Methanol, And Ethanol
      • _x000D_
    • Twin Screw Rotor Pumping Mechanism
      • _x000D_
    • 125 PSI Max Operating Pressure
      • _x000D_
    • 1250hp Power Support At Continuous Speed
      • _x000D_
    • Higher Efficiency Means Less Current Draw And Less Noise
      • _x000D_
    • Superior Priming Capabilities
      • _x000D_
    • Greater Resistance To Cavitation (Vapor Lock)
      • _x000D_
    • Backed By A Limited Lifetime Warranty
      • _x000D_
    • Lightweight Super-Efficient DC Brushless Motor To Minimize Current Draw
      • _x000D_
    • Powerful High Flux Density Neodymium Rare Earth Magnets
      • _x000D_
    • No Motor Brushes To Wear Out Or Corrode (Low-Sulfur Diesel Compatible)
      • _x000D_
    • Wet Motor Design, No Dynamic Shaft Seals That Can Wear Out
      • _x000D_
    • 12 To 16 Volt Vehicle Electrical System Compatibility
      • _x000D_
    • Model 72004 Pump Controller Included For Full Speed Or PWM Input Speed Control
      • _x000D_
    • Continuous Duty Motor Speed
      • _x000D_
    • Compact, Lightweight Design, Less Than 3 lbs. Overall Length 7.13”, Diameter 2.0”
      • _x000D_
    • Billet Aluminum Construction With Anodize Per MIL-A-8625, Type II
      • _x000D_
    • Includes Two Billet Aluminum Mounting Brackets
      • _x000D_
    • Long Life, Multi-Fuel Compatible Fluorosilicone Static Seals
      • _x000D_
    • Accepts Standard Or Port Style -8AN Fittings
      • _x000D_
    • Fits Universal Applications; Some Adaptation May Be Required
      • _x000D_

    Description

    HIGH-PERFORMANCE FUEL DELIVERY. The Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 550 LPH is engineered to deliver consistent, high-volume fuel flow for engines up to 1250 horsepower. Designed for street and strip use, it ensures precise fuel delivery and reliable performance with gasoline, diesel, methanol, and ethanol compatibility.

    CONSTRUCTION AND APPEARANCE. Machined from billet aluminum and finished with a MIL-A-8625 Type II anodized coating, this pump combines durability with corrosion resistance. Its compact and lightweight profile—under 3 pounds, measuring 7.13 inches long and 2 inches in diameter—allows for easy integration in various vehicle setups.

    INSTALLATION. Installation is simplified by the inclusion of two billet aluminum mounting brackets. The pump fits universal applications, though some adaptation may be necessary depending on the installation environment. No specialized drilling or extensive modifications are typically required.

    WARRANTY. This fuel pump is protected by a limited lifetime warranty, providing long-term reliability and support.

    APPLICATION. Designed to fit universal applications, some adaptation may be needed to suit specific system requirements.

    CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
