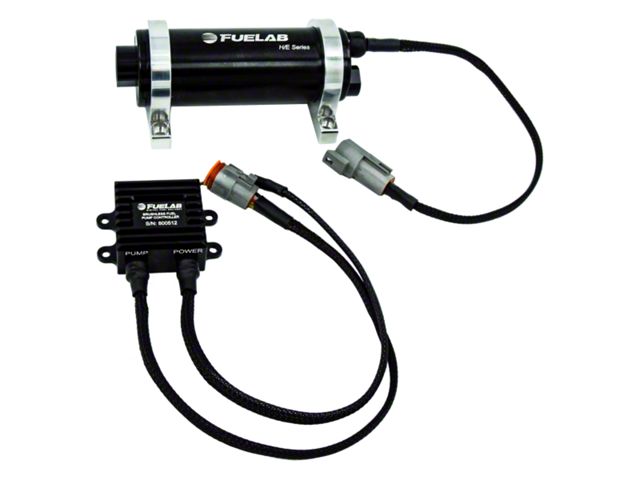

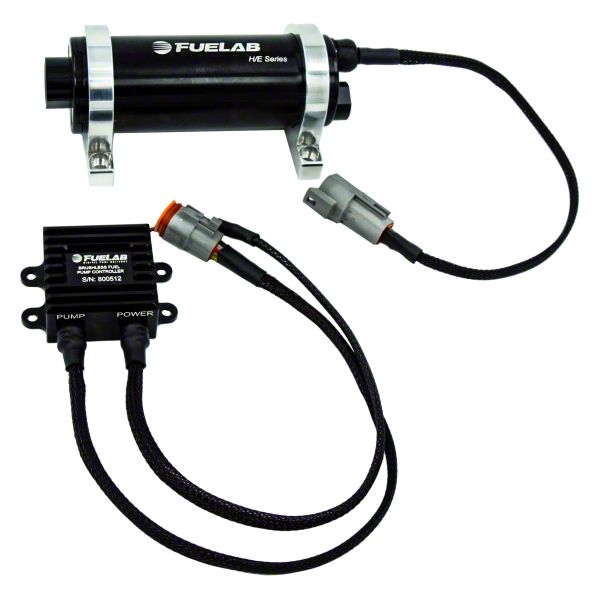

Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 300 LPH (Universal; Some Adaptation May Be Required)
Item EK-57-917535
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- High Efficiency EFI In-Line Fuel Pump Rated Up To 625Hp for Street/Strip Applications with Twin Screw DC Brushless Motor _x000D_
- Limited Lifetime Warranty _x000D_
- 300 LPH @ 45 PSI, 125 PSI Max, 13.5V Rated Up To 625Hp _x000D_
- Compatible With Gasoline, Diesel, Methanol, and Ethanol _x000D_
- Twin Screw Rotor Pumping Mechanism _x000D_
- 125 PSI Max Operating Pressure _x000D_
- 625 Hp Power Support At Continuous Speed _x000D_
- Higher Efficiency Means Less Current Draw and Lower Noise _x000D_
- Superior Priming Capabilities _x000D_
- Greater Resistance To Cavitation and Vapor Lock _x000D_
- Lightweight, Super-Efficient DC Brushless Motor To Minimize Current Draw _x000D_
- Powerful High Flux Density Neodymium Rare Earth Magnets _x000D_
- No Motor Brushes To Wear Out or Corrode; Suitable for Low-Sulfur Diesel _x000D_
- Wet Motor Design With No Dynamic Shaft Seals That Can Wear Out _x000D_
- Compatible With 12 to 16 Volt Vehicle Electrical Systems _x000D_
- Model 72004 Pump Controller Included For Full Speed or PWM Input Speed Control _x000D_
- Continuous Duty Motor Speed _x000D_
- Compact Lightweight Design: Less Than 3 Lbs, Overall Length 7.13", Diameter 2.0" _x000D_
- Billet Aluminum Construction With Anodizing Per MIL-A-8625 Type II _x000D_
- Includes Two Billet Aluminum Mounting Brackets _x000D_
- Long Life Multi-Fuel Compatible Fluorosilicone Static Seals _x000D_
- Accepts Standard or Port Style -8AN Fittings _x000D_
- Fits Universal Applications; Some Adaptation May Be Required _x000D_
Description
High Performance Fuel Pump. The Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump (-8AN, 300 LPH) delivers reliable fuel flow for engines up to 625 horsepower. Designed for street and strip applications, this pump ensures consistent pressurization to meet demanding performance needs. Its brushless DC motor enhances efficiency and durability in various fuel environments including gasoline, diesel, methanol, and ethanol.
_x000D__x000D_Construction and Appearance. Constructed from billet aluminum with anodizing per MIL-A-8625 Type II, the pump is lightweight and compact, weighing less than 3 pounds. It features a robust twin screw rotor pumping mechanism and fluorosilicone static seals for multi-fuel compatibility and long service life. The included mounting brackets are billet aluminum, complementing the precision-engineered design.
_x000D__x000D_Installation. Installation is straightforward with mounting brackets included; the compact dimensions facilitate ease of integration. No special drilling or modifications are typically required when adapting to universal applications, though some adaptation may be necessary depending on the vehicle setup.
_x000D__x000D_Warranty. This pump is backed by a limited lifetime warranty, reflecting confidence in its build quality and performance.
_x000D__x000D_Application. Fits universal applications with some adaptation potentially required to suit specific vehicle configurations.
