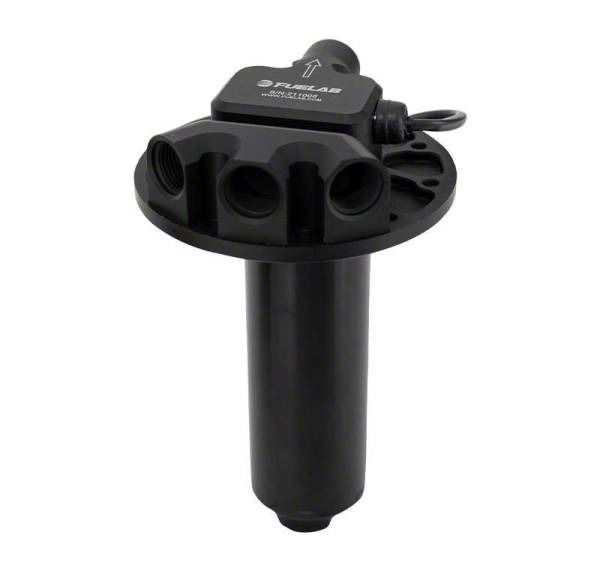

Fuelab H/E Series SAE Plate Mount Brushless Screw Pump; 625 HP; 300 LPH (Universal; Some Adaptation May Be Required)

Item EK-57-917597
Product Image
Eckler's no longer carries the Fuelab H/E Series SAE Plate Mount Brushless Screw Pump; 625 HP; 300 LPH (Universal; Some Adaptation May Be Required). Please check out Tri-Five Engine for an updated selection.
1 Reviews of Fuelab
Shop Owners Save More! Sign up for our dealer program
Join For FREE

    Product Information

    Features, Description, Q&A

    Features

      _x000D_
    • H/E Series 625 HP SAE Plate Mount Brushless Screw Pump, 300 LPH, Speed Controllable
      • _x000D_
    • Limited Lifetime Warranty
      • _x000D_
    • 300 LPH At 45 PSI, 125 PSI Max Operating Pressure
      • _x000D_
    • 13.5V Rated Up To 625 HP Reliable And Efficient
      • _x000D_
    • Compatible With Gasoline, Diesel, Methanol, And Ethanol
      • _x000D_
    • Twin Screw Rotor Pumping Mechanism
      • _x000D_
    • Higher Efficiency Means Less Current Draw And Less Noise
      • _x000D_
    • Superior Priming Capabilities
      • _x000D_
    • Greater Resistance To Cavitation (Vapor Lock)
      • _x000D_
    • 12 To 16 Volt Vehicle Electrical System Compatibility
      • _x000D_
    • Variable Duty Motor Speed
      • _x000D_
    • Lightweight Super-efficient DC Brushless Motor To Minimize Current Draw
      • _x000D_
    • Powerful High Flux Density Neodymium Rare Earth Magnets
      • _x000D_
    • No Motor Brushes To Wear Out Or Corrode (Low-Sulfur Diesel, No Problem)
      • _x000D_
    • Wet Motor Design, No Dynamic Shaft Seals That Can Wear Out
      • _x000D_
    • Compact, Lightweight Design, Less Than 2.5 lbs
      • _x000D_
    • Overall Length 8 Inches, Pump Diameter 2 Inches
      • _x000D_
    • Billet Aluminum Construction With Anodize Per MIL-A-8625 Type II
      • _x000D_
    • Flange Mounted SAE 10-Bolt Pattern For Easy Installation With Fuel Cells Or Fabricated Reservoirs
      • _x000D_
    • Long Life, Multi-fuel Compatible Fluorosilicone Static Seals
      • _x000D_
    • Accepts Standard Or Port Style -8AN Fittings
      • _x000D_
    • Fits Universal; Some Adaptation May Be Required
      • _x000D_

    Description

    Brushless Fuel Pump. The Fuelab H/E Series SAE Plate Mount Brushless Screw Pump; 625 HP; 300 LPH is designed to provide reliable fuel flow for high-performance engines up to 625 horsepower. It delivers a consistent flow rate of 300 liters per hour at 45 PSI and supports a maximum operating pressure of 125 PSI. Compatible with gasoline, diesel, methanol, and ethanol, this pump ensures optimal fuel delivery, enhancing engine performance and efficiency under demanding conditions.

    _x000D__x000D_

    Construction and Appearance. Made from billet aluminum with an anodized finish that meets MIL-A-8625 Type II standards, this pump is both lightweight and durable. It features a compact design weighing less than 2.5 pounds, with an overall length of 8 inches and a 2-inch diameter. The high-quality fluorosilicone static seals provide multi-fuel compatibility and long-lasting durability, while the anodized surface offers corrosion resistance and a professional appearance.

    _x000D__x000D_

    Installation. This pump utilizes a flange-mounted SAE 10-bolt pattern for straightforward installation, compatible with fabricated reservoirs and fuel cells. It generally requires minimal or no custom modifications, simplifying the installation process for most applications.

    _x000D__x000D_

    Warranty. The pump is covered by a limited lifetime warranty, assuring long-term reliability and quality.

    _x000D__x000D_

    Application. Fits universal; some adaptation may be required.
