Flaming River Microsteer Electric Power Steering Conversion Kit (Universal; Some Adaptation May Be Required)
Item EK-48-858559-1
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- Manual to power steering conversion
- Input and output shaft 11/16 inch-36 spline
- Maximum torque output - 32nm/24 lb.ft
- 12-volt systems

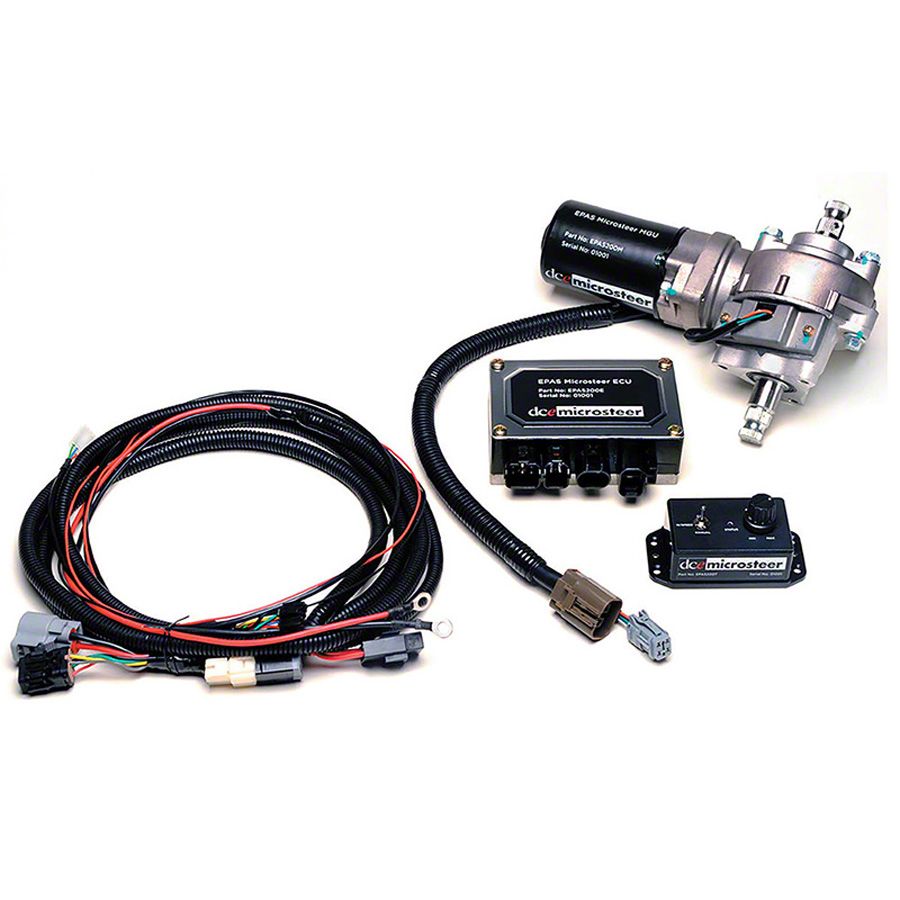

- Kit includes:
- Motor/Gearbox (MGU)
- Electronic Control Unit (ECU)
- Tuning Box
- Wiring Harness
- Maximum Torque Output - 32nm/24 lb.ft
- Requires 3/4" universal joint, not included (PN 44-849012)
Description
Flaming River is now offering Microsteer universal Electric Power Assisted Steering system. It can be easily fitted to virtually any vehicle, without the need to change steering rack or fit a hydraulic system where manual steering currently exists.
The unique Microsteer Tuning Box allows you to adjust the amount of assistance by using a rotary potentiometer or, if you prefer, you can make the system speed sensitive by connecting a wheel speed signal to the Tuning Box. A mode selection switch on the box allows you to choose your preferred method, manual or wheel speed.
If you have no wheel speed sensor on the vehicle, we recommend purchasing a Hall effect type sensor. This is not included in the kit and would need to be purchased separately. The input and output shafts of the Microsteer unit are 11/16”-36.
The Microsteer kit includes:
Motor/Gearbox (MGU)
Electronic Control Unit (ECU)
Tuning Box
Wiring Harness (damage or modification to the harness will result in voided warranty)
Recomended U-Joint/Coupler
11/16"-36 x 3/4" DD FR1783DD (Billet)
11/16"-36 x 3/4" Smooth FR1948 (Coupler)
The unique Microsteer Tuning Box allows you to adjust the amount of assistance by using a rotary potentiometer or, if you prefer, you can make the system speed sensitive by connecting a wheel speed signal to the Tuning Box. A mode selection switch on the box allows you to choose your preferred method, manual or wheel speed.
If you have no wheel speed sensor on the vehicle, we recommend purchasing a Hall effect type sensor. This is not included in the kit and would need to be purchased separately. The input and output shafts of the Microsteer unit are 11/16”-36.
The Microsteer kit includes:
Motor/Gearbox (MGU)
Electronic Control Unit (ECU)
Tuning Box
Wiring Harness (damage or modification to the harness will result in voided warranty)
Recomended U-Joint/Coupler
11/16"-36 x 3/4" DD FR1783DD (Billet)
11/16"-36 x 3/4" Smooth FR1948 (Coupler)
