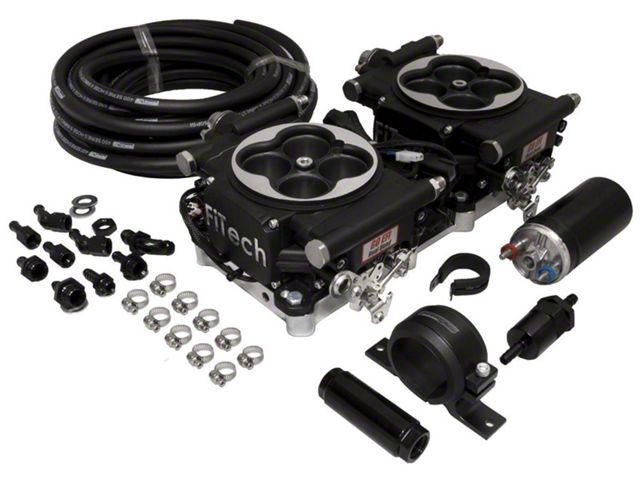

FiTech Fuel Injection Go EFI 2x4 Dual Quad 625HP Self Tuning Fuel Injection Master Kit; Matte Black (Universal; Some Adaptation May Be Required)
Item EK-61-395095-1
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- Maximum Horsepower 625 HP _x000D_
- Injection Style Throttle Body _x000D_
- Timing Control Compatible Yes _x000D_
- Power Adder Compatible No _x000D_
- ECU Included Yes _x000D_
- Fuel Pump Included Yes _x000D_
- Transmission Controller Included No _x000D_
- Metering Style Speed Density Map-N _x000D_
- Intake Manifold Included No _x000D_
- Intake Section Included No _x000D_
- Throttle Body Mounting Flange Dual 4-Barrel Square Bore _x000D_
- Venturi Quantity 8 _x000D_
- Venturi Diameter 43 mm _x000D_
- Airflow Rate 850 cfm _x000D_
- Throttle Body Material Cast Aluminum _x000D_
- Throttle Body Finish Matte Black _x000D_
- Injectors Included Yes _x000D_
- Injector Size 80 lbs/hr _x000D_
- Calibration Module Included Yes _x000D_
- Wiring Harness Included Yes _x000D_
- Oxygen Sensor Included Yes _x000D_
- Fuel Pump Style External Fuel Pump _x000D_
- Fuel Pressure Regulator Included Yes _x000D_
- MAP Sensor Included Yes _x000D_
- IAT Sensor Included Yes _x000D_
- TPS Sensor Included Yes _x000D_
- Fuel Type Alcohol Gasoline Methanol Flex _x000D_
- Weight 33 lbs _x000D_
- Dimensions 25 × 19 × 12 in _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
Description
Self Tuning EFI System. The FiTech Fuel Injection Go EFI 2x4 Dual Quad 625HP Self Tuning Fuel Injection Master Kit in Matte Black is designed to simplify dual quad EFI conversions by providing a comprehensive bolt-on EFI system. It combines a self-tuning engine control unit with dual four-barrel throttle bodies and an inline external fuel pump for efficient fuel delivery and smooth engine management. This kit is ideal for engines requiring up to 625 horsepower, delivering reliable performance without the complexity of traditional setups.
_x000D__x000D_Construction and Appearance. Manufactured from cast aluminum, the unit features dual four-barrel square bore throttle bodies with a matte black finish that combines durability with a sleek, modern look. The kit includes EFI-grade components such as injectors, sensors, and an external fuel pump, all engineered to provide robust operation and resistance to corrosion and wear.
_x000D__x000D_Installation. Installation is straightforward with no drilling required, as the kit is designed to bolt directly onto popular dual quad manifolds, including common aftermarket options. This plug-and-play design simplifies retrofit projects and reduces installation time for experienced enthusiasts and professionals alike.
_x000D__x000D_Warranty. The system is backed by a 3-year limited warranty, providing confidence in product reliability and support.
_x000D__x000D_Application. Fits universal applications with some adaptation required. Suitable for engines producing between 200 to 650 horsepower with dual quad intake manifolds. Designed as a replacement for dual quad carburetors without emission compliance. Not intended for use on pollution-controlled vehicles.
