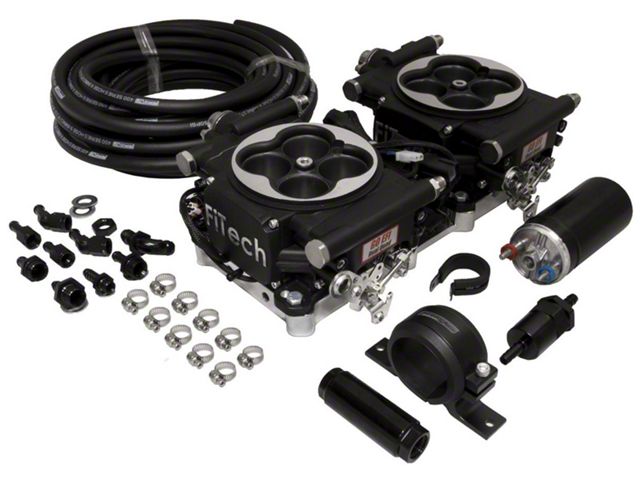

FiTech Fuel Injection Go EFI 2x4 Dual Quad 625HP Self Tuning Fuel Injection Master Kit; Matte Black (Universal; Some Adaptation May Be Required)

Item EK-41-395095-1
Product Image
Eckler's no longer carries the FiTech Fuel Injection Go EFI 2x4 Dual Quad 625HP Self Tuning Fuel Injection Master Kit; Matte Black (Universal; Some Adaptation May Be Required). Please check out Falcon & Comet Electricalfor an updated selection.
Coupon Added
Shop Owners Save More! Sign up for our dealer program
Join For FREE
Loading Indicator

    Product Information

    Features, Description, Q&A

    Features

      _x000D_
    • Dual Quad EFI Made Simple with Go EFI 2×4 625HP Matte Black Finish Self-Tuning System Combined with Inline Fuel Pump Fuel Delivery Kit
      • _x000D_
    • Bolt-On for Most Popular Manifolds Including Edelbrock Line of Dual Quad Manifolds Without Any Adapters
      • _x000D_
    • Natural Aspiration Kits Rated Up to 625HP
      • _x000D_
    • One Throttle Body Controls the ECU, Second Holds Four Additional Injectors and IAC Motor for Idle Stability
      • _x000D_
    • Compatible with Cross Ram and Tunnel Ram Configurations
      • _x000D_
    • Not Suitable for Boost Applications
      • _x000D_
    • System Self-Calibrates for Driving and Weather Conditions
      • _x000D_
    • Touchscreen Controller Allows Quick and Easy On-the-Fly Adjustments
      • _x000D_
    • Included Inline External Fuel Pump Rated at 255 L/Ph Suitable for Engines up to 600HP
      • _x000D_
    • Includes 40 Feet of EFI Grade Fuel Hose for Inlet and Return Lines
      • _x000D_
    • Two Billet Fuel Filters Included with 60-Micron Pre-Filter and 30-Micron Post Filter
      • _x000D_
    • Application for Chevrolet, Pontiac, Ford, Chrysler, Dodge, Plymouth and Similar Engines from 200HP Up to 650HP with Dual Quad Intake Manifold
      • _x000D_
    • Replacement for Dual Quad Carburetors from 200HP Up to 650HP Engines
      • _x000D_
    • Use Normal Air Cleaner Size for Dual Quad Carburetor
      • _x000D_
    • Kit Does Not Include Linkage or Fuel Lines
      • _x000D_
    • Weight 33 Lbs
      • _x000D_
    • Dimensions 25 x 19 x 12 In
      • _x000D_
    • Maximum Horsepower 625 HP
      • _x000D_
    • Throttle Body Injection Style
      • _x000D_
    • Timing Control Compatible
      • _x000D_
    • Power Adders Not Compatible
      • _x000D_
    • ECU Included
      • _x000D_
    • Fuel Pump Included
      • _x000D_
    • Transmission Controller Not Included
      • _x000D_
    • Speed Density (MAP-N) Metering Style
      • _x000D_
    • Intake Manifold Not Included
      • _x000D_
    • Intake Section Not Included
      • _x000D_
    • Dual 4-Barrel Square Bore Throttle Body Mounting Flange
      • _x000D_
    • Eight Venturis with 43 mm Diameter
      • _x000D_
    • Airflow Rate of 850 CFM
      • _x000D_
    • Cast Aluminum Throttle Body Material
      • _x000D_
    • Black Throttle Body Finish
      • _x000D_
    • Injectors Included
      • _x000D_
    • 80 Lbs/Hr Injector Size
      • _x000D_
    • Calibration Module Included
      • _x000D_
    • Wiring Harness Included
      • _x000D_
    • Oxygen Sensor Included
      • _x000D_
    • External Fuel Pump Style
      • _x000D_
    • Fuel Pressure Regulator Included
      • _x000D_
    • MAP Sensor Included
      • _x000D_
    • IAT Sensor Included
      • _x000D_
    • TPS Sensor Included
      • _x000D_
    • Sold as a Kit
      • _x000D_
    • Fuel Type Alcohol, Gasoline, Methanol, Flex
      • _x000D_
    • Fits Universal; Some Adaptation May Be Required
      • _x000D_

    Description

    Self-Tuning EFI System. The FiTech Fuel Injection Go EFI 2x4 Dual Quad 625HP Self-Tuning Fuel Injection Master Kit in Matte Black offers a complete EFI upgrade solution for dual quad carbureted engines. It simplifies conversions with built-in self-tuning capabilities, enhancing performance and fuel efficiency by automatically adjusting to driving conditions and weather changes. This kit combines throttle bodies and fuel delivery in one package suitable for many popular dual quad manifold applications.

    _x000D__x000D_

    Construction and Appearance. Manufactured from cast aluminum with a durable matte black finish, the throttle bodies provide strength and an attractive look. The kit includes high-quality EFI-grade fuel hoses and billet fuel filters for durability and reliability. Injectors, sensors, and the included fuel pump reflect professional-grade manufacturing ensuring consistent performance.

    _x000D__x000D_

    Installation. Engineered as a bolt-on conversion for common dual quad manifolds without requiring adapters or manifold modifications, installation is straightforward for experienced users. No drilling is needed when installing on compatible dual quad manifolds, facilitating an easy upgrade process.

    _x000D__x000D_

    Warranty. The system is backed by a three-year limited warranty, demonstrating confidence in the materials and workmanship.

    _x000D__x000D_

    Application. Designed to fit most dual quad carbureted engines ranging from 200 to 650 horsepower with some adaptation potentially required based on specific vehicles and setups.
