FiTech Fuel Injection Go EFI 2x4 Power Adder 1200HP Self Tuning Fuel Injection System; Matte Black (Universal; Some Adaptation May Be Required)
Item EK-41-394703-1
Coupon Added
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- _x000D_
- Rated For Engines From 400hp Thru 1200hp _x000D_
- Designed For 671 And 871 Roots Superchargers Or Naturally Aspirated Dual Quad Setups _x000D_
- Compatible With Popular Dual Quad And Tunnel Ram Intake Manifolds Including Edelbrock Dual Quad Manifolds _x000D_
- Single Throttle Body With Integrated Controller Plus Second Throttle Body With Four Additional Injectors _x000D_
- Suitable For Chevrolet, Pontiac, Ford, Chrysler, Dodge, Plymouth, And Others _x000D_
- Replacement For Any Dual Quad Carburetors On Engines Producing 250hp To 1200hp _x000D_
- Uses The Same Size Air Cleaner As Dual Quad Carburetors _x000D_
- 2.5 BAR Internal MAP Sensor Included _x000D_
- Eight Flow Matched Injectors _x000D_
- Dual Fan Control Capability _x000D_
- Compatible With Blower And Turbo Applications _x000D_
- Nitrous Support And Boost/Nitrous Timing Control _x000D_
- Integrated Ignition Timing Control _x000D_
- Built-In Fuel Pressure Regulator _x000D_
- Air/Fuel Ratio Tuning Capability _x000D_
- Pro-Tuning Compatible Laptop Software Included _x000D_
- Matte Black Finish _x000D_
- Includes Two Die-Cast Throttle Bodies _x000D_
- Includes O2 Bung Kit, Hand-Held Controller, CTS Sensor, And Associated Cables _x000D_
- Includes O2 Sensor And Gasket Kit _x000D_
- Maximum Horsepower Capacity Of 1200hp _x000D_
- Throttle Body Injection Style _x000D_
- Compatible With Timing Control Systems _x000D_
- Supports Boost/Nitrous Power Adders _x000D_
- ECU Included _x000D_
- Does Not Include Fuel Pump Or Transmission Controller _x000D_
- Speed Density (Map-N) Metering Style _x000D_
- Throttle Body Mounting Flange Is Dual 4-Barrel Square Bore _x000D_
- Venturi Quantity Of Eight With 43mm Diameter _x000D_
- Air Flow Rated At 1700 CFM _x000D_
- Cast Aluminum Throttle Body Material _x000D_
- Satin Black Finish On Throttle Bodies _x000D_
- Includes Injectors Sized At 80 lbs/hr _x000D_
- Includes Calibration Module And Wiring Harness _x000D_
- Includes Oxygen, MAP, IAT, And TPS Sensors _x000D_
- Sold Individually _x000D_
- Compatible With Alcohol, Gasoline, Methanol, And Flex Fuel _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
Description
Self-Tuning Fuel Injection System. The FiTech Fuel Injection Go EFI 2x4 Power Adder 1200HP Self Tuning Fuel Injection System; Matte Black is engineered to deliver smooth, efficient fuel delivery for high-performance engines ranging from 400 to 1200 horsepower. It replaces traditional dual quad carburetors with fully electronic throttle body injection, enhancing power management for supercharged, turbocharged, or naturally aspirated engines. This system provides precise control, improved throttle response, and extensive tuning flexibility for enthusiasts.
_x000D__x000D_Construction and Appearance. Crafted from cast aluminum, the throttle bodies feature a durable satin black finish that resists corrosion and enhances engine bay aesthetics. The kit includes eight flow-matched injectors and a 2.5 BAR internal MAP sensor integrated into a smart design that supports boost and nitrous setups. Its dual 4-barrel square bore flange and matte finish combine functional performance with a clean, purposeful look.
_x000D__x000D_Installation. Designed for straightforward bolt-on installation onto popular dual quad and tunnel ram manifolds without the need for drilling or additional adapters. This makes the system suitable for both professional installers and experienced enthusiasts seeking a clean, factory-style fit.
_x000D__x000D_Warranty. Covered by a 3-year limited warranty for confidence and long-term reliability.
_x000D__x000D_Application. Fits universal applications; some adaptation may be required to integrate with specific manifold configurations or custom setups.
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box

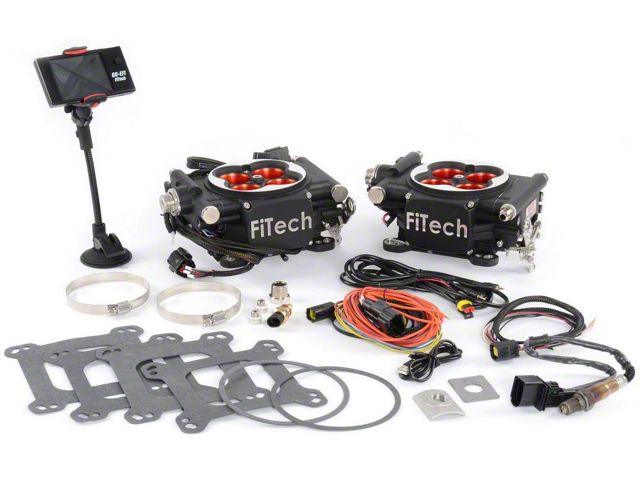

What's in the Box
- (2) Die-cast throttle body.
- (1) O2 bung kit.
- (1) Hand-held controller.
- (1) CTS sensor.
- (1) Hand-held controller cable.
- (1) CTS adapter.
- (1) Windshield mount.
- (1) Mini USB cable.
- (1) 4+2-Pin Connector.
- (2) Return plug.
- (1) O2 sensor.
- (1) Gasket kit.
