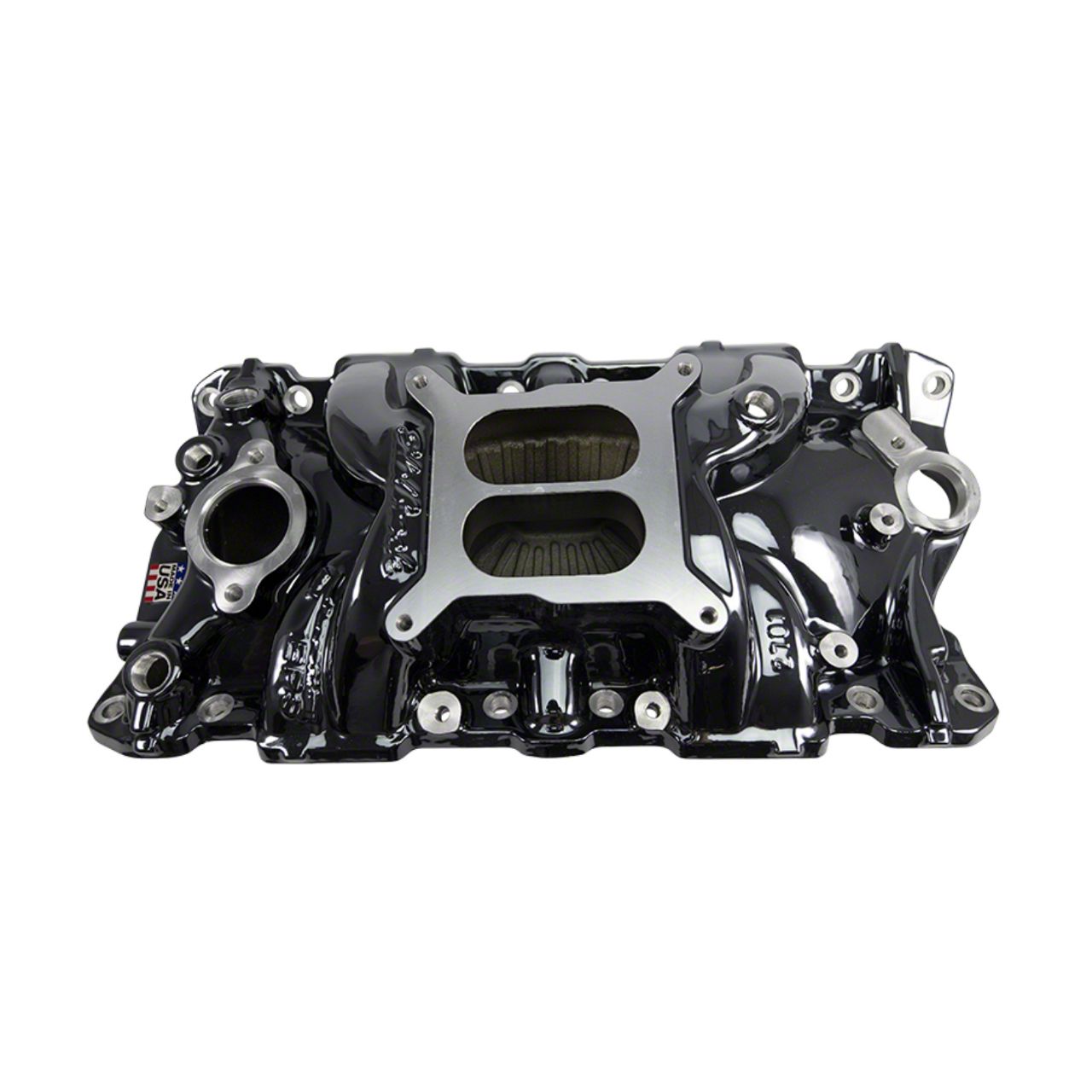

Edelbrock Performer EPS Intake Manifold; Black Plasma Finish (60-86 Small Block V8 Blazer, C/K10, Jimmy)

Edelbrock part #2701-BP Performer EPS intake manifold is for 86 and earlier 262-400 cubic-inch Chevys. Design is optimized for Edelbrock EPS or AVS2 carburetors, although any 4150 style carburetor will fit. Edelbrock's Patented dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range and gives excellent throttle response. The Edelbrock Performer EPS intake manifold has a runner design that's tuned for peak torque at 3500 rpm on a 350-inch engine making it ideal for power from off-idle to 5500 rpm. Dyno tests showed gains of 5 hp and 9 ft-lbs. of torque over the Edelbrock Performer manifold #2101 on a 350 Chevy. This PN 2701-BP version comes with a beautiful reflective Black Plasma finish that is durable and easy to maintain. The Plasma finishes are applied by a fully automated 7 stage prewash and 4 stage finish. A durable clear powder coat finishes the process.** Will not fit under stock Corvette hood! **

Installation NotesLManifold ht: A-3.74", B-4.80"; Carb pad height: 4.27"; Carb recommendations: Edelbrock AVS2 or Performer Series 500-650 cfm; Port exit dimensions: 1.15" x 1.87".; Recommended intake gasket: Edelbrock #71.; Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.; Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.; NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal.; DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread.; Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.; Will not fit under stock Corvette hood.; Even though manifolds are compatible with EGR systems, this does not mean they are legal for use on emissions controlled vehicles. Check local laws for legality.; Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage.

Application Summary: Chevrolet: Small-Block Gen I:265 (4.3L)/267 (4.4L)/283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L)
