LED Digital Gauge Panel; Red (66-77 Bronco)
Item EK-51-900267
$0.00
Our Price
$411.95
Market Price $473.99 You Save 13% ($62.04) Up to 10% off for Military & First Responders! See DetailsWill this fit your Vehicle?
Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Description, Q&A
Description

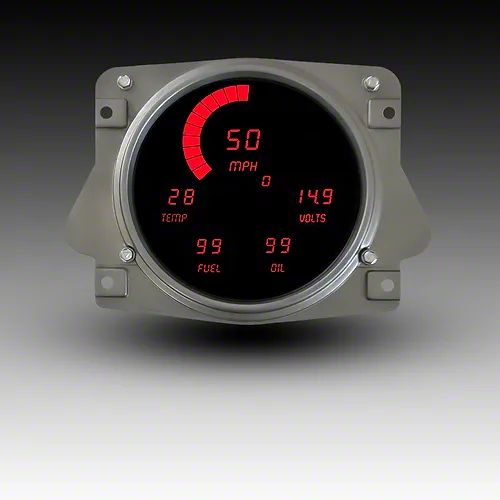

1966-1977 Ford Bronco LED Digital Gauge Panel - DP1020
Upgrade your Ford Bronco with a new 66-77 Ford Bronco LED Digital Replacement Gauge Panel by Intellitronix. Complete with direct fit printed circuit boards, custom fit "smoked" plexiglass faceplate, universal temperature, oil pressure, and speedometer sending units with sender and sensor for vehicles without electronic transmission or cruise control, and instructions for installation.
Speedometer reads up to 255 MPH and features odometer, trip meter, one-button calibration, regardless of tire size, gear ratio, or transmission, and 0-60 time, 1⁄4 mile elapse time, and high speed recall, all with the push of a button. The speedometer can be used with electronic cruise control senders or use our S9024 universal speedometer sending unit included in the kit, if your vehicle is not equipped with a functional cruise control.
Tachometer (built into the ODO) features a custom-designed LED bargraph with a microprocessor-controlled unit and peak rpm memory recall, automatic night dimming. It has a 0-9900 read out. It works on 1-2-4-6-8-10-12-cylinder engines.
Water Temperature reads 50 - 250°F range and includes sending unit. Please specify bushing size for sender as we normally send a 1/2 inch one, but we can send a 3/8 inch one instead, upon request. Make a note on your order at check-out regarding your preferred bushing size.
Oil Pressure displays 0-99 PSI range and includes the oil pressure sending unit.
Voltmeter reads 7.0-18.0 volts range and no sending unit is required.
Fuel Level is programable to 4 different ohms ranges: 73-10 ohm, 16-158 ohm, 22-145 ohm and
240-33 ohm.
Easy Install, Lifetime Warranty, Great Price, & Gauges for your very special classic vehicle.
BEZEL NOT INCLUDED
FEATURES:
AVAILABLE COLORS: White, Red, Blue, Teal, and Green
SPEEDOMETER READING: Order your speedometer in either MPH or KPH
ACCESSORIES: All required sending and sensor units are included.
Upgrade your Ford Bronco with a new 66-77 Ford Bronco LED Digital Replacement Gauge Panel by Intellitronix. Complete with direct fit printed circuit boards, custom fit "smoked" plexiglass faceplate, universal temperature, oil pressure, and speedometer sending units with sender and sensor for vehicles without electronic transmission or cruise control, and instructions for installation.
Speedometer reads up to 255 MPH and features odometer, trip meter, one-button calibration, regardless of tire size, gear ratio, or transmission, and 0-60 time, 1⁄4 mile elapse time, and high speed recall, all with the push of a button. The speedometer can be used with electronic cruise control senders or use our S9024 universal speedometer sending unit included in the kit, if your vehicle is not equipped with a functional cruise control.
Tachometer (built into the ODO) features a custom-designed LED bargraph with a microprocessor-controlled unit and peak rpm memory recall, automatic night dimming. It has a 0-9900 read out. It works on 1-2-4-6-8-10-12-cylinder engines.
Water Temperature reads 50 - 250°F range and includes sending unit. Please specify bushing size for sender as we normally send a 1/2 inch one, but we can send a 3/8 inch one instead, upon request. Make a note on your order at check-out regarding your preferred bushing size.
Oil Pressure displays 0-99 PSI range and includes the oil pressure sending unit.
Voltmeter reads 7.0-18.0 volts range and no sending unit is required.
Fuel Level is programable to 4 different ohms ranges: 73-10 ohm, 16-158 ohm, 22-145 ohm and
240-33 ohm.
Easy Install, Lifetime Warranty, Great Price, & Gauges for your very special classic vehicle.
BEZEL NOT INCLUDED
FEATURES:
AVAILABLE COLORS: White, Red, Blue, Teal, and Green
SPEEDOMETER READING: Order your speedometer in either MPH or KPH
ACCESSORIES: All required sending and sensor units are included.
Fitment:
- 1966 Ford Bronco
- 1967 Ford Bronco
- 1968 Ford Bronco
- 1969 Ford Bronco
- 1970 Ford Bronco
- 1971 Ford Bronco
- 1972 Ford Bronco
- 1973 Ford Bronco
- 1974 Ford Bronco
- 1975 Ford Bronco
- 1976 Ford Bronco
- 1977 Ford Bronco
