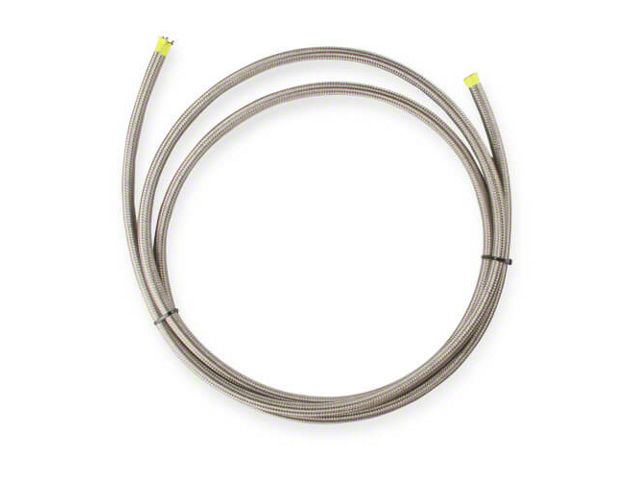

Earls -8 Auto-Flex Fuel Hose 3 Feet (55-57 Chevy Bel Air; 55-57 Chevy 150; 55-57 Chevy 210; 55-57 Chevy Nomad)Find parts that fit my vehicle

Item EK-57-878568-1
1 Reviews of Earl's
Our Price

$63.95

Military, Medical & First Responders $3.20 Available in EK Cash Rewards.
Confirm Eligibility

Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

      • Tough Stainless Steel Wire Braid-Protected Synthetic Rubber Hose
      • Easy To Cut And Assemble
      • Accepts Swivel-Seal, Auto Fit, Auto-Crimp & Econ-O-Fit Hose Ends
      • Hose Length 3 Feet
      • Hose Size 8 AN
      • Recommended Temperature Range -40 To 350 Degrees F
      • Maximum Operating Pressure 1000 PSI
      • Continuous Use Temperature Rating -40 To +350 Degrees F
      • Partial Coverage Textile Inner Braid Built Into Liner
      • Full Coverage Stainless Steel Braid Bonded To Reinforced Liner
      • H.T.E Highest Quality Synthetic Neoprene Liner
      • Compatible With Automatic Transmission Fluid, Coolant, Oil, Race Gas
      • Not Submersible In Fuel
      • Minimum Bend Radius 3.5 Inches
      • Inside Diameter Range .415 To .471 Inches
      • Outside Diameter Range .629 To .672 Inches
      • Maximum Vacuum 27 In Hg
      • Compatible Hose Ends Include Auto-Crimp, Auto-Fit, Econ-O-Fit, Swivel-Seal
      • Fluid Type Ratings Range From 1 To 5 Out Of 5 Depending On Fluid
      • Emission Code 5 - Legal For Emissions Controlled And Non-Controlled Vehicles
      • Fits 55-57 Chevy Bel Air; 55-57 Chevy 150; 55-57 Chevy 210; 55-57 Chevy Nomad

      Description

      Premium Fuel Hose. The Earl's 8 Auto Flex Fuel Hose provides a durable and flexible solution for fuel, coolant, oil, and race gas delivery systems. Designed for use with Earl’s specific hose ends, it ensures reliable fluid transfer while withstanding high temperatures and pressures. This hose is essential for maintaining safe and efficient fuel system performance in demanding automotive applications.

      Construction and Appearance. This hose features a synthetic neoprene liner known as H.T.E, reinforced with a partial textile braid embedded in the liner and covered by a full stainless steel wire braid. Manufactured in the USA, the hose combines high-quality materials to deliver excellent durability and heat resistance, with a smooth outer stainless steel braided finish.

      Installation. Installation is straightforward with no drilling required, and the hose is compatible with Earl’s Auto-Crimp, Auto-Fit, Swivel-Seal, and Econ-O-Fit hose ends. It is designed to be easy to cut and assemble, making it suitable for custom lengths and configurations.

      Application. This hose is commonly used for fuel and fluid delivery systems and is compatible with various vehicle applications including the 55-57 Chevy Bel Air, 55-57 Chevy 150, 55-57 Chevy 210, and 55-57 Chevy Nomad.
