Dakota Digital RTX Instrument Gauge System (67-68 Mustang)Find parts that fit my vehicle
Item EK-44-926211
New
Our Price
$1,676.75
Military, Medical & First Responders
$83.84 Available in EK Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- Speedometer 0-120 MPH; Optional Metric Version 0-200 KMH
- Tachometer 0-8,000 RPM
- Oil Pressure 0-80 PSI
- Water Temperature 100-260ºF; Optional Metric Version 40-120ºC
- Fuel Level E 1/4 1/2 3/4 F
- Voltmeter 9-17 VDC
- Odometer One Time User Settable Million Mile
- Dual A B Trip Meter 0-9,999.9
- Clock 12 Hour
- Estimated Range Miles To Empty
- 0-60 MPH Timer; 0-100 KMH
- 1/4 And 1/8 Mile Time
- 1/4 And 1/8 Mile End Speed Trap Speed
- High Speed Recall
- High RPM Recall
- Turn Signals Left Right
- High Beam
- Check Engine
- Parking Brake
- Cruise Control On And Engaged
- Gear Position Optional GSS-3000 Sensor Required
- 4 X 4 When Vehicle Is Equipped
- Wait To Start When Vehicle Is Equipped
- Two Auxiliary Input Indicators With User-Programmable Labels
- Red LED Indicator Warning Condition Except Speedometer
- Over 30 User-Selectable Color Options For Needle Sweep And TFT Display
- Daytime And Nighttime Brightness Controlled Through Setup Menu
- 12 Factory Preset Color Themes
- Full LED RGB Backlighting
- Includes Water Temperature And Oil Pressure Sensors With 10 Ft Harnesses
- Cable Driven Speed Sensor Generator With 10 Ft Harness
- Includes Multiple Bushing Sizes For Installation
- Control Box Dimensions 5.5 X 3.5 X 1 Inches
- Pushbutton Control Included With Two-Sided Rocker Switch
- Mobile App Configuration Available For Android And Apple Devices
- Speedometer And Fuel Level Calibration Through Pushbutton Or Bluetooth App
- Fits 67-68 Mustang
Description

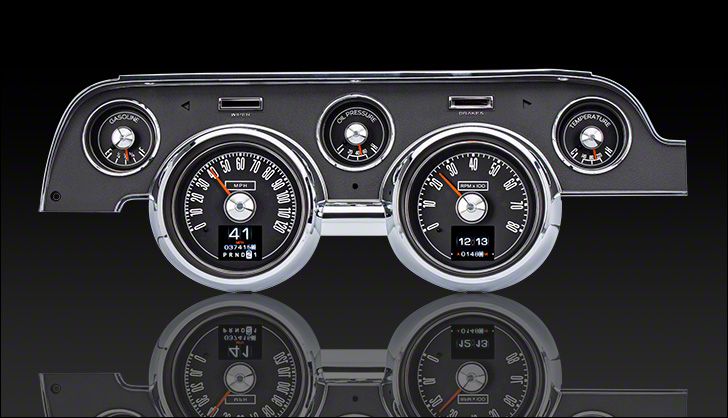

Give your Mustang the instrumentation it deserves! This bolt-in package was designed to work with a stock or reproduction bezel, bringing 21st Century tech and features while looking showroom fresh. Twin TFT displays provide the driver access to system voltage reading, along with nearly any other parameter desired!
The RTX series is the latest from Dakota Digital, focused on retaining that stock look without sacrificing the late-model features you love. Every effort has been put forth to incorporate OEM design elements regarding the layout, face styling and indicators. A casual glance may dismiss these as original equipment, but once you hit the switch and the LED backlighting comes on in your favorite color scheme, all doubts will be removed.
Starting from scratch, CNC machined housings are filled with electronics designed and built in-house, helping Dakota Digital once again raise the bar for aftermarket instrumentation. The high-definition TFT message centers can be fully configured to display just about any piece of information needed. As you’ve come to expect from Dakota Digital, the RTX series utilizes a central control box to make installation and setup as easy as possible. Click the tabs below for a more in-depth look at the RTX series!
*Bezel not included, shown for visual/presentation purposes.
System uses OEM or reproduction style bezel.
The RTX series is the latest from Dakota Digital, focused on retaining that stock look without sacrificing the late-model features you love. Every effort has been put forth to incorporate OEM design elements regarding the layout, face styling and indicators. A casual glance may dismiss these as original equipment, but once you hit the switch and the LED backlighting comes on in your favorite color scheme, all doubts will be removed.
Starting from scratch, CNC machined housings are filled with electronics designed and built in-house, helping Dakota Digital once again raise the bar for aftermarket instrumentation. The high-definition TFT message centers can be fully configured to display just about any piece of information needed. As you’ve come to expect from Dakota Digital, the RTX series utilizes a central control box to make installation and setup as easy as possible. Click the tabs below for a more in-depth look at the RTX series!
*Bezel not included, shown for visual/presentation purposes.
System uses OEM or reproduction style bezel.
Dakota Digital RTX-67F-MUS-X
