Dakota Digital RTX Instrument Gauge System (65-66 Mustang)Find parts that fit my vehicle
Item EK-44-926210
Our Price
$1,676.75
Military, Medical & First Responders
$83.84 Available in EK Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- 0-140 MPH Speedometer with Optional Metric Version 0-220 Km/H
- 0-80 Psi Oil Pressure Gauge
- 100-260°F Water Temperature Gauge with Optional Metric Version 40-120°C
- Fuel Level Indicator Displaying E, 1/4, 1/2, 3/4, F
- Voltmeter with 9-17 Vdc Range
- 0-8,000 RPM Tachometer Digital Bar Graph
- Odometer with One-Time User-Settable Million Mile
- Dual A/B Trip Meter Ranging from 0-9,999.9
- 12-Hour Clock
- Estimated Range and Miles to Empty
- Performance Meters Including 0-60 MPH Timer, 1/4 and 1/8 Mile Time and End Speed, High-Speed and High-RPM Recall
- Built-In Indicators for Turn Signals, High Beam, Check Engine, Parking Brake, Cruise Control, Gear Position, 4x4, Wait to Start, and Auxiliary Inputs
- Each Analog Gauge Sweep Contains a Red LED Warning Indicator Except Speedometer
- Over 30 User-Selectable Color Options for Needles, Sweeps, and Digital Display
- Daytime and Nighttime Brightness Adjustable Through Setup Menu
- 12 Factory Preset Color Themes Available
- Full LED Backlighting with RGB Capabilities
- Included Sensors for Water Temperature, Oil Pressure, Speed Sensor, and Various Bushings
- Pushbutton Control with Two-Sided Rocker Switch Included
- Mobile App for Configuration and Real-Time Gauge Readouts Compatible with Android and Apple Devices
- Calibration Handled via Pushbutton or Bluetooth App, with Speedometer and Fuel Level Typically Calibrated During Setup
- Control Box Dimensions: 5.5" x 3.5" x 1"
- Fits 1965-66 Mustang
Description

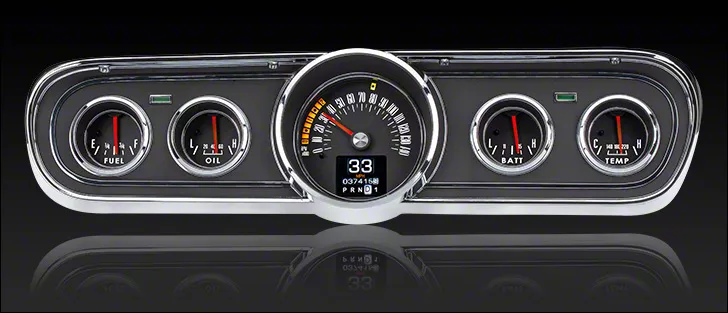

Advanced Instrumentation System. The Dakota Digital RTX Instrument Gauge System replaces classic analog gauges with a modern, high-definition digital instrument package that maintains the original look while providing advanced features. It delivers critical vehicle data through a vivid TFT message center combined with analog-style gauges, enhancing both functionality and aesthetics. This system enables comprehensive monitoring and customizable displays essential for everyday driving and performance tracking.
Construction and Appearance. The system features CNC-machined housings paired with precision-engineered electronics developed in-house for superior reliability and aesthetics. Full LED backlighting with customizable RGB colors allows users to tailor needle, sweep, and display colors for optimal daytime and nighttime visibility. The design closely mirrors OEM styling to preserve the factory appearance while seamlessly integrating modern technology.
Installation. Installation is straightforward, designed to fit directly into the stock or reproduction bezel without modifications. No drilling or extensive dash alterations are required, making it accessible to both enthusiasts and professional installers.
Application. This instrument system is specifically designed to fit 1965 and 1966 Ford Mustang GT and Pony interiors, retaining factory design elements for a perfect match and authentic appearance.
Dakota Digital RTX-65F-MUS-X
