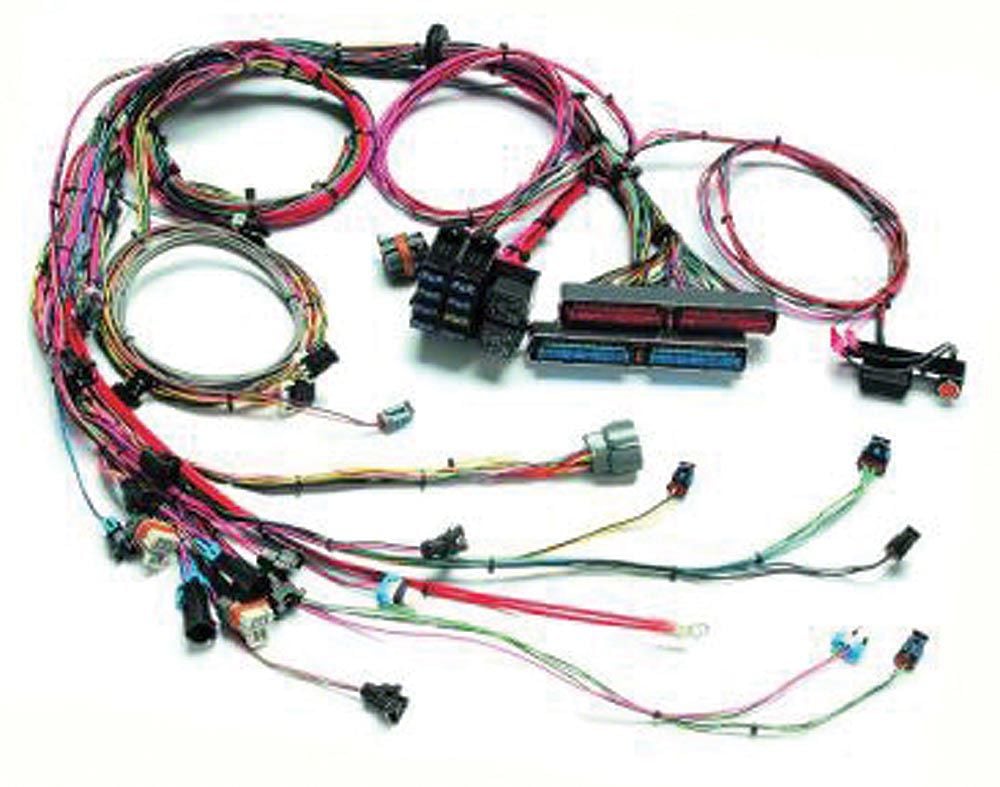

Wiring Harness, 2005-2006 LS2, Painless (55-57 Chevy Bel Air; 55-57 Chevy 150; 55-57 Chevy 210; 55-57 Chevy Nomad)Find parts that fit my vehicle

Item EK-57-250998-1
Our Price

$929.99

Military, Medical & First Responders $46.50 Available in EK Cash Rewards.
Confirm Eligibility

Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

      • For Installation Of A 24X Crank Throttle By Wire LS2 Engine
      • Requires Use Of An LS1/LS6 ECM Service #12200411
      • Includes A New Engine Harness & All OEM Sensor Connectors & Circuits
      • Does Not Include Any Emissions Sensor Connections
      • Donor Cars 2005 Corvette, 2005-2006 GTO, 2006 SSR & GMP Crate Engines
      • Compatible With LS2 Engine Codes ZJA, ZJB, 5MC, YTA & 6MC
      • Includes 8-Circuit Fuseblock With Ignition Relays & Factory Style Fuel Pump Relay Connection
      • No Need To Use Junkyard Wiring
      • Best When Used With P/N 22-150 Or 22-151 Main Harness
      • View Video Here

      Description

      This harness is designed for the 1999-2006 4.8L, 5.3L, 6.0L mechanical throttle body engines using an LS1 / LS6 PCM with a 4L60E, 4L65E, 4L70E, 4L80E, 4L85E, or manual transmission. 2003-2006 Engines will require a mechanical throttle body to be installed. 2003-2006 engines which were originally flex fuel will also require Delphi Multec 2 (factory truck style) injectors to be installed. Included with this harness is a 10 circuit weatherproof fuse block and GM color coded wires with labels for easy installation. This standard length harness allows four feet from the back of the intake manifold to where the fuse block and ECM mount. Perfect for those that plan to mount these components under the dash or in the glove box. Please note that this harness does not support Flex Fuel USCAR Injectors.The Fuse Block Protects The Following Circuits: Air Pump & Air Pump Solenoid, Canister Purge, Canister Vent, Transmission, & Park Neutral Position Switch, Driver Side Injectors and Coils, Dual 40 amp Ignition Relays, Fuel Pump, Heated O2 Sensors, Mass Airflow Sensor, & Brake Switch, Pass Side Injectors and Coils, ECM B+ & DLC B+, ECM IGN and Malfunction Indicator Lamp. This harness includes connections for the following components: A/C Request, Air Pump, Air Pump Relay, Air Pump Solenoid, Alternator , Brake Switch, Cam Position Sensor, Canister Purge, Canister Vent, Crank Position Sensor, Data Link Connector , Driver/Pass Front O2 Sensors, EGR Valve, Engine Coolant Temperature, Fan #1 Relay Ground ECM Activation, Fan #2 Relay Ground ECM Activation, Fuel Pump, Fuel Pump Relay, Fuel Pump Test , Grounds , Idle Air Control, Ignition Coils, Ignition Switch Signal, Injectors, Input Speed Sensor, Knock Sensors, Malfunction Indicator Lamp, MAP Sensor, Mass Airflow Sensor & Intake Air Temperature Sensor, Output Speed Sensor, Park/Neutral Switch, ECM, Reverse Lights, Starter, Starter Relay, Tachometer, Throttle Position Sensor, Transmission VSS Output for Speedometer.
