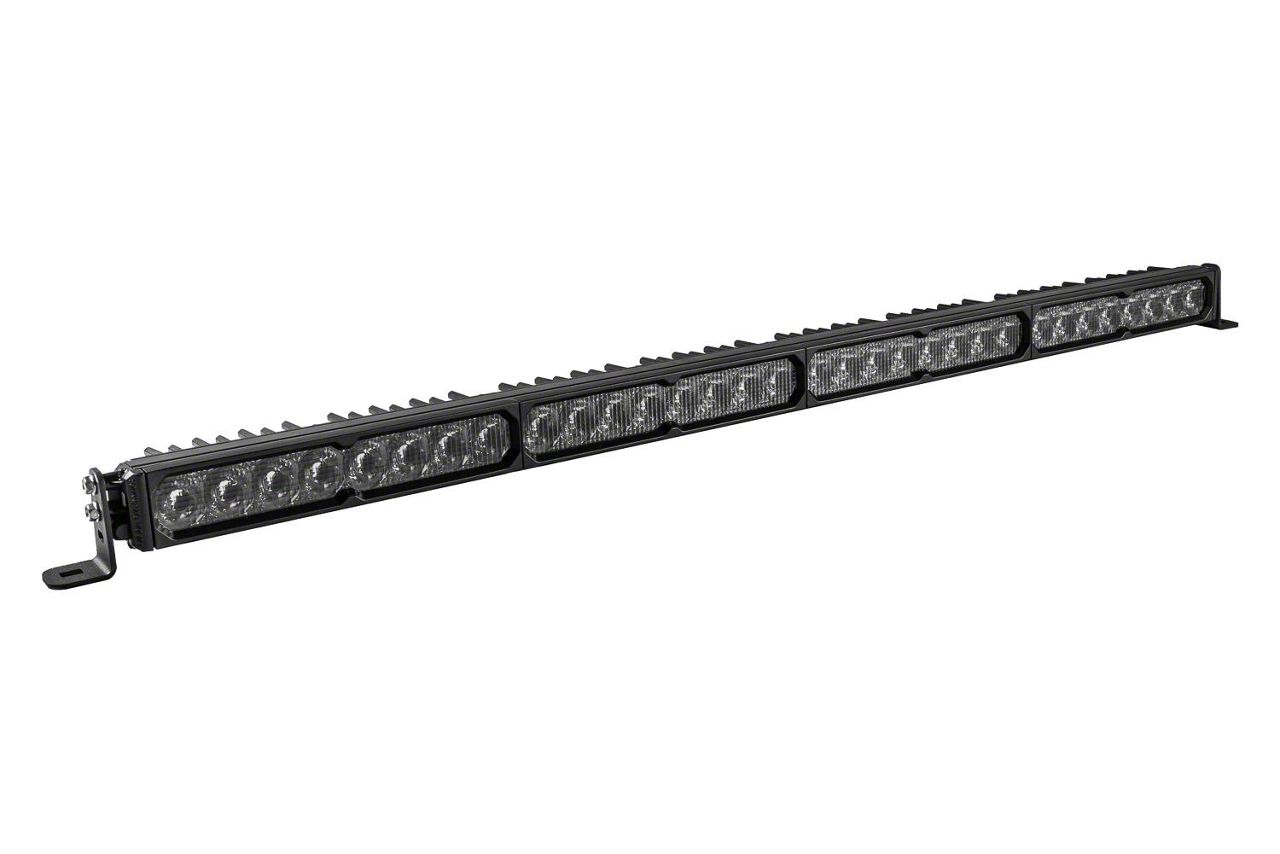

SS40 Sport Single Row LED Light Bar with Amber Backlight; White Driving (Universal; Some Adaptation May Be Required)

Features
Patented TIR Optics for maximum efficiency and output.
Upgraded beam patterns engineered for real-world performance.
Modern welcome sequence and selectable backlight color with SmartSelect technology.
Now available in Sport and Pro power levels.
Durable aluminum housing with ASTM-standard powdercoat finish.
Built for the extreme with IP69K waterproof rating.
Limited Lifetime Warranty.
Made in USA with Global Materials.

Overview
See further and go faster with the all-new SS40 LED Light Bar! With higher light output, modern optics, and greater intensity than anything else on the market — plus advanced control and unmatched configurability — the new Stage Series Lightbars are the most capable lightbars available today.

Designed for Performance
Each Stage Series Light Bar has been engineered from the ground up with the most modern optical, thermal, and circuit board technologies to provide more output than any other light bar on the market. Unlike reflectors, TIR optics capture and focus nearly all of the light output, shining it only where you need it, without glare or wasted light.

Thanks to copper circuit boards on the high-power models, thermal transfer materials, and optimized heatsinks, these lightbars effectively dissipate heat from the LED chips, allowing them to run at maximum power, producing serious light output.

Built for Every Application
Each beam pattern has been fine-tuned for real-world conditions to perform even better than before. No matter the application, there is a Stage Series Lightbar for you!

Combo/Driving Pattern: The Combo/Driving pattern blends distance and width into one balanced beam pattern. It uses dozens of carefully-designed pillow optics to produce a blended, even output that measures 60x30 degrees, giving you throw downrange while still providing ample foreground illumination.
SAE Driving Pattern: Perfect for supplementing high beams or general illumination. It provides extra punch and distance ahead, with a spread of 20x12 degrees.
Flood Pattern: Provides uniform, even illumination with a broad 100x80-degree spread. It is ideal for low-speed applications like backing up, lighting work areas, or campsites.
Spot Pattern: A highly focused 8x8-degree beam of light for high-speed racing or long-distance precision illumination.

SmartSelect Technology
The SS40 LED Light Bar is equipped with SmartSelect technology, which provides advanced control and configurability. The dual-function main beam allows you to toggle between the inner sections only, outer sections only, or the full bar, all without extra wiring or separate switches. This feature is perfect for varied terrain: use the outer sections for wide coverage at low speeds, or switch to the inner sections for greater downrange visibility at high speeds.

Multicolor Backlight
The SmartSelect model features a multicolor backlight with your choice of eight colors, providing unique accent lighting. The amber backlight is powered by a dedicated amber chip for true amber output, part of a full RGBWA series that produces both true white and amber colors. It perfectly matches the color of Diode Dynamics’ smaller LED pods. Selecting your backlight color is easy — simply alternate the power on and off!

Dynamic Startup Sequence
When powered on, the selected backlight color (except amber) will sequence back and forth across the entire bar before fully illuminating, giving a premium appearance.

Standard Backlight Option
The Standard model features an amber-only backlight without the startup sequence, for a high-performance lightbar built to perform and last.

Choose Your Power Level
The SS40 LED Light Bar is available in two different power levels:Sport Model: Offers great performance at a more affordable price.Pro Model: A high-power option with an extra boost in output and intensity.

Swappable Optics and Colors
